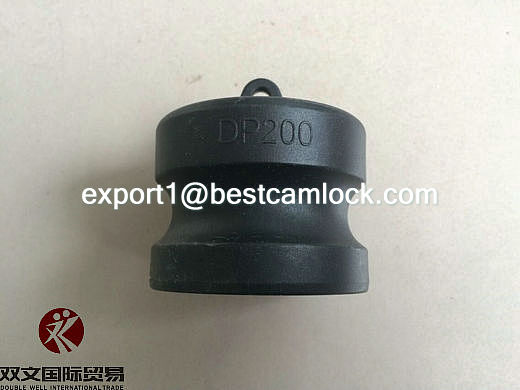

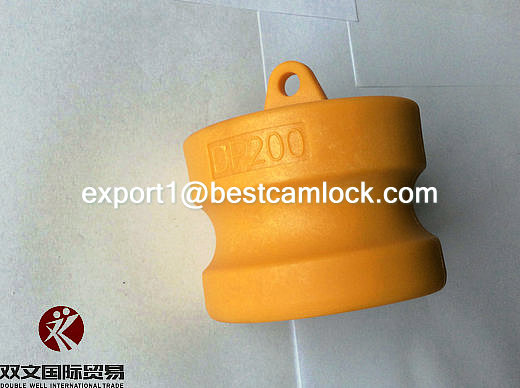

Polypropylene Camlock Fitting
This cam and groove quick coupling is constructed from lightweight polypropylene. It offers good abrasion and chemical resistance, high strength, and an economical cost.
Technical Specifications
Product Overview
High-Performance Polypropylene Camlock Couplings
These polypropylene cam and groove couplings offer an efficient, tool-free solution for connecting hoses and equipment in low-pressure systems. Engineered for excellent chemical and abrasion resistance, they are a lightweight and cost-effective alternative to metallic fittings. They are ideal for transferring water, oil, gas, and various chemicals across industrial and agricultural applications.
Technical Specifications
Available Sizes
- 1/2"
- 3/4"
- 1"
- 1 1/4"
- 1 1/2"
- 2"
- 2 1/2"
- 3"
- 4"
Pressure Ratings
100 psi
Pressure (1" to 2 1/2")
50 psi
Pressure (3" to 4")
- Temperature Range
- -30°F to 200°F
Materials & Compatibility
Thread Standards
- ISO228 (BSP)
- ISO7 (BSPT)
- ANSI B1.20 (NPT)
- Material Components
- PolypropyleneBrassStainless SteelCarbon Steel
- Compatible Gasket Materials
- NBREPDMVitonPTFE
Performance Features
Key Advantages
Extremely LightweightChemical ResistantAbrasion ResistantTool-Free OperationHigh Strength
