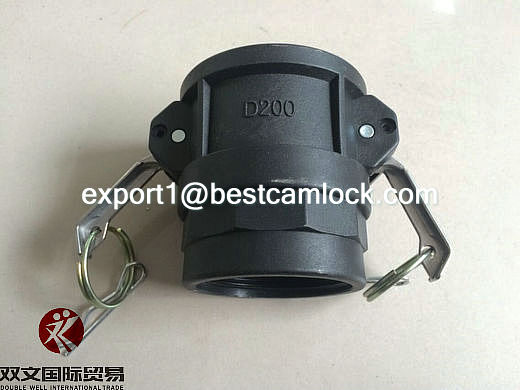

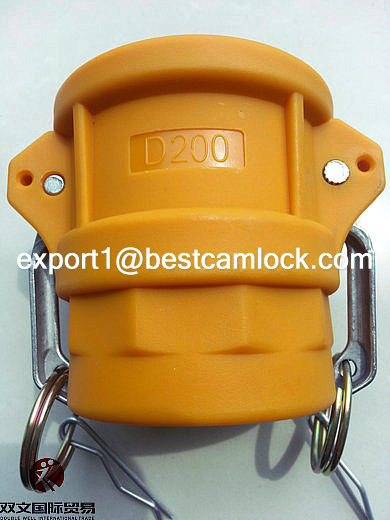

Polypropylene Camlock Coupling
This camlock coupling is made from polypropylene. It is lightweight and offers good abrasion and chemical resistance.
Technical Specifications
Overview
High-Performance Polypropylene Camlock Couplings
These polypropylene camlock couplings are designed for efficient, tool-free connection and disconnection of hoses and pipes in industrial, agricultural, and commercial settings. Featuring a lightweight yet robust construction, they offer excellent chemical and abrasion resistance for fluid transfer. This quick-release system eliminates the need for complex threaded or flanged connections, significantly improving work efficiency.
Technical Specifications
Size Range
- 1/2"
- 3/4"
- 1"
- 1 1/4"
- 1 1/2"
- 2"
- 2 1/2"
- 3"
- 4"
Pressure Ratings
| Size Range | Working Pressure |
|---|---|
| 1" - 2 1/2" | 100 psi |
| 3" - 4" | 50 psi |
- Temperature Range
- -30° to 200°F
Components & Materials
- Gasket Materials
- NBREPDMVitonPTFE
- Handle Materials
- BrassStainless Steel
- Safety Pin Materials
- Carbon steel (plated)Stainless steel
Compatibility
Supported Thread Standards
- ISO228 (BSP)
- ISO7 (BSPT)
- ANSI B1.20 (NPT)
- Compatible Media
- OilWaterGasChemical Petroleum
