Technical Specifications
Product Overview

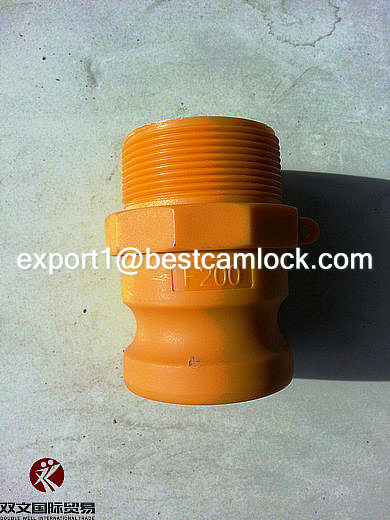

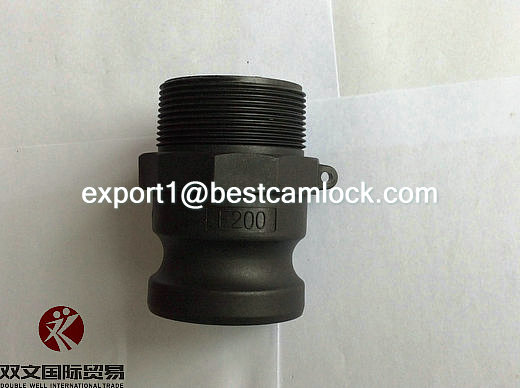

Versatile Polypropylene Camlock Couplings
These polypropylene cam and groove quick couplings offer an efficient, economical solution for fluid transfer across diverse industrial, agricultural, and chemical applications. Designed to eliminate the complexity of traditional threaded or flanged connections, these couplings provide high strength, excellent chemical resistance, and lightweight handling. They are ideal for use with suction hoses, garden hoses, and various equipment setups involving water, oil, gas, or chemical petroleum.
Technical Specifications
Available Sizes
- 1/2"
- 3/4"
- 1"
- 1 1/4"
- 1 1/2"
- 2"
- 2 1/2"
- 3"
- 4"
Working Pressure
| Size Range | Max Pressure |
|---|---|
| 1" to 2 1/2" | 100 psi |
| 3" to 4" | 50 psi |
- Material
- Polypropylene (PP)
- Operating Temperature
- -30° to 200° F
Components & Compatibility
Thread Standards
- ISO228 (BSP)
- ISO7 (BSPT)
- ANSI B1.20 (NPT)
- Handle Materials
- BrassStainless Steel
- Gasket Material Options
- NBREPDMVitonPTFE
Key Features
Performance Advantages
LightweightAbrasion ResistantChemical ResistantHigh StrengthCost Effective
