Polypropylene Cam Lock Quick Coupling Adapter

This cam and groove quick coupling is extremely lightweight and offers good abrasion and chemical resistance. Its high strength and economical cost make it a practical choice for fluid transfer applications.

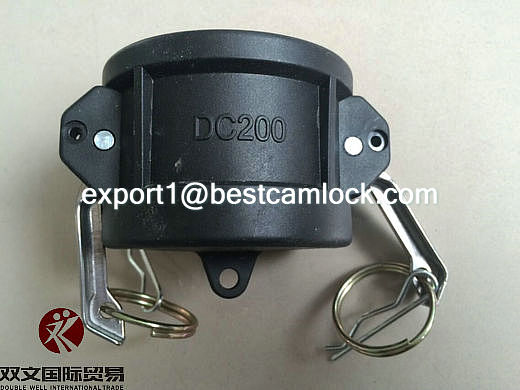

PP Cam Lock Coupling Quick Release Adapter - Image 1

Technical Specifications

Product Overview

High-Performance Polypropylene Camlock Couplings

These polypropylene cam and groove quick couplings offer an economical and highly efficient solution for fluid transfer across diverse industrial applications. Engineered for excellent chemical and abrasion resistance, these lightweight couplings eliminate the need for complex threaded connections. They are perfectly suited for connecting hoses to pumps, tanks, and other equipment handling oil, water, or chemical media.

Technical Specifications

Available Sizes

  • 1/2"
  • 3/4"
  • 1"
  • 1 1/4"
  • 1 1/2"
  • 2"
  • 2 1/2"
  • 3"
  • 4"

Working Pressure

100 psi
1" to 2 1/2" Sizes
50 psi
3" to 4" Sizes

Material Components

ComponentMaterial Options
GasketNBR, EPDM, Viton, PTFE
HandleBrass, Stainless Steel
Safety PinCarbon Steel Plated, Stainless Steel

Temperature Range
-30°F to 200°F

Logistics and Compliance

Export Terms

FOB Qingdao30 Days Lead Time

Thread Standards
ISO 228 (BSP)ISO 7 (BSPT)ANSI B1.20 (NPT)
