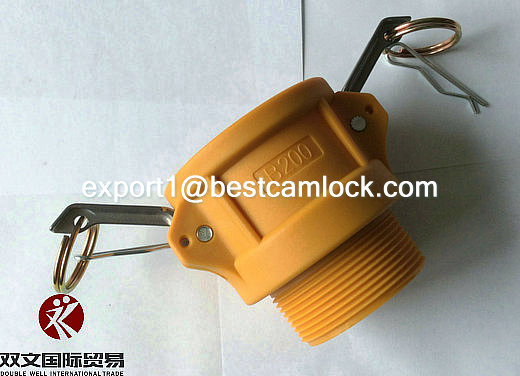

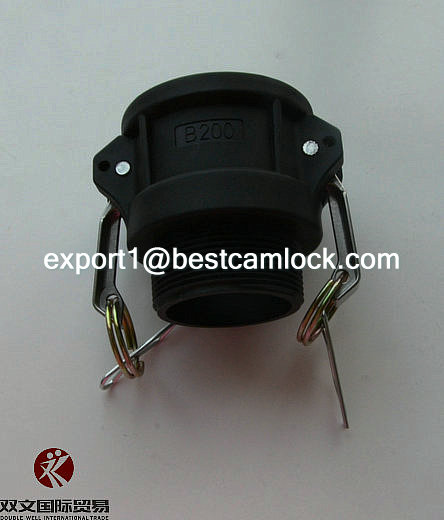

Polypropylene Cam and Groove Couplings
These cam and groove quick couplings are lightweight and offer good abrasion and chemical resistance. Their high strength and economical cost make them suitable for various industrial applications.
Technical Specifications
Product Overview
Versatile Polypropylene Cam and Groove Couplings
Polypropylene cam and groove couplings provide a highly efficient, quick-release solution for connecting and disconnecting hoses and pipes. Designed for excellent chemical and abrasion resistance, these lightweight yet strong fittings eliminate the need for complex threading or flange operations. They are ideal for low-pressure applications involving water, oil, gas, and various chemicals.
Technical Specifications
Available Sizes
- 1/2"
- 3/4"
- 1"
- 1 1/4"
- 1 1/2"
- 2"
- 2 1/2"
- 3"
- 4"
Pressure Ratings
100 psi
1" - 2 1/2"
50 psi
3" - 4"
Thread Standards
- ISO228 (BSP)
- ISO7 (BSPT)
- ANSI B1.20 (NPT)
- Temperature Range
- -30°F to 200°F
Materials & Construction
Gasket Materials
NBREPDMVitonPTFE
- Material Highlights
- PolypropyleneStainless SteelBrass
