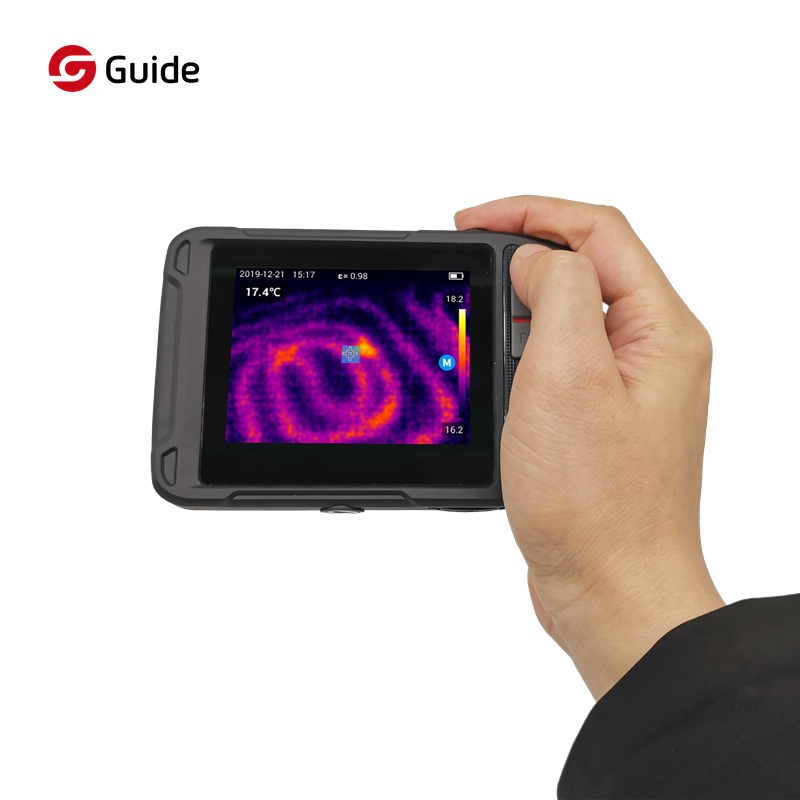

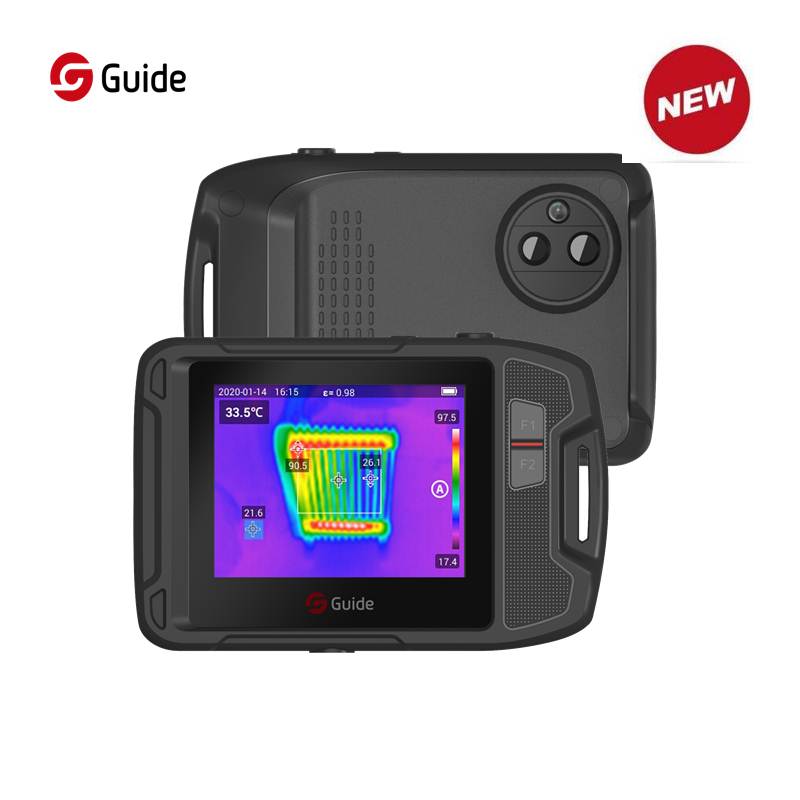

Pocket-Sized Thermal Camera for Electrical and Building Inspections
This pocket-sized thermal camera is designed for electrical equipment maintenance and building inspection, allowing for fast detection of potential problems. It features a 3.5-inch LCD touchscreen for simple operation and supports picture-in-picture and smooth zoom.
Technical Specifications
Overview
Professional Pocket-Sized Thermal Inspection

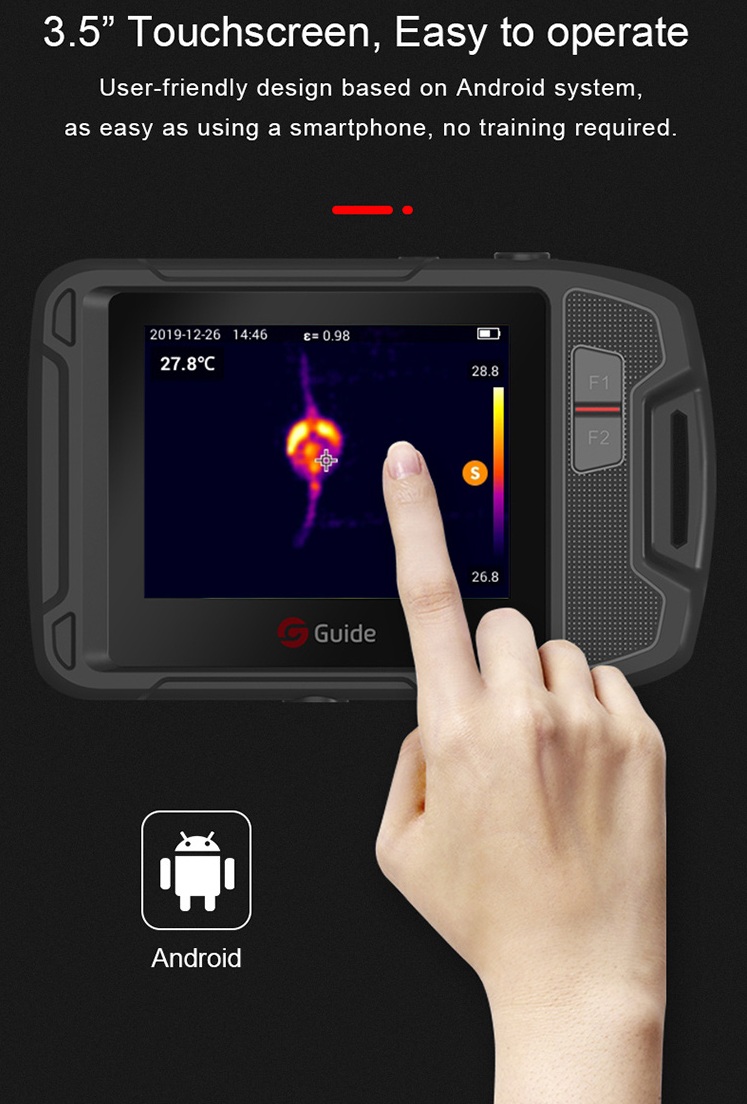

This compact thermal camera is designed for rapid electrical equipment maintenance and building inspections. Featuring a 3.5-inch LCD touchscreen and an intuitive, smartphone-like interface, it allows for fast detection of potential problems without the need for extensive training. The device supports Wi-Fi connectivity, cloud services, and real-time report generation, making it an essential tool for on-the-go diagnostics.
Imaging Performance
Imaging Specifications
| Feature | Specification |
|---|---|
| IR Resolution | 120 × 90 |
| Pixel Pitch | 17 μm |
| Focal Length | 2.28mm |
| Field of View | 50° × 38° |
| Focus | Focus-free |
- Image Modes

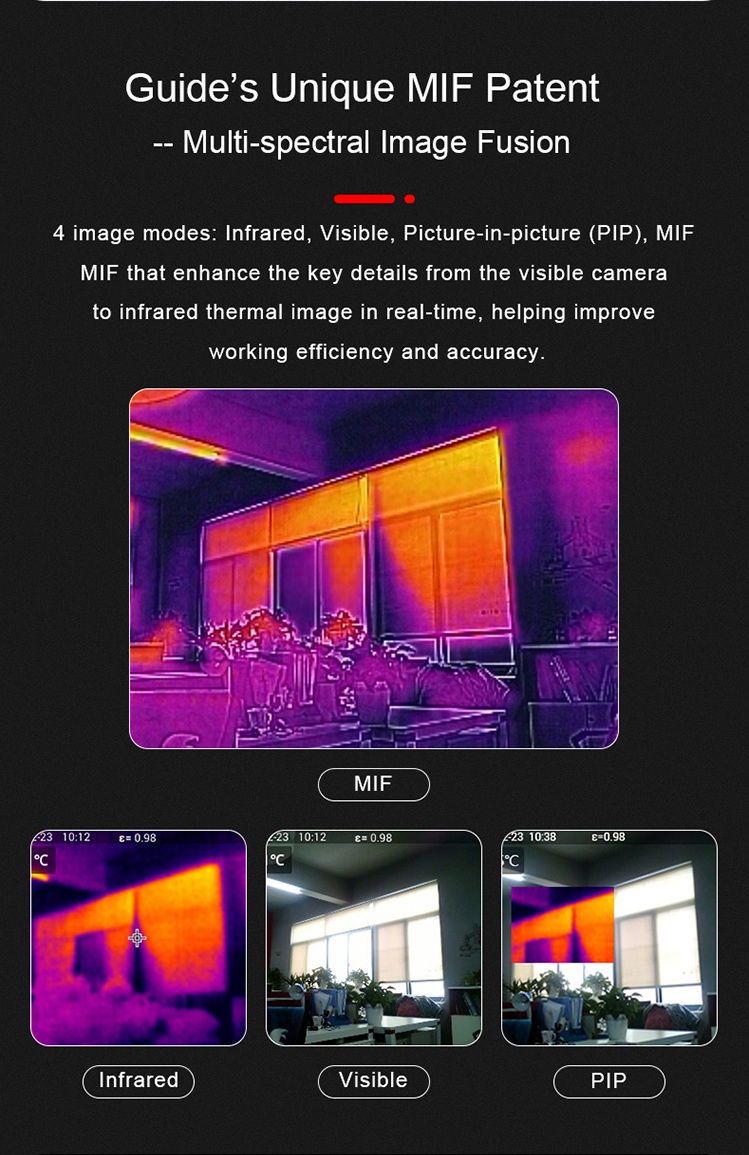

- InfraredVisiblePicture-in-pictureMulti-spectral Image Fusion (MIF)
Measurement
Temperature Metrics
0.06 °C
Thermal Sensitivity
400 °C
Max Temperature
- Measurement Range
- -20°C to 150°C, 100°C to 400°C (Auto switching)
Physical & Environmental
Durability Ratings
IP54 Encapsulation1-meter drop testWaterproofDust resistant
- Dimensions
- 133mm x 87mm x 24mm
- Weight
- 240 g
Connectivity & Power
Connectivity
- Wi-Fi enabled
- Cloud service support
- Type-C connector
- Mobile App compatibility
- Battery Life
- 2 hours
