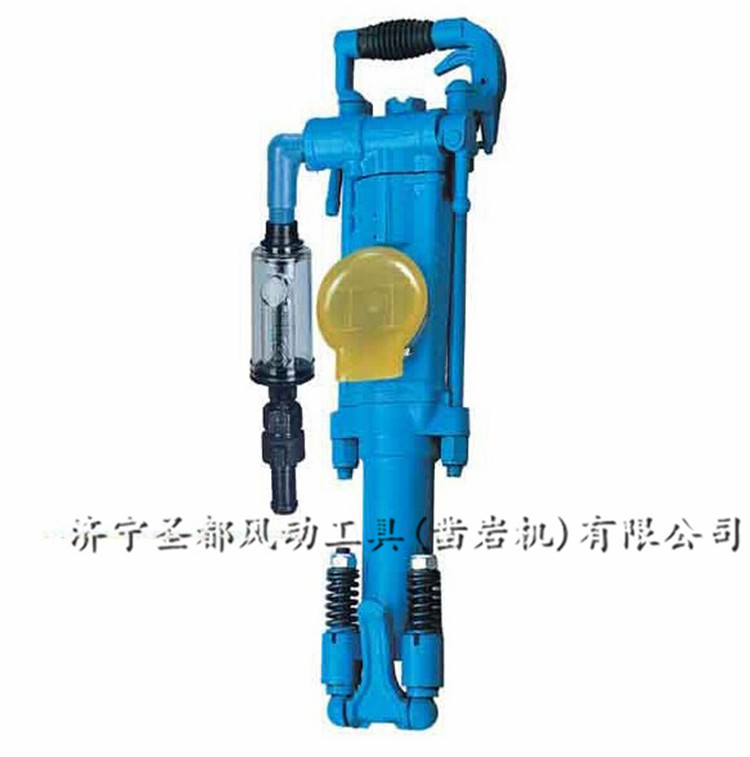

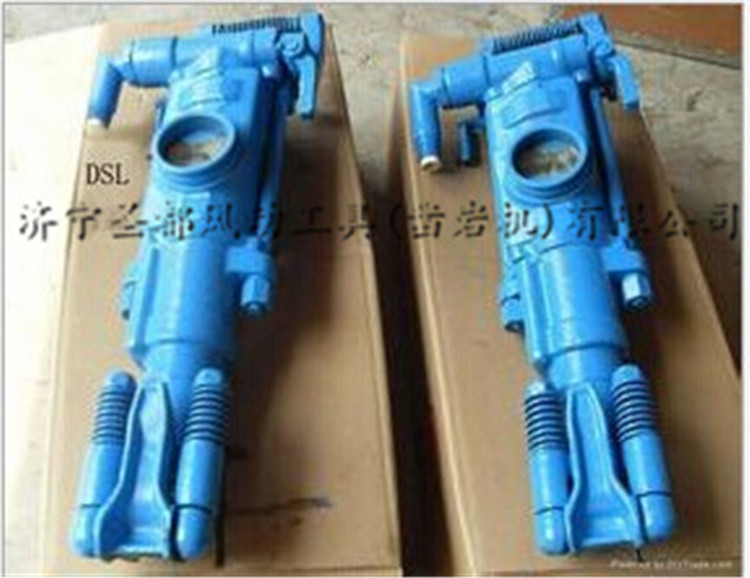

Pneumatic Rock Drill YT24
The YT24 pneumatic rock drill is designed for efficient drilling in hard rock. It delivers powerful percussive force via a high-impact pneumatic mechanism.
Technical Specifications
Overview
Professional Grade Pneumatic Rock Drill
The YT24 is a high-performance pneumatic rock drill engineered for demanding environments in mining, quarrying, and construction. Designed for efficiency and durability, it features a powerful percussive mechanism capable of drilling depths up to 5 meters in hard rock formations. The ergonomic design ensures operator comfort and control during extended use, making it a reliable solution for professional geological exploration and infrastructure projects.
Key Performance Metrics
Operational Performance
44.7 J
Impact Energy
31 Hz
Impact Frequency
5 m
Max Drill Depth
Technical Specifications
Physical Dimensions
| Parameter | Value |
|---|---|
| Weight (Kg) | 24 |
| Length (mm) | 678 |
| Cylinder Diameter (mm) | 70 |
| Piston Stroke (mm) | 70 |
Operating Requirements
- Working Air Pressure: 0.4~0.5 Mpa
- Working Water Pressure: 0.2~0.3 Mpa
- Air Pipe Inner Diameter: 19 mm
- Water Pipe Inner Diameter: 13 mm
Applications & Usage
- Suitable Applications
- MiningQuarryingConstructionGeological Exploration
