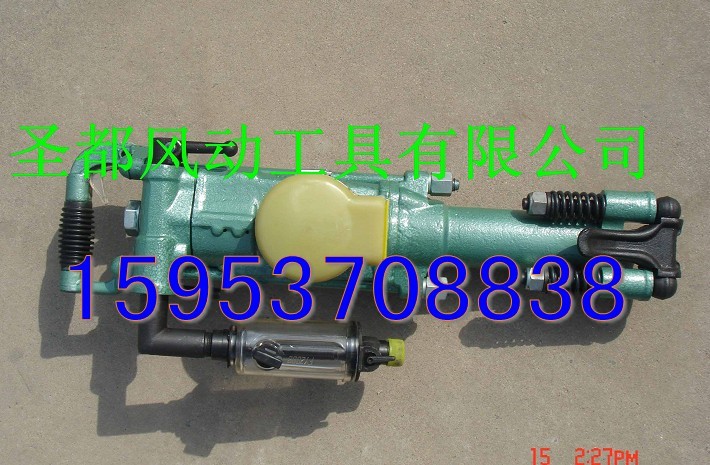

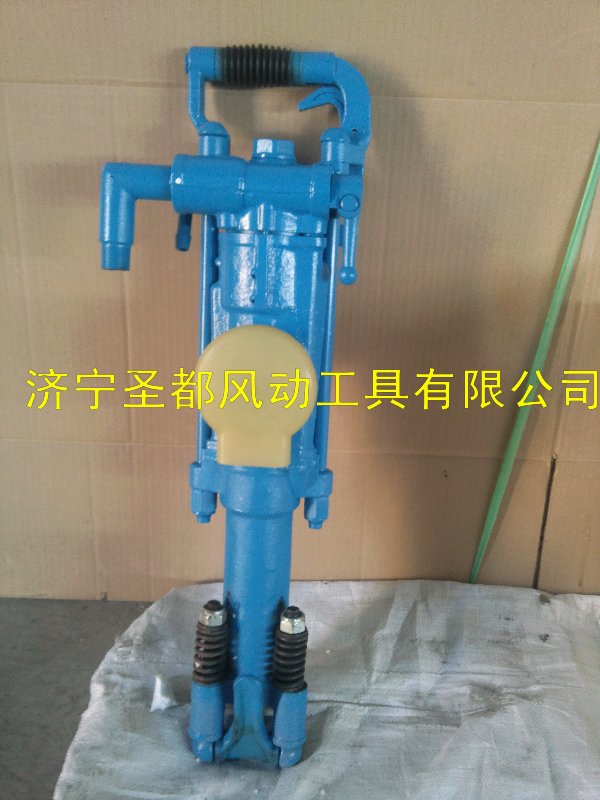

Pneumatic Air Leg Rock Drill YT24
The YT24 Air Leg Rock Drill is a pneumatic drilling tool suited for mining, tunneling, and construction. It utilizes compressed air to power its percussive and rotational actions for efficient drilling in various rock formations.
Technical Specifications
Product Overview
YT24 Pneumatic Air Leg Rock Drill
The YT24 is a high-performance pneumatic rock drill engineered for mining, tunneling, and heavy-duty construction applications. Featuring robust construction, it delivers efficient percussive force for drilling in medium-hard to hard rock formations. The integrated air leg system provides essential support and stability during operation, significantly reducing operator fatigue while ensuring precise drilling angles and depth control.
- Suitable Applications
- Underground MiningTunnelingCivil EngineeringQuarryingAnchor Hole Drilling
Key Performance Metrics
Performance Metrics
44.7 J
Impact Energy
31 Hz
Impact Frequency
66.7 L/s
Air Consumption
Technical Specifications
Dimensions & Weight
| Parameter | Value |
|---|---|
| Weight | 24 kg |
| Length | 678 mm |
| Cylinder Diameter | 70 mm |
| Piston Stroke | 70 mm |
Operating Parameters
- Working pressure: 0.4~0.5 Mpa
- Working water pressure: 0.2~0.3 Mpa
- Rock drill hole diameter: φ34~φ42 mm
- Max rock drill hole depth: 5 m
Connection Sizes
- Air pipe inner diameter: φ19 mm
- Water pipe inner diameter: φ13 mm
- Shank size: 22×108 mm
