Plumbing System Fittings
Plumbing fittings provide secure and leak-free connections for various plumbing systems. They are suitable for joining or splitting fluid lines in diverse applications.

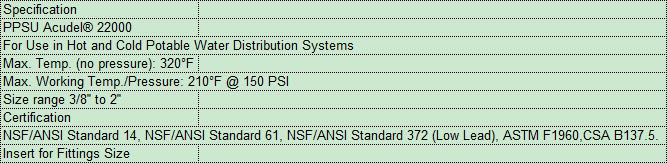

Technical Specifications
Product Overview
High-Performance Plumbing Solutions

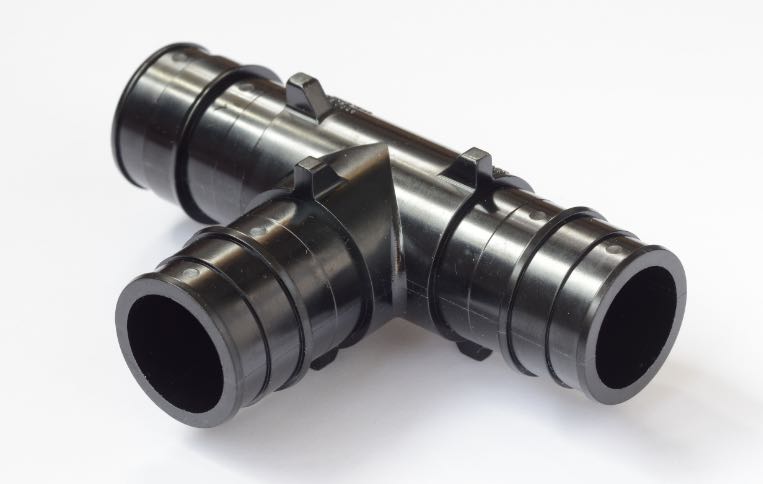

These plumbing fittings are engineered for robust performance in hot and cold potable water distribution systems. Constructed from high-grade PPSU Acudel® 22000, they offer exceptional durability and reliability for critical infrastructure. Designed as secure inserts, they ensure leak-free connections across a versatile range of plumbing applications.
Technical Specifications
- Material
- PPSU Acudel® 22000
- Size Range
- 3/8" to 2"
Performance Metrics
Key Performance Ratings
320 °F
Max Temp (No Pressure)
210 °F
Max Working Temp
150 PSI
Max Working Pressure
Compliance and Standards
- Certifications
- NSF/ANSI 14NSF/ANSI 61NSF/ANSI 372 (Low Lead)ASTM F1960CSA B137.5
Application
Recommended Use
- Hot potable water distribution
- Cold potable water distribution
- Fluid line splitting
- Fluid line joining
