Plumbing Safety Valve with Adjustable Pressure Relief
This safety valve is designed for plumbing applications requiring pressure relief. It features adjustable outlet pressure and a G1/2" connection for easy installation.
Technical Specifications
Product Overview
Adjustable Pressure Relief Valve
This premium safety valve features a unique patented design with end-face sealing, eliminating the need for raw tape during installation for a quick and reliable fit. Engineered from high-temperature forged brass with a sophisticated electroplated finish, it offers superior pressure and explosion-proof performance. Its internal design effectively prevents noise and flow obstructions, ensuring consistent and safe operation in demanding environments.

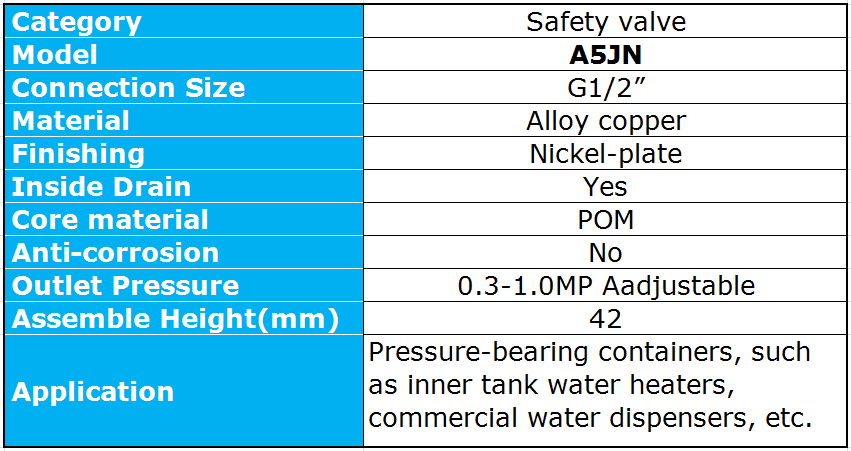

Technical Specifications
- Model
- A5JN
- Connection Size
- G1/2"
- Adjustable Pressure Range
- 0.3 - 1.0 MPa
- Assembly Height
- 42 mm
Material and Build
- Body Material
- Alloy Copper
- Finishing
- Nickel-plate
- Core Material
- POM
Features
Operational Metrics
0.75 MPa
Rated Pressure
42 mm
Installation Height
- Product Highlights
- Best SellingFixed Handle ScrewNo-Tape InstallationAnti-Noise DesignPressure Proof
Application
Recommended Applications
- Inner tank water heaters
- Commercial water dispensers
- General plumbing pressure-bearing containers
