Plastic Injection Molding Machine
This plastic injection molding machine is designed for efficient and precise manufacturing. It features a robust construction and an advanced control system for consistent production.
Technical Specifications
Overview
High-Performance Servo Injection Molding

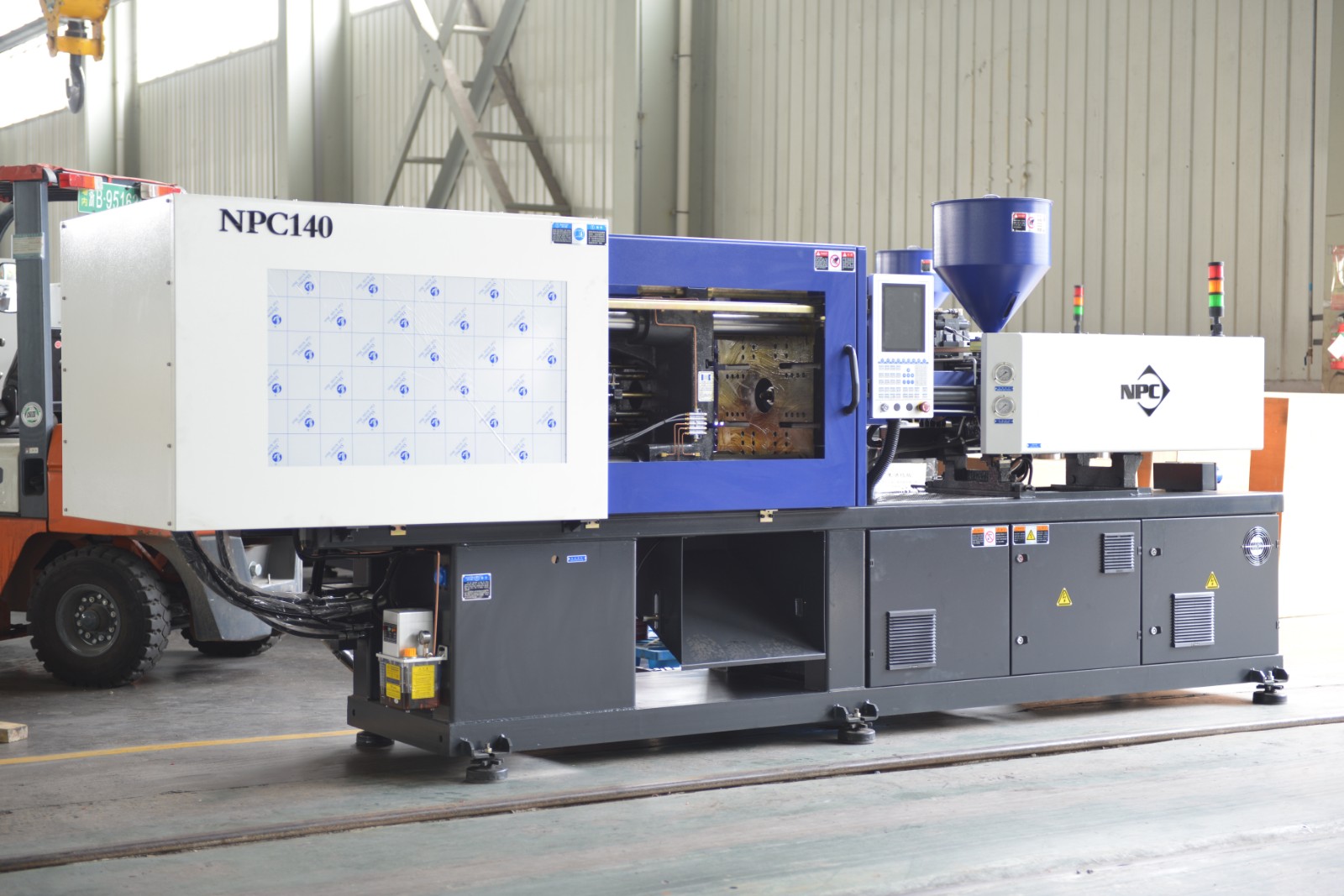

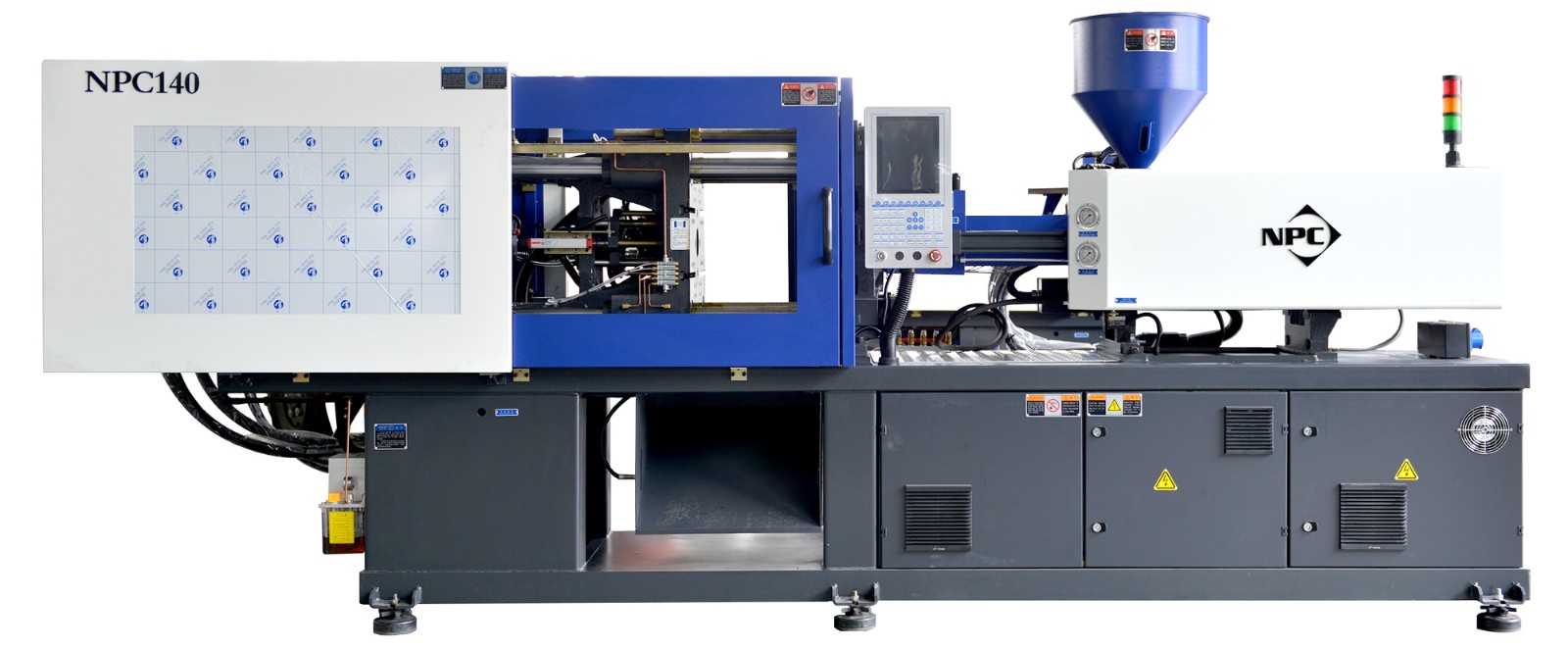

The NPC 140 is a precision-engineered plastic injection molding machine designed for high-efficiency manufacturing. Featuring an advanced servo-driven energy-saving system, this machine minimizes vibration and ensures smooth, reliable operation to extend component lifespan. With a robust 140-ton clamping force and versatile injection unit options, it provides consistent production quality for a wide range of thermoplastic applications, from automotive parts to consumer goods.
Machine Dimensions
4.75 m
Length
1.19 m
Width
1.98 m
Height
3.6 t
Weight

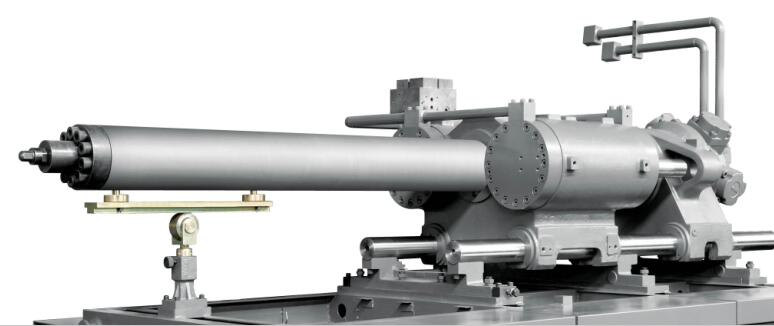

Injection Unit
Injection Unit Specifications
| Parameter | Screw A | Screw B | Screw C |
|---|---|---|---|
| Screw Diameter (mm) | 38 | 42 | 45 |
| Shot Volume (cm³) | 193 | 235 | 270 |
| Injection Weight (g) | 176 | 213 | 246 |
| Injection Pressure (MPa) | 218 | 179 | 156 |
- Key Injection Features
- Dual-cylinder balanced systemHigh-torque oil motorScrew draw-back anti-droolingMulti-stage pressure controlPID hopper temperature control

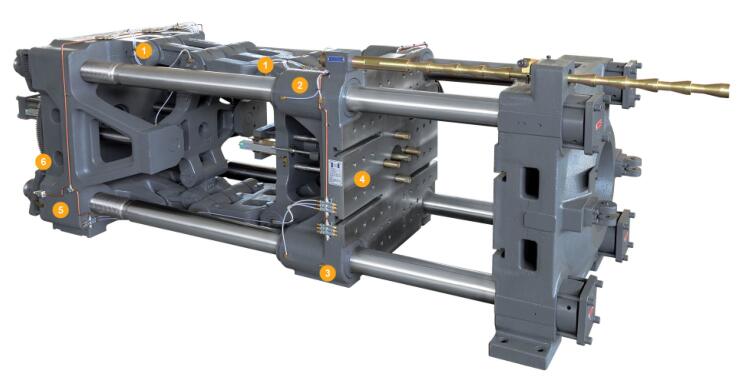

Clamping Unit
Clamping Specifications
- Open Stroke: 380 mm
- Space between tie bars: 410 x 410 mm
- Max Mould Height: 450 mm
- Min Mould Height: 160 mm
- Ejector Stroke: 120 mm
- Ejector Force: 50 kN
- Clamping Force
- 1400 kN

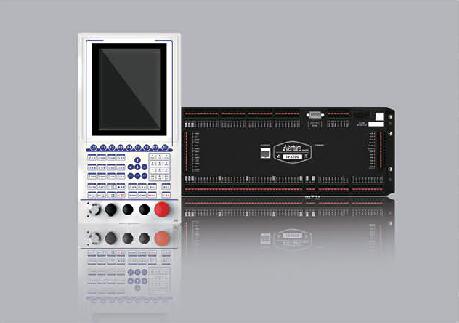

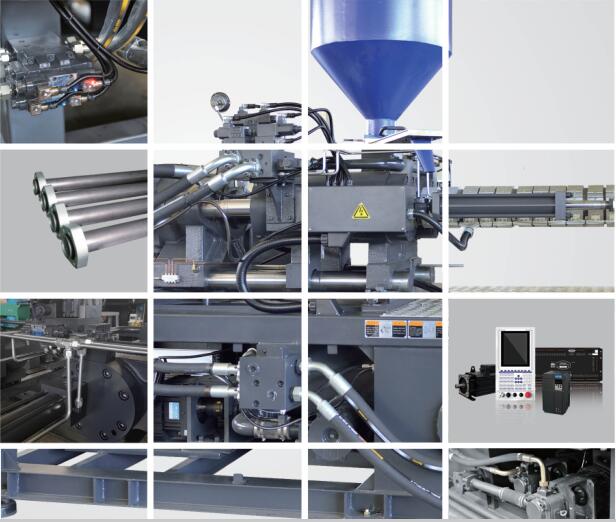

Hydraulic & Control
System Highlights

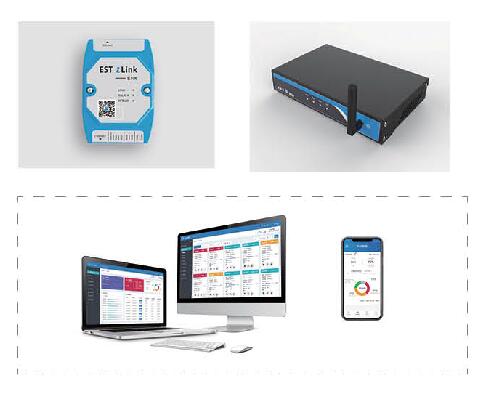

Servo Energy-SavingIndustrial IoT ReadyCentralized LubricationLeak-proof PipingMulti-pump Control
Power Requirements
18.7 kW
Servo Motor Power
10 kW
Heating Power
17.5 MPa
Max Pump Pressure
