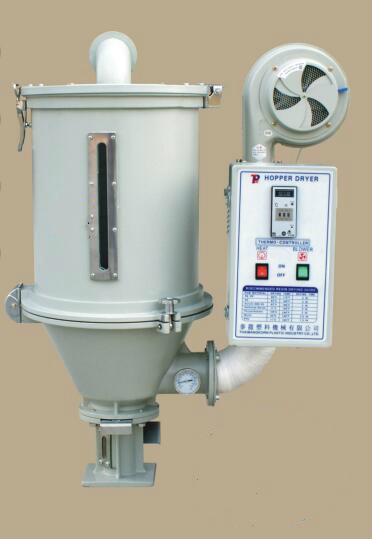

Plastic Granules Hopper Dryer
The hopper dryer efficiently dries plastic raw materials affected by moisture during packaging, shipping, or recycling. Its design prioritizes environmental protection and enhances the drying of raw materials.
Technical Specifications
Product Overview
Efficient Moisture Removal for Plastic Processing
This industrial hopper dryer is an advanced solution for drying plastic raw materials affected by packaging, transportation, or recycling. Designed for direct installation on plastic molding machines, it features a space-saving, direct-coupled architecture. The system utilizes high-performance hot-air diffusion to ensure uniform drying temperatures, significantly increasing processing efficiency and material quality.
Technical Specifications
Control System
- Proportional deviation temperature controller
- Microcomputer control (optional)
- Preheating timing device (optional)
Safety Mechanisms
Double Overheating ProtectionDust-Resistant Heating Pipe Design
- Loading Capacity
- 1000 kg
- Internal Construction
- Stainless Steel
Drying Guide
Recommended Resin Drying Guide
| Material | Drying Temp (°C) | Drying Time (Hr) |
|---|---|---|
| ABS | 65-75 | 2-3 |
| AS | 65-75 | 2-3 |
| PA | 80-90 | 3-4 |
| PC | 120-130 | 4-5 |
| PE | 50-60 | 1-2 |
| PP | 50-60 | 1-2 |
| PS | 60-70 | 2-3 |
| PVC | 60-70 | 2-3 |
