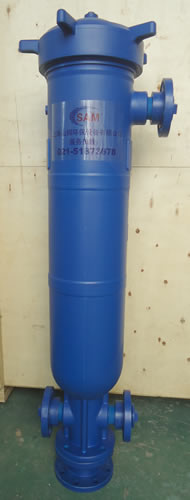

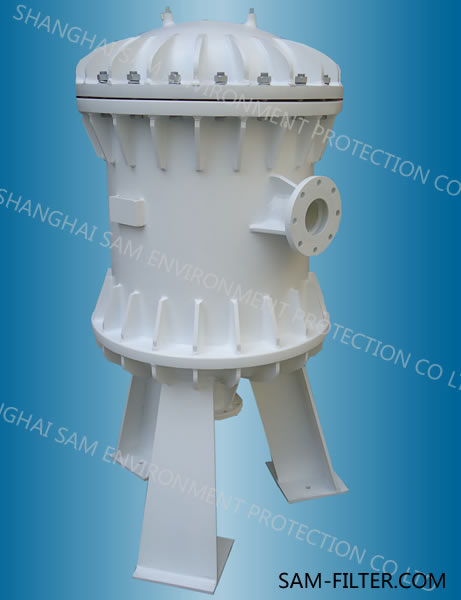

Plastic Bag Filter Housing for Chemical Processing
Bag filter housing is typically used in applications requiring gross particulate removal. Constructed from durable PP material, it offers excellent chemical resistance and corrosion protection.
Technical Specifications
Product Overview
High-Efficiency Polypropylene Filtration
This industrial-grade filter housing is engineered from high-quality polypropylene, offering exceptional chemical resistance for demanding processing environments. Designed for reliability, the unit features a seamless, dead-angle-free interior that simplifies cleaning and maintenance. With advanced anti-leakage technology and a robust construction capable of handling significant pressure, it provides an economical and practical solution for liquid filtration needs.
Technical Specifications
- Material
- Polypropylene (PP)
- Inlet/Outlet Connection
- 2"-4" Flange
- Working Pressure
- 7 kg/cm2
- Design Pressure
- 15 kg/cm2
- Operating Temperature
- 43 °C
- Maximum Material Temperature
- 83 °C
Key Features
Design Highlights
- Seamless interior construction
- Anti-leakage technology
- Handle on cover for easy access
- Grip-equipped filter bags for easy changing
- No dead angles for easy washing
- Application Suitability
- Chemical ProcessingSour Soda LiquidsIndustrial Filtration
