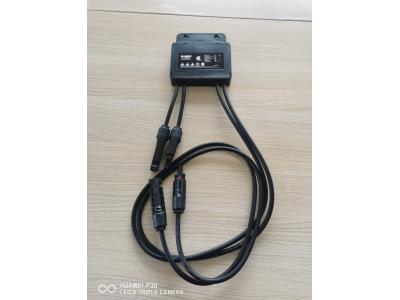

Photovoltaic Panel Optimizer
This device improves the efficiency of photovoltaic panels. It optimizes the output of each panel individually, improving overall system efficiency.

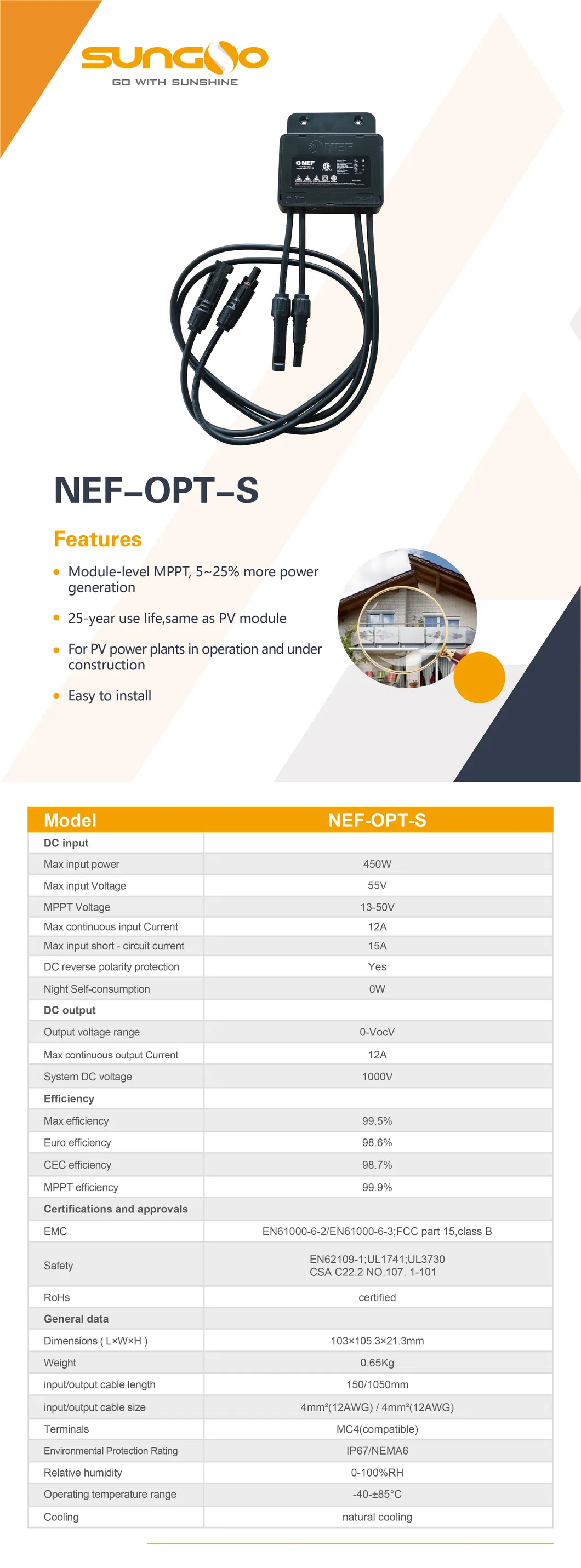

Technical Specifications
Overview
High-Efficiency Solar Optimizer
This module-level solar optimizer is engineered to significantly enhance the energy harvest of photovoltaic panels by 5-25%. By performing independent Maximum Power Point Tracking (MPPT), it effectively mitigates performance losses caused by shading, panel mismatch, or aging. Designed for a 25-year service life, it ensures reliable energy optimization for both new and existing solar power installations.
Performance
Efficiency Metrics
99.5 %
Max Efficiency
98.7 %
CEC Efficiency
99.9 %
MPPT Efficiency
Electrical Input
| Parameter | Value |
|---|---|
| Max Input Power | 450W |
| Max Input Voltage | 55V |
| MPPT Voltage Range | 13-50V |
| Max Continuous Input Current | 12A |
Physical Properties
Dimensions & Weight
- Dimensions: 103 x 105.3 x 21.3 mm
- Weight: 0.65 kg
- Environmental Protection
- IP67NEMA6Natural Cooling
Compliance
Certifications
CERoHSUL1741UL3730FCC
