DC Power Meter for Solar Energy Systems
This DC power meter is designed for solar energy systems, offering precise DC power measurement and management. It features multiple DC input channels and supports a voltage range of 0-80VDC.
Technical Specifications
Overview

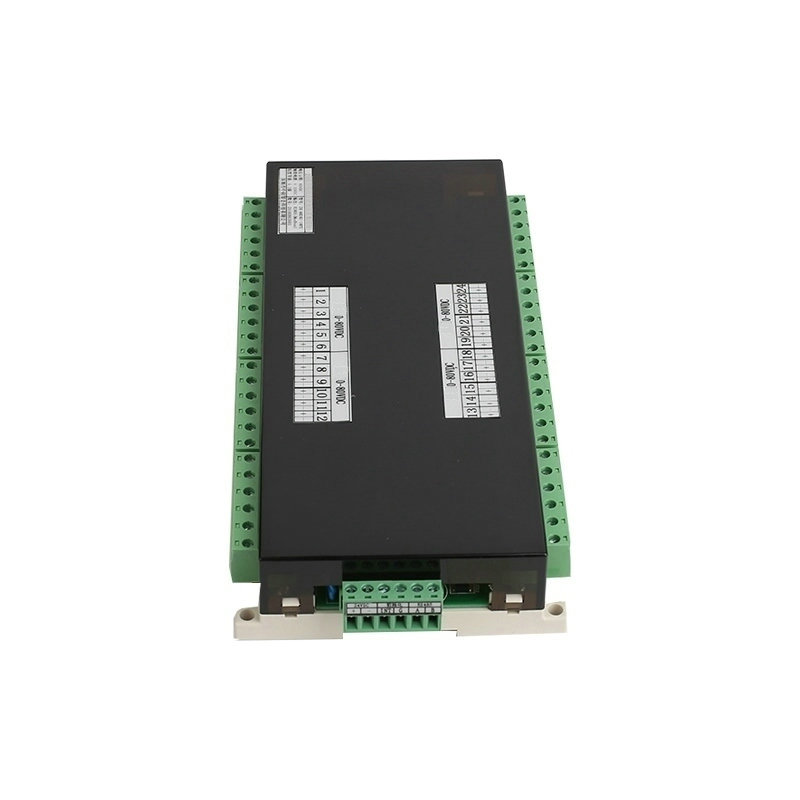

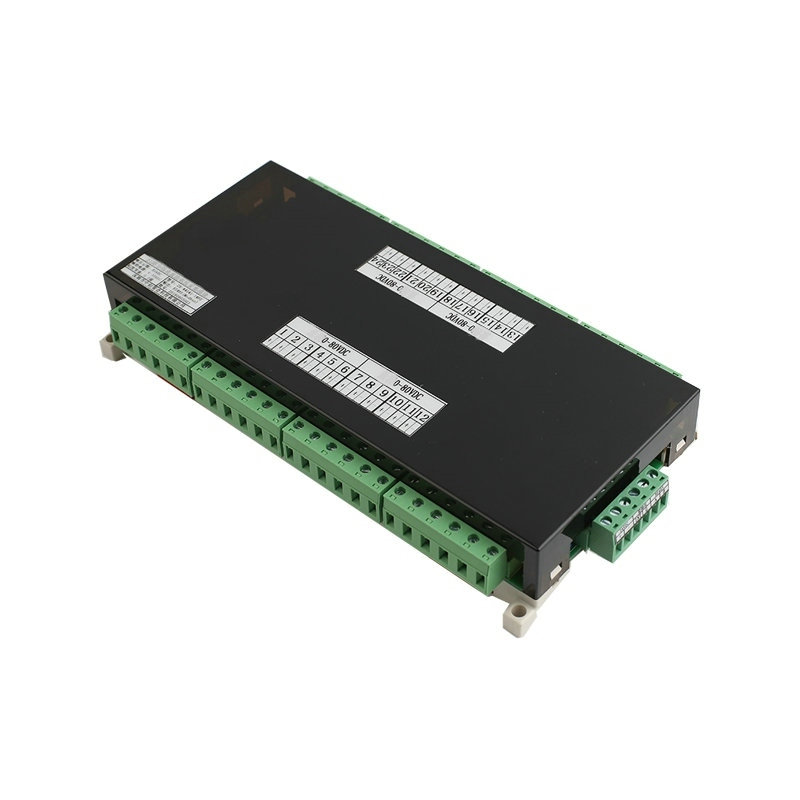

High-Precision 24-Channel DC Power Meter
The DP-M24 is a high-performance acquisition module designed for real-time monitoring of 24 channels of DC voltage or current signals. Utilizing multi-channel 24-bit high-precision AD measurement chips and linear optocoupler isolation, it ensures reliable data collection with excellent stability and fast sampling speeds. This versatile device supports standard RS485 MODBUS-RTU communication, making it an ideal solution for fatigue equipment testing, production automation, and computer room monitoring.
Measurement Performance
Measurement Accuracy
0.2 %FS
Current Accuracy
0.5 %FS
Voltage Accuracy
- Input Channels
- 24 channels
- Acquisition Speed Options
- 200mS300mS400mS500mS800mS
Electrical Specifications
Rated Voltage Options
- 10V
- 60V
- 100V
- 300V
- 400V
Rated Current Options
- 20mA
- 100mA
- 1A
- 5A
- 10A
- Auxiliary Power Supply
- 9V-30VDC or 9V-55VDC
Communication & Connectivity
- Output Interface
- RS485 (Modbus-RTU)
- Supported Baud Rates
- 48009600192003840057600115200
Physical & Environmental
Mounting Type
35mm DIN railScrewed mounting
- Isolation Withstand Voltage
- 2500 V
- Operating Temperature
- -20℃ to +70℃
- Dimensions
- 217mm x 109mm x 37mm
