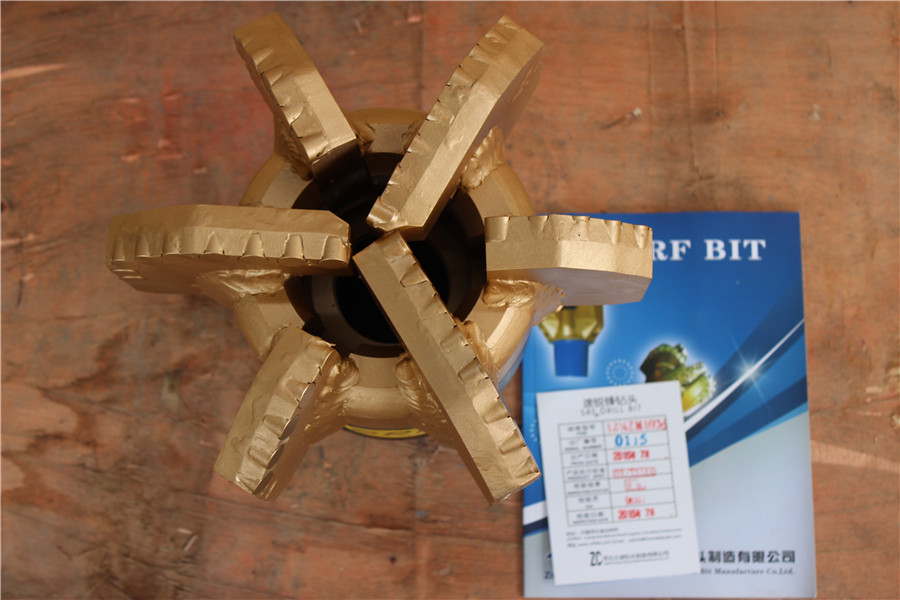

PDC Drill Bit
This PDC drill bit is designed with either 6 straight or spiral blades and high-density cutters. It is applicable for drilling in soft to medium-hard formations with small abrasive layers, as well as directional drilling and angle building.
Technical Specifications
Product Overview
High-Performance PDC Drill Bit
This PDC (Polycrystalline Diamond Compact) drill bit is engineered for high efficiency in soft to medium-hard rock formations. Featuring a robust multi-blade design with high-density cutters, it ensures effective rock removal and consistent performance. The inclusion of back-row cutters helps restrict cutting depth, reducing torque fluctuation and significantly extending the service life of the bit.
Design & Construction
- Blade Count
- 6 blades
- Blade Type
- Straight or Spiral
- Cutter Density
- High density
- Body Material
- Tungsten Carbide MatrixHigh-strength Steel
Performance Features
Suitable Formations
- Soft formations
- Medium-hard formations
- Small abrasive layers
Operational Capabilities
Directional DrillingAngle BuildingOil & GasMiningGeothermal
Key Benefits
- Reduced torque fluctuation
- Restricted cutting depth
- Extended service life
- Deep junk slot design
