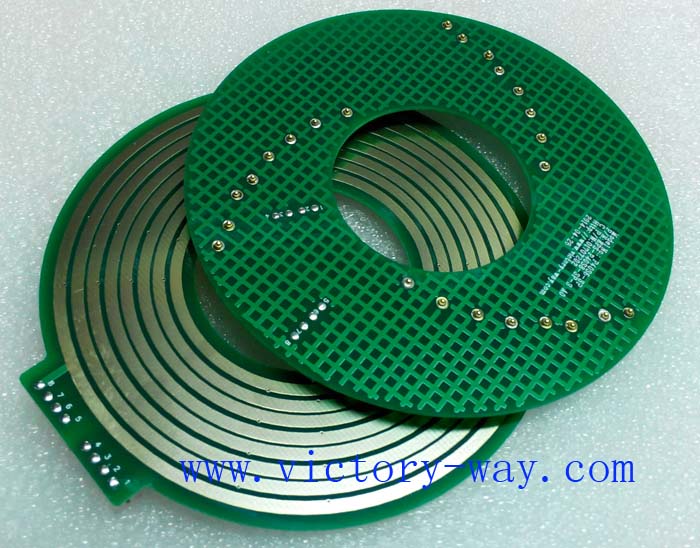

PCB Slip Ring for Automation
The PCB slip ring features a two-part structure consisting of a ring surface and brush assembly. It offers advantages such as rapid batch processing, low cost, minimal contact resistance, self-lubrication, and ease of installation.
Technical Specifications
Product Overview
High-Performance PCB Slip Ring
This PCB slip ring is designed as a separate, low-cost solution ideal for intermittent operation environments. Featuring a thick copper PCB surface with hard gold plating, it offers superior hardness and wear resistance. The assembly utilizes military-grade alloy brush blocks and heat-treated beryllium copper shrapnel to ensure low contact resistance and self-lubricating performance.
Technical Construction
Key Performance Characteristics
- Low contact resistance
- Self-lubricating
- Minimal friction dust generation
- High wear resistance
- Contact Materials
- Thick Copper PCBHard Gold PlatingMilitary Grade Alloy BrushHeat-Treated Beryllium Copper
Operational Suitability
Ideal Applications
RoboticsAutomation SystemsRotary MachineryIntermittent Operation
Installation & Logistics
- Separate structure design
- Easy to install
- Short delivery lead times
- Simple customization process
