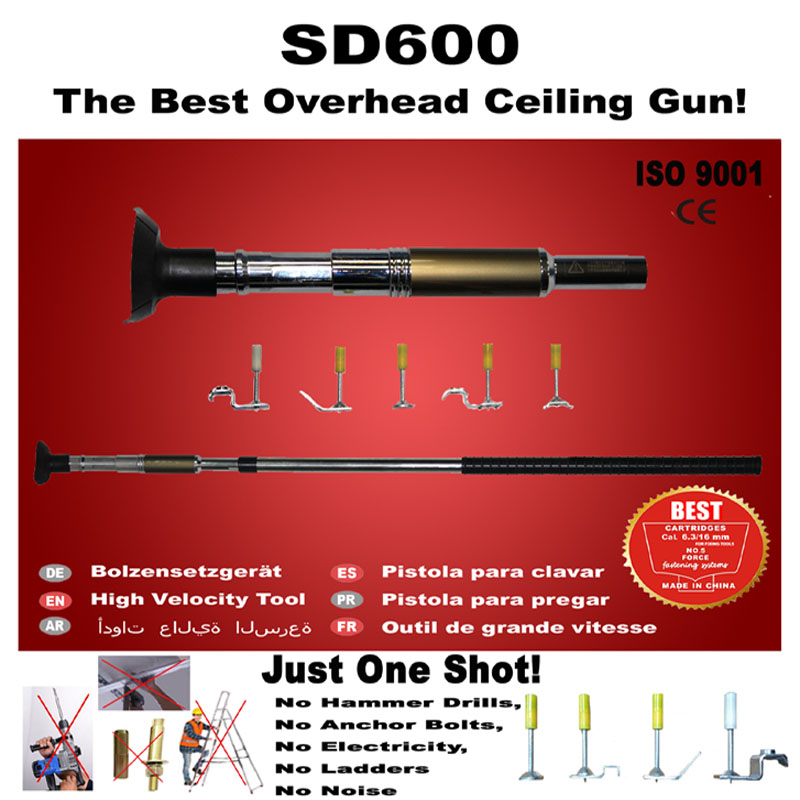

Overhead Ceiling Fastening Gun
This high-velocity overhead ceiling gun is designed for fastening systems. It eliminates the need for hammer drills, anchor bolts, electricity, and ladders.
Technical Specifications
Product Overview
High-Velocity Overhead Fastening System
This overhead ceiling gun is a professional-grade tool designed for efficient fastening in construction and installation projects. It significantly increases productivity by eliminating the need for hammer drills, anchor bolts, electricity, and ladders, allowing for installation in a single shot. The system is compatible with various materials, including high-grade concrete and steel, making it ideal for ceiling, insulation, and partitioning applications.
Key Performance Metrics
Performance Specifications
450 J
Impact Force
3.2 kg
Weight
50,000 shots
Minimum Lifespan
Technical Capabilities
Material Compatibility
- High-grade concrete (C30, C40, C50, C60)
- Steel up to 12mm thickness
- Light steel keel
- Wood keel
Fastener Specifications
| Feature | Specification |
|---|---|
| Pin Lengths | 25mm - 60mm |
| Pin Material | C1065 High Carbon Steel |
| Core Hardness | HRC54/59 |
| Shear Strength | 8.0 KN |
| Plating | Mechanical Zinc |
Certifications & Standards
- Quality Standards
- ISO 9001CE Approved
Application & Usage
Primary Applications
- Pipe and lamp suspension
- Air-conditioning pipe and hose fixing
- Cable tray installation
- Floor heating fixing
- Suspended threaded rods and steel wires
