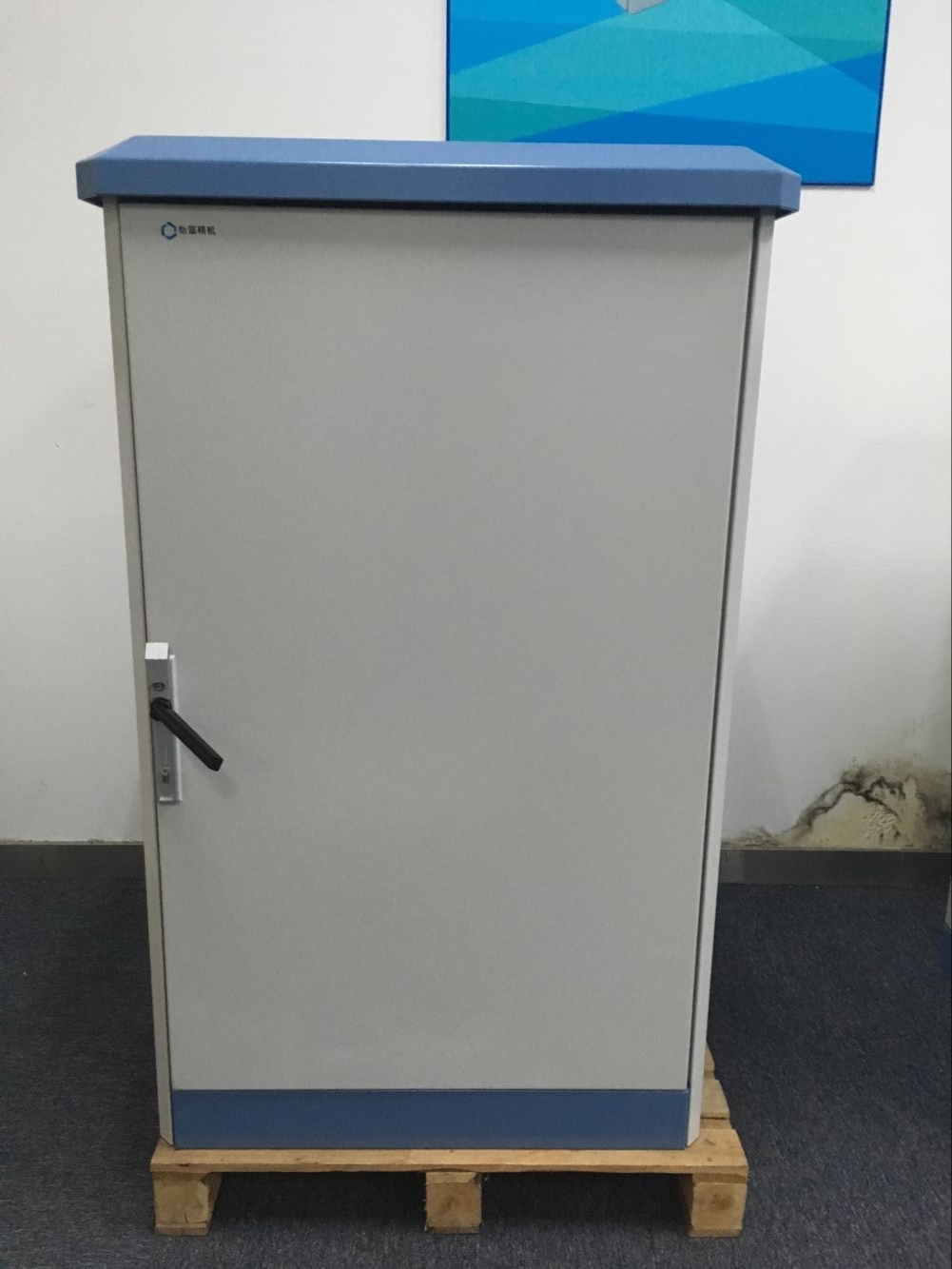

Outdoor Weatherproof Equipment Cabinet
This outdoor cabinet is designed to house and protect sensitive electronic equipment in harsh environments. It features a robust metal construction with ventilation to maintain optimal operating temperatures.
Technical Specifications
Overview
Robust Outdoor Protection
This Outdoor Weatherproof Equipment Cabinet is engineered to house and protect sensitive electronic equipment in demanding environments. It features a robust SPCC cold-rolled steel structure with an impressive static loading capacity of 800kg, ensuring both stability and security. The design prioritizes operational efficiency with removable panels, versatile cable entry points, and integrated ventilation to maintain optimal equipment performance.
Technical Specifications
Static Loading Capacity
800 kg
Static Load
Surface Treatment Process
- Degreasing
- Pickling
- Phosphoric
- Cleaning
- Powder Coated
- Material
- SPCC Cold Rolled Steel
- Mounting Profile Thickness
- 2 mm
- Panel Thickness
- 1.2 - 1.5mm
Design & Features
Mobility & Installation
Adjustable FeetCastors Available
- Door Configuration
- Tempered Glass Front DoorSteel Rear DoorRemovable Panels
- Cable Entry
- Top cover and bottom panel
