Open Frame Inverter Generator
This open frame inverter generator combines traditional generator power with clean inverter energy. It is designed for efficient power delivery, featuring a robust engine and durable construction.

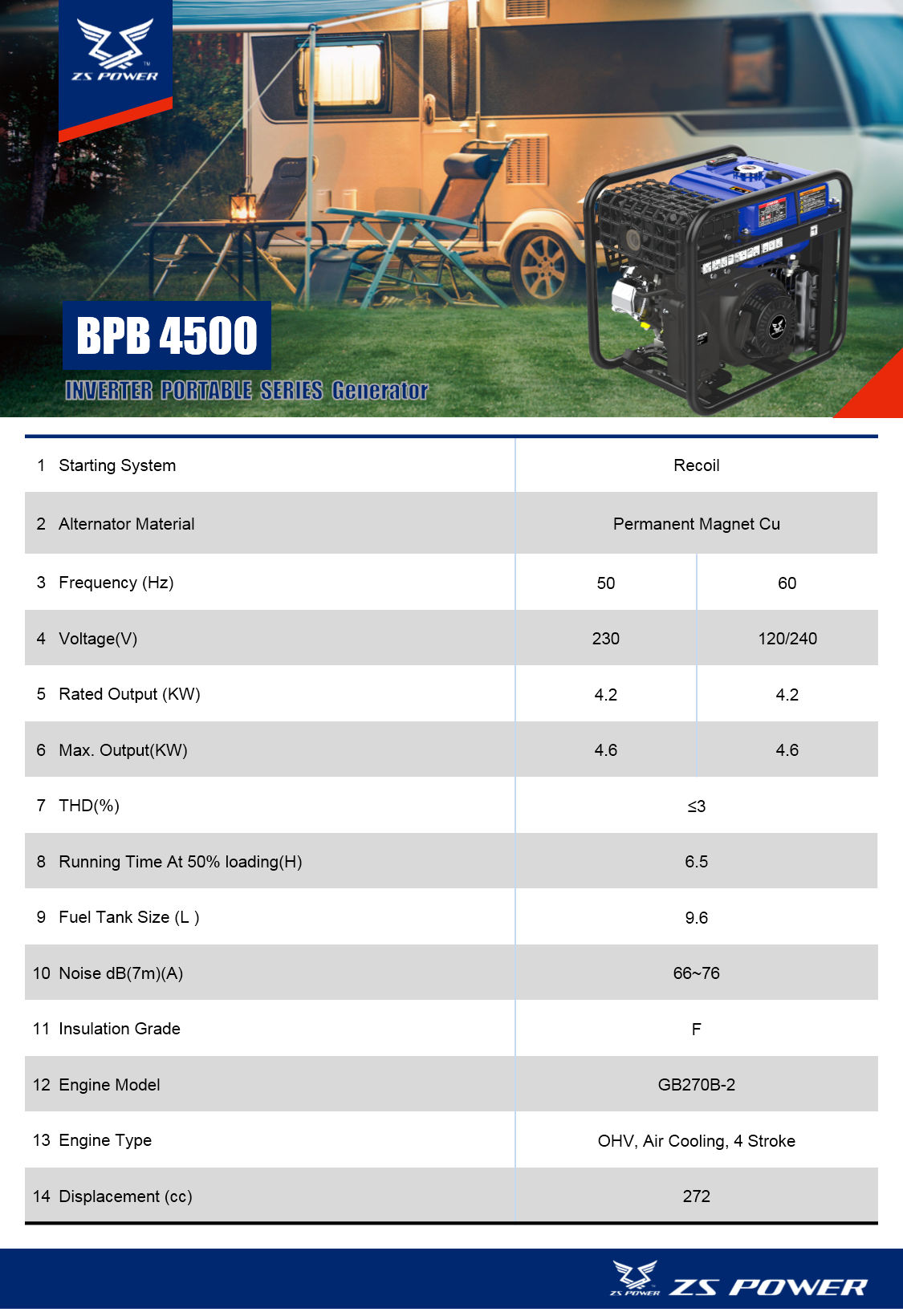

Technical Specifications
Overview
High-Efficiency Inverter Technology
This open-frame inverter generator bridges the gap between traditional power output and clean energy delivery. Engineered for versatility, it is suitable for demanding job sites, emergency backup power, and recreational use. The unit features a robust OHV 4-stroke engine and advanced inverter technology to ensure stable power delivery with low harmonic distortion.
Performance Metrics
Rated Output
4.2 KW
Rated Output
4.6 KW
Max Output
- Total Harmonic Distortion
- ≤3%
Engine Specifications
Engine Configuration
- Model: GB270B-2
- Type: OHV, Air-cooled, 4-stroke
- Displacement: 272cc
- Starting System: Recoil
Operational Data
Power Specifications
| Parameter | Value |
|---|---|
| Frequency | 50Hz / 60Hz |
| Voltage | 230V / 120-240V |
| Fuel Tank Capacity | 9.6 L |
| Running Time (50% load) | 6.5 Hours |
- Noise Level
- 71 dB(A)
Construction
- Build Quality
- Permanent Magnet Cu AlternatorInsulation Grade FOpen Frame Design
