Overview

Industrial Oilseed Pressing Line

This comprehensive oilseed pressing production line is engineered for high-efficiency mechanical oil extraction, providing consistent oil yield and high-quality pressing cakes suitable for further extraction. The system integrates a full succession of processes including seed cleaning, dehulling, flaking, cooking, and pressing. Designed for industrial-scale operations, it features robust construction and advanced control mechanisms to ensure reliable performance and ease of maintenance.

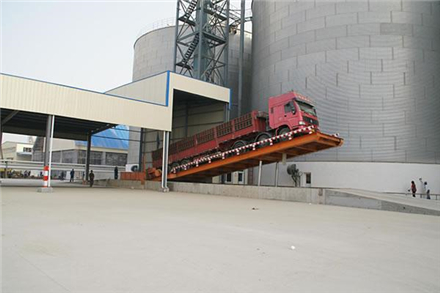

Overview of the oilseed pressing facility including unloading and storage infrastructure — Raw material unloading and storage section of the production line.

Technical Specifications

Production Capacity

100 t/d

Minimum Capacity

1,500 t/d

Maximum Capacity

Compatible Oilseeds: SoybeansRapeseedsCottonseeds

Process Workflow

Operational Workflow

Raw Material Unloading and Warehousing
Cleaning, Stone Removing, and Weighing
Crushing and Seed Dehulling
Softening and Adjustment
Flaking
Cooking and Pressing
Cooling

Equipment Details

Equipment by Processing Stage

Processing Stage	Key Equipment
Unloading & Warehousing	Automatic unloading machine, cleaning screen, elevator, silos
Cleaning & Weighing	Flat classifying screen, gravity stoner, magnetic separator

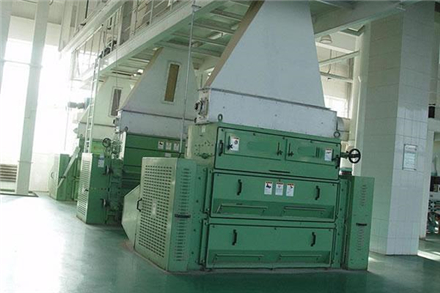

Crushing & Dehulling	Magnetic separator, crusher (huller), kernel/husk separator
Softening & Adjustment	Horizontal drum softening machine, conveying equipment

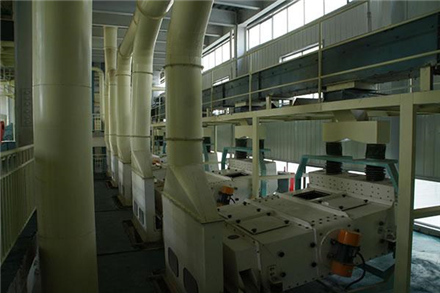

Cleaning and stone removing machinery units — Cleaning and stone removal equipment integrated into the processing line.

Advanced Features

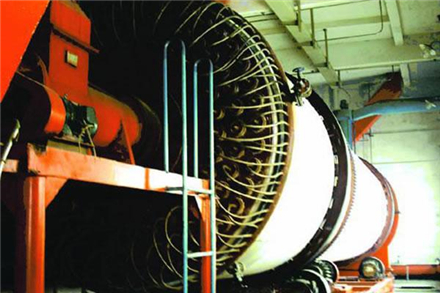

WRG-B Series Horizontal Drum Softening

The softening unit utilizes a rotating heating element with an advanced drainage system to prevent condensate accumulation. It features an automatic air extraction valve to remove non-condensable gases, enhancing heat transmission efficiency. The unit is equipped with a variable frequency motor, allowing for precise adjustment of conditioning time.
