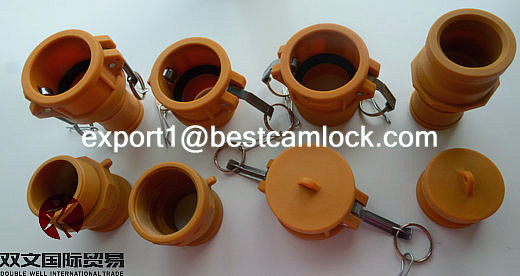

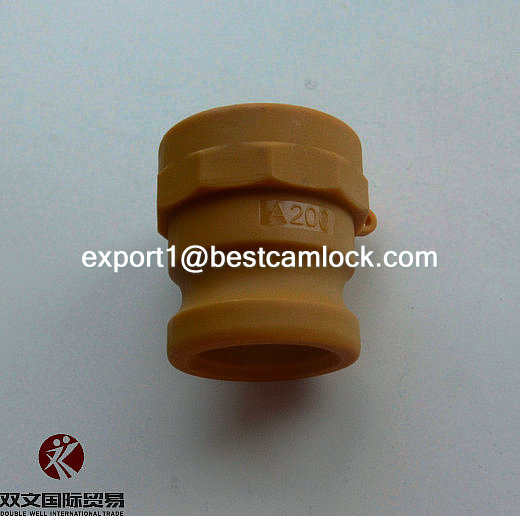

Nylon Quick Release Camlock Coupling
These nylon camlock couplings provide a lightweight and economical solution for fluid transfer. Their quick-release mechanism ensures fast connections and disconnections.
Technical Specifications
Product Overview
High-Performance Nylon Quick Release Couplings
These nylon camlock couplings are engineered to improve work efficiency by eliminating the complex operations required by traditional threads and flanges. Featuring a lightweight yet high-strength construction, they provide excellent abrasion and chemical resistance for reliable fluid transfer. Suitable for various low-pressure applications, these couplings ensure a secure, leak-proof connection for oil, water, gas, and chemical petroleum systems.
Technical Specifications
Available Sizes
- 1/2"
- 3/4"
- 1"
- 1 1/4"
- 1 1/2"
- 2"
- 2 1/2"
- 3"
- 4"
Working Pressure
100 psi
1" to 2 1/2" Sizes
50 psi
3" to 4" Sizes
- Temperature Range
- -30°F to 200°F
Materials & Compatibility
Component Materials
| Component | Material Options |
|---|---|
| Body | Nylon |
| Handle | Brass, Stainless Steel |
| Gasket | NBR, EPDM, Viton, PTFE |
| Safety Pin | Carbon Steel (Plated), Stainless Steel |
Thread Standards
ISO228 (BSP)ISO7 (BSPT)ANSI B1.20 (NPT)
- Compatible Media
- OilWaterGasChemical Petroleum
Applications
Typical Applications
- Garden hoses
- Suction hoses
- Low pressure hose-to-pump connections
- Tank equipment connections
