Technical Specifications
Product Overview

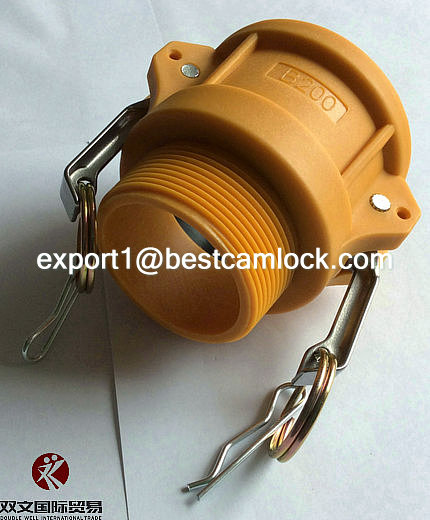

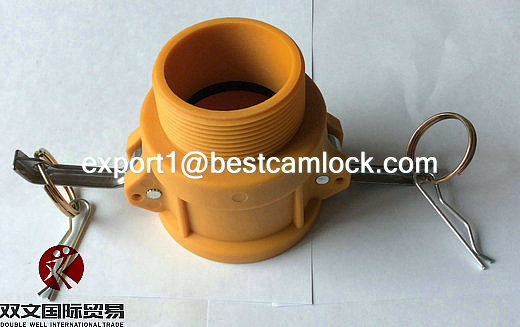

High-Performance Nylon Camlock Coupling
This nylon camlock coupling is engineered for efficient fluid transfer, offering an excellent alternative to traditional threaded or flanged connections. Constructed from high-strength, lightweight nylon, it provides superior resistance to abrasion and chemicals, making it ideal for agricultural, industrial, and construction environments. The quick-release design eliminates complex operations, significantly improving work efficiency across various low-pressure hose applications.
Technical Specifications
Available Sizes
- 1/2"
- 3/4"
- 1"
- 1 1/4"
- 1 1/2"
- 2"
- 2 1/2"
- 3"
- 4"
Working Pressure
100 psi
1" to 2 1/2" Sizes
50 psi
3" to 4" Sizes
- Thread Standards
- ISO228 (BSP)ISO7 (BSPT)ANSI B1.20 (NPT)
- Temperature Range
- -30°F to 200°F
Materials & Compatibility
Material Benefits
LightweightAbrasion ResistantChemical ResistantHigh Strength
Gasket Material Options
- NBR
- EPDM
- Viton
- PTFE
- Handle Material
- Brass & Stainless Steel
Applications
Typical Applications
- Garden hoses
- Suction hoses
- Low pressure hose connections
- Pumps
- Tanks
- Compatible Media
- OilWaterGasChemicalsPetroleum
