Technical Specifications
Overview

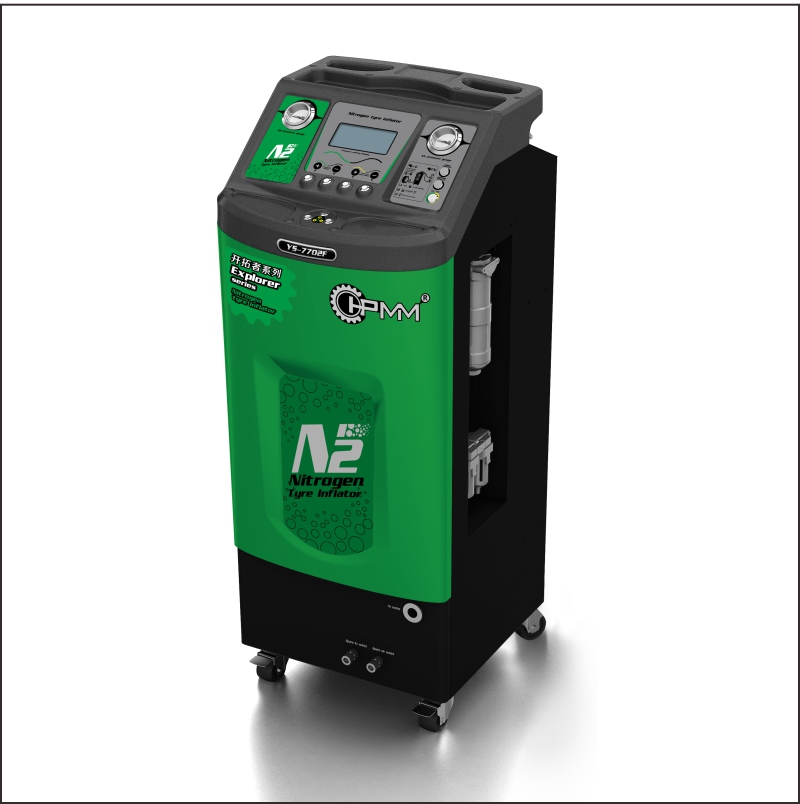

Professional Nitrogen Tire Inflation System
This high-performance nitrogen generator and tire inflator is engineered for efficient, full-automatic operation on light truck and truck tires. It features independent vacuum generation and integrated nitrogen inflation capabilities to ensure precise tire pressure management. Equipped with advanced filtration systems to remove water and oil, this portable unit delivers high-purity nitrogen for reliable, long-term tire performance.
Technical Specifications
- Nitrogen Purity
- 95% - 99%
- Power Supply
- AC220V/1PH/50Hz
- Air Inlet Pressure
- 9 - 10 bar (130 - 145 psi)
- Internal N2 Tank Capacity
- 50 L
Performance Metrics
Key Performance Metrics
50 L/min
Max Output Capacity
6 bar
Max Output Pressure
Required Air Compressor Specs
| Metric | Value |
|---|---|
| Power | 5.5 - 7.5 kW |
| Pressure | 10 bar |
| Flow Rate | 1 - 1.5 m³/Min |
Features & Equipment
Included Accessories
- 10M Hose Reel
- Water/Oil Filter & Separator
- High Precision Filter
- System Capabilities
- Full-AutomaticPortableVacuum GenerationLCD DisplayAutomatic Drain
