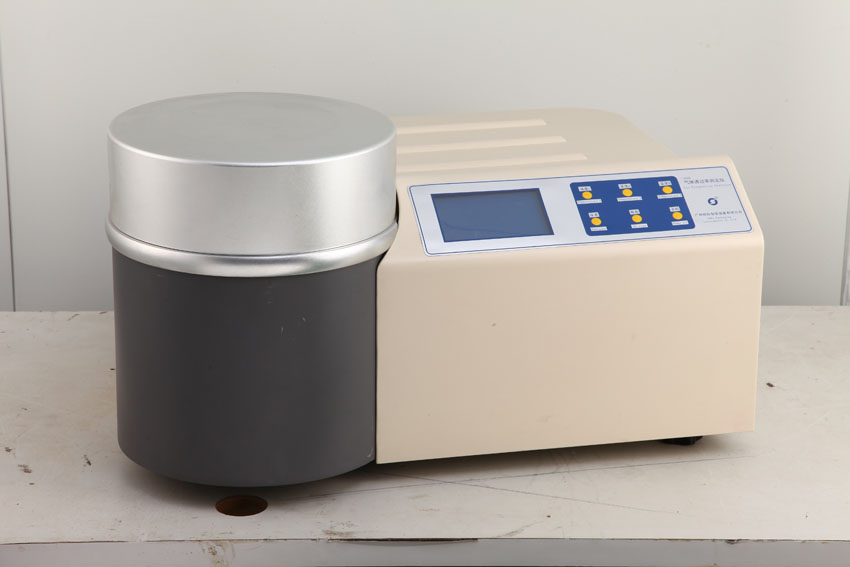

Nitrogen Gas Permeability Tester
This instrument tests the gas transmission rate of packaging materials. It is widely used in the food, pharmaceutical, and flexible packaging industries for quality control.
Technical Specifications
Product Overview
Precision Gas Permeability Testing
This Nitrogen Gas Permeability Tester is a high-precision instrument designed to measure the gas transmission rate (GTR) of various packaging materials. It is widely utilized in the food, pharmaceutical, and flexible packaging industries to ensure quality control for plastic films, barrier materials, and sheets. By employing a differential pressure method, the device accurately monitors gas permeation, providing essential data for material selection and research.
Technical Performance
Standard Measuring Range
0.02 cm3/m2·day·0.1MPa
Minimum Range
5,000 cm3/m2·day·0.1MPa
Maximum Range
Expanded Measuring Range
0.2 cm3/m2·day·0.1MPa
Min (Expanded Mode)
50,000 cm3/m2·day·0.1MPa
Max (Expanded Mode)
- Measuring Accuracy
- 0.01 cm3/m2·day·0.1MPa
Compliance & Standards
- Supported Standards
- ISO 2556-2001ISO 15105-1GB/T 1038-2000ASTM D1434-82(2003)YBB00082003
Applications
Target Industries
- Food Industry
- Pharmaceutical Industry
- Flexible Packaging Materials
- Plastic Film Manufacturing
- Barrier Materials Research
- Quality Control Institutions
- Testable Gases
- O2CO2N2
