Nitrogen Gas Permeability Analyzer
This gas permeation tester measures the nitrogen transmission rate of packaging materials. It is widely used in the food, pharmaceutical, and flexible packaging industries for testing plastic film, barrier materials, and sheets.
Technical Specifications
Overview
Precision Gas Permeability Testing

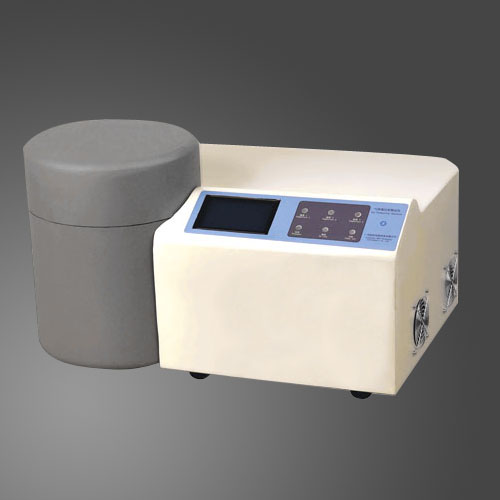

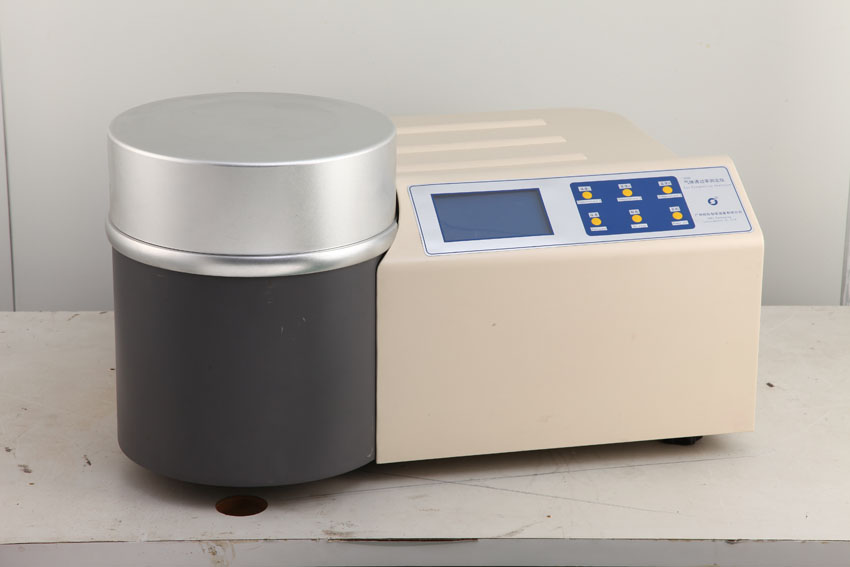

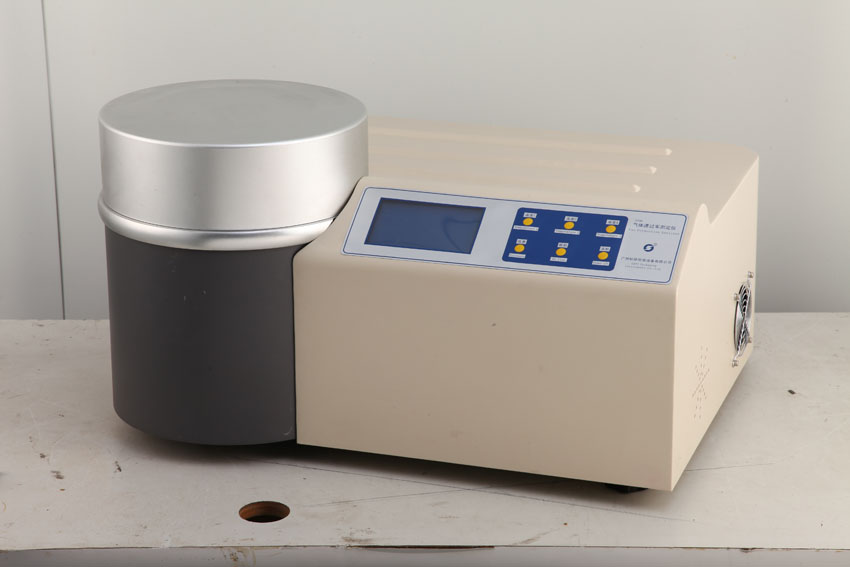

The N500 Gas Permeability Analyzer is a professional-grade instrument designed to measure the gas transmission rate (GTR) of various packaging materials. It utilizes the differential pressure method to provide accurate testing for industries such as food, pharmaceuticals, and flexible packaging. With its robust construction and intuitive interface, this device ensures reliable quality control and research capabilities for barrier materials.
Technical Specifications
- Measuring Range (Standard)
- 5000 cm3/m2·day
- Measuring Range (Expanded Mode)
- 50000 cm3/m2·day
- Measuring Accuracy
- 0.01 cm3/m2·day
Compliance & Standards
- Supported Standards
- ISO 2556-2001ISO 15105-1GB/T 1038-2000ASTM D1434-82YBB00082003
Application
Target Industries
Food IndustryPharmaceuticalsFlexible PackagingMaterials ScienceResearch & Development
Testable Materials
- Plastic film
- Barrier materials
- Sheets
- Metal aluminum
- PVC sheets
Performance Metrics
Key Performance Metrics
0.02 cm3/m2·day
Min Range
50,000 cm3/m2·day
Max Range (Expanded)
