Multifunctional Power Amplifier with Digital Echo Processor
This multifunctional power amplifier is designed for high-quality audio applications. It features a 24-bit codec with a 48kHz sampling rate, ensuring clear and detailed sound reproduction.
Technical Specifications
Overview
Professional Audio Processing

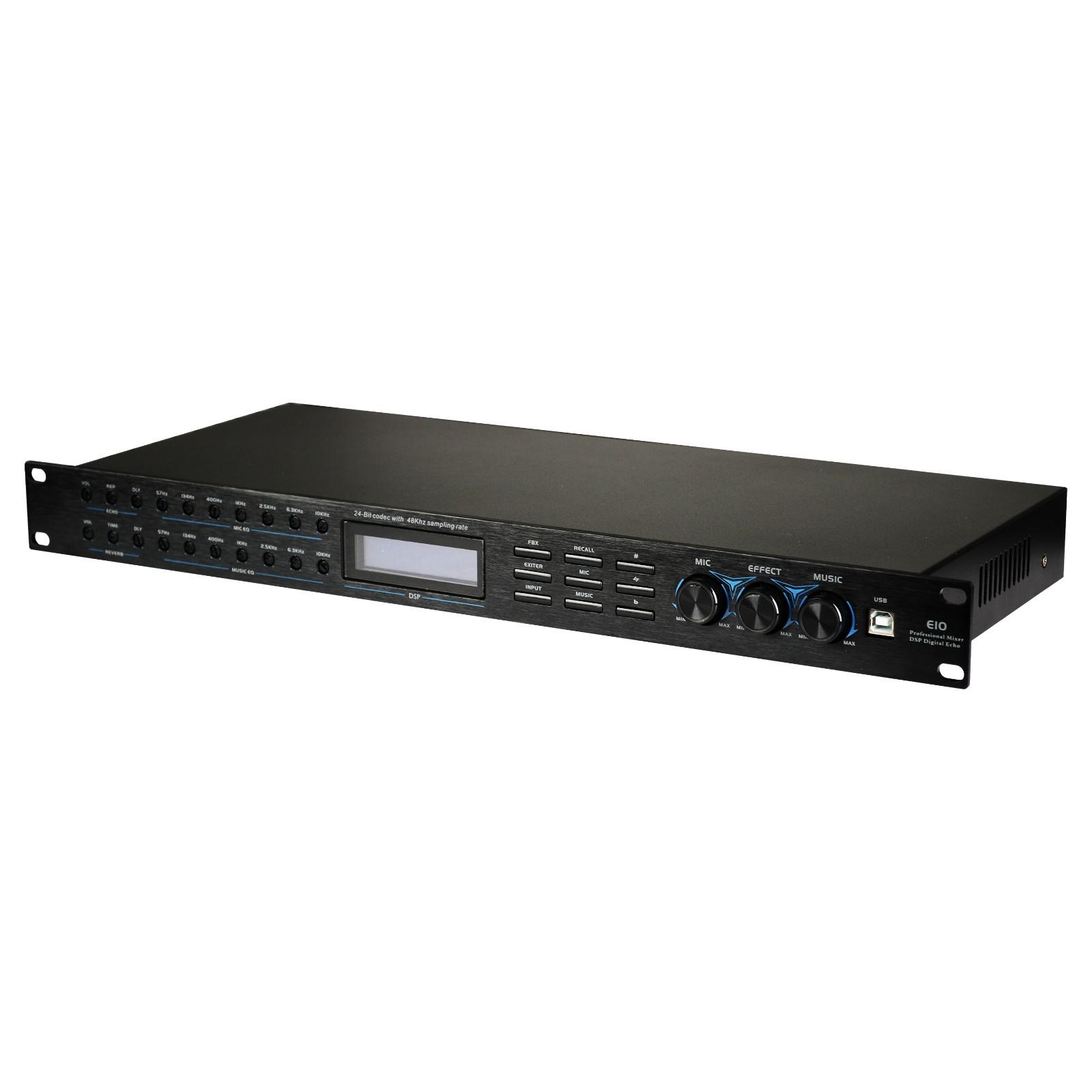

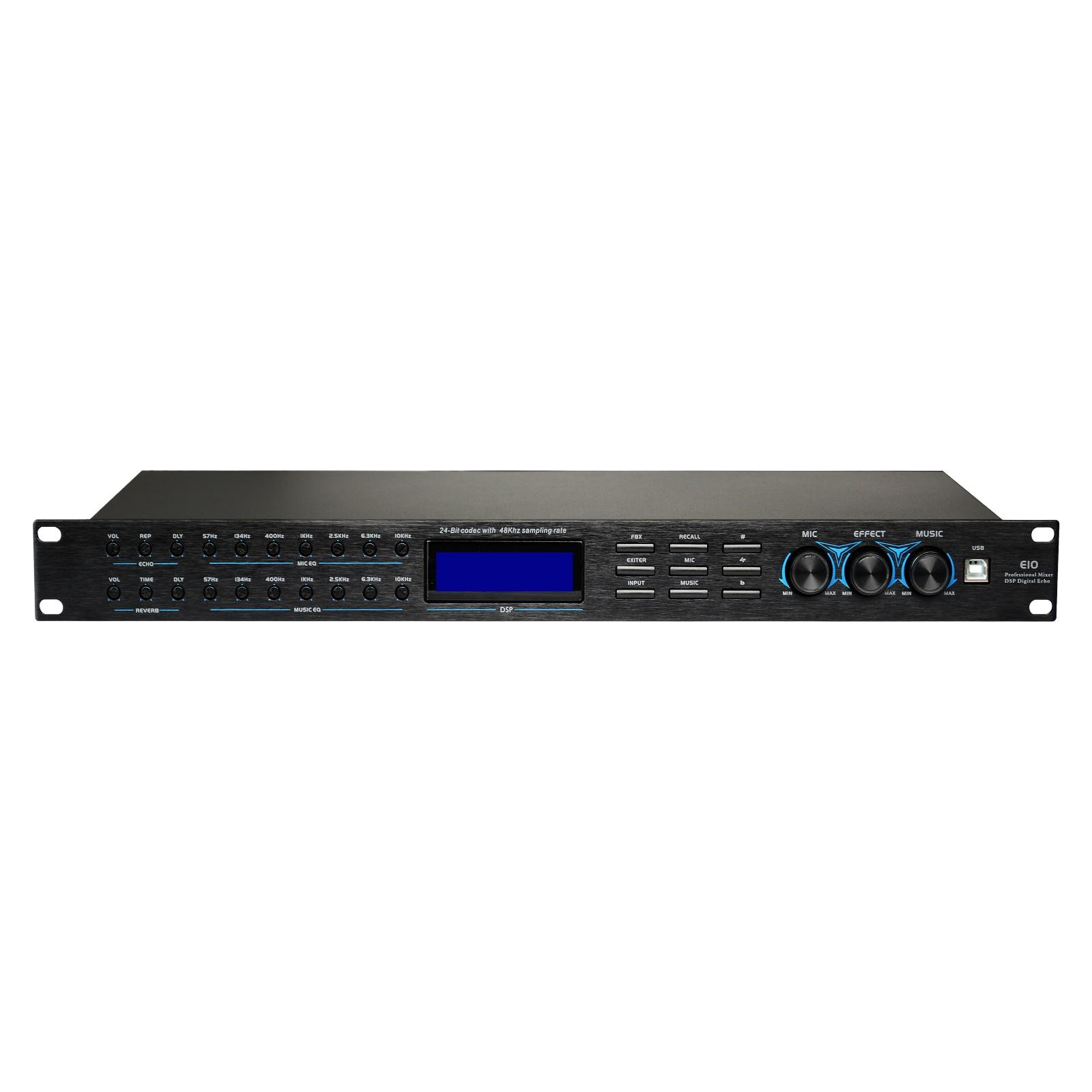

The E10 is a versatile multifunctional power amplifier and digital echo processor designed for high-fidelity audio environments. It utilizes a 24-bit codec with a 48kHz sampling rate to ensure precise sound reproduction and detailed audio processing. With dedicated controls for microphone, music, and effect levels, along with comprehensive EQ and DSP capabilities, this unit is ideal for professional audio setups requiring flexible sound shaping.
Technical Specifications
Performance Highlights
24 bit
Codec Bit Depth
48 kHz
Sampling Rate
- Music Level
- 775 mVrms
- Music SNR
- 80 db
- Microphone Level
- 50 mVrms
- Microphone THD
- 0.1
- Center Channel THD
- 0.003
- Frequency Response
- 20Hz - 20kHz
- Power Consumption
- 10 W
Connectivity & Features
Output Channels
- Center
- Subwoofer
- Left/Right
- REC
- Input Interfaces
- USBXLRRCAOpticalBGMAUX
- DSP & Processing
- Digital Echo24-bit Codec48kHz SamplingPEQ 1-7 (Music)PEQ 1-4 (Center)
