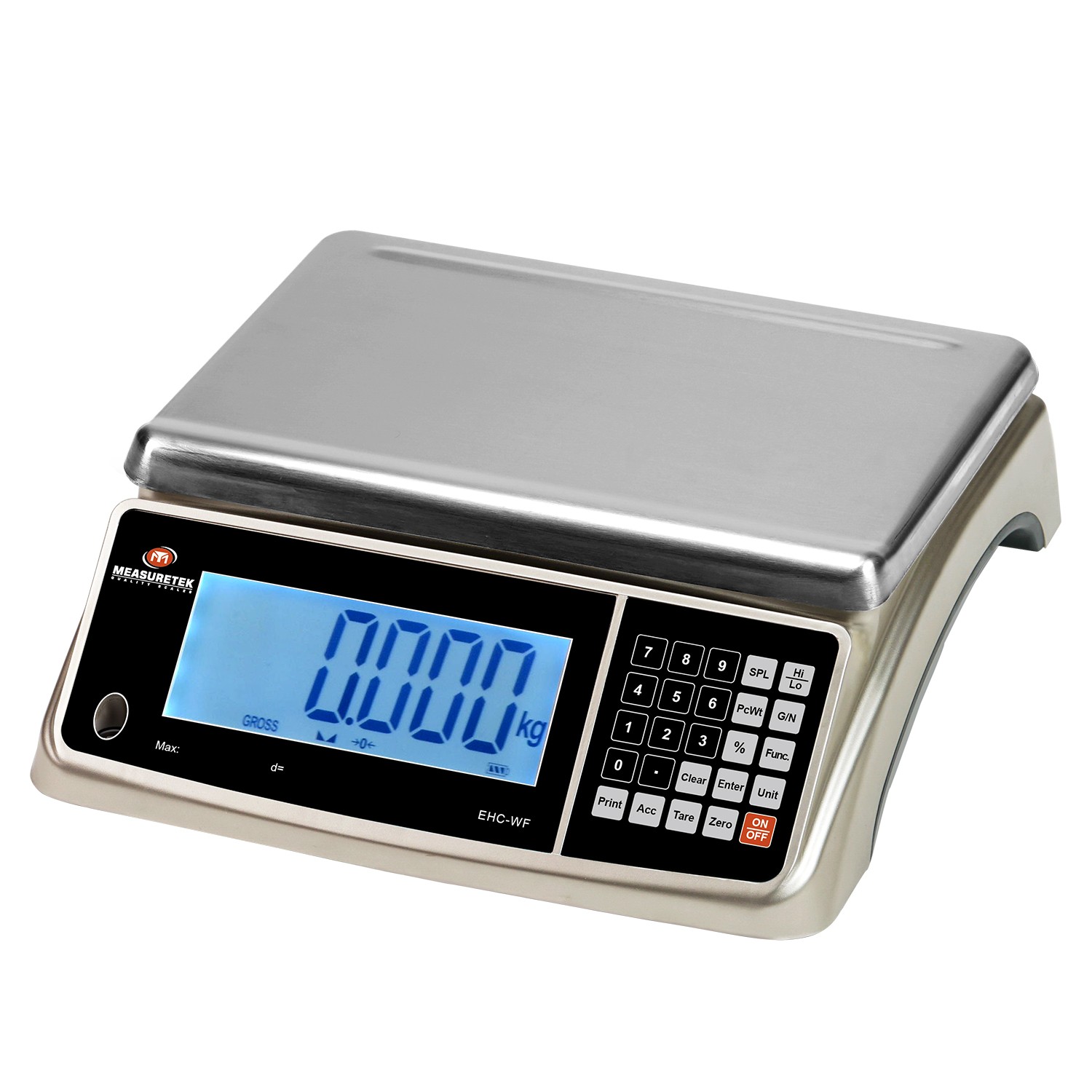

Multifunctional Digital Weighing Scale with Counting and Percent Weighing
This digital weighing scale is designed for warehouse, shop, and industrial weighing applications. It features a high-precision load cell, a durable ABS housing, and a stainless steel weighing platform.
Technical Specifications
Overview
Professional Digital Weighing Solution

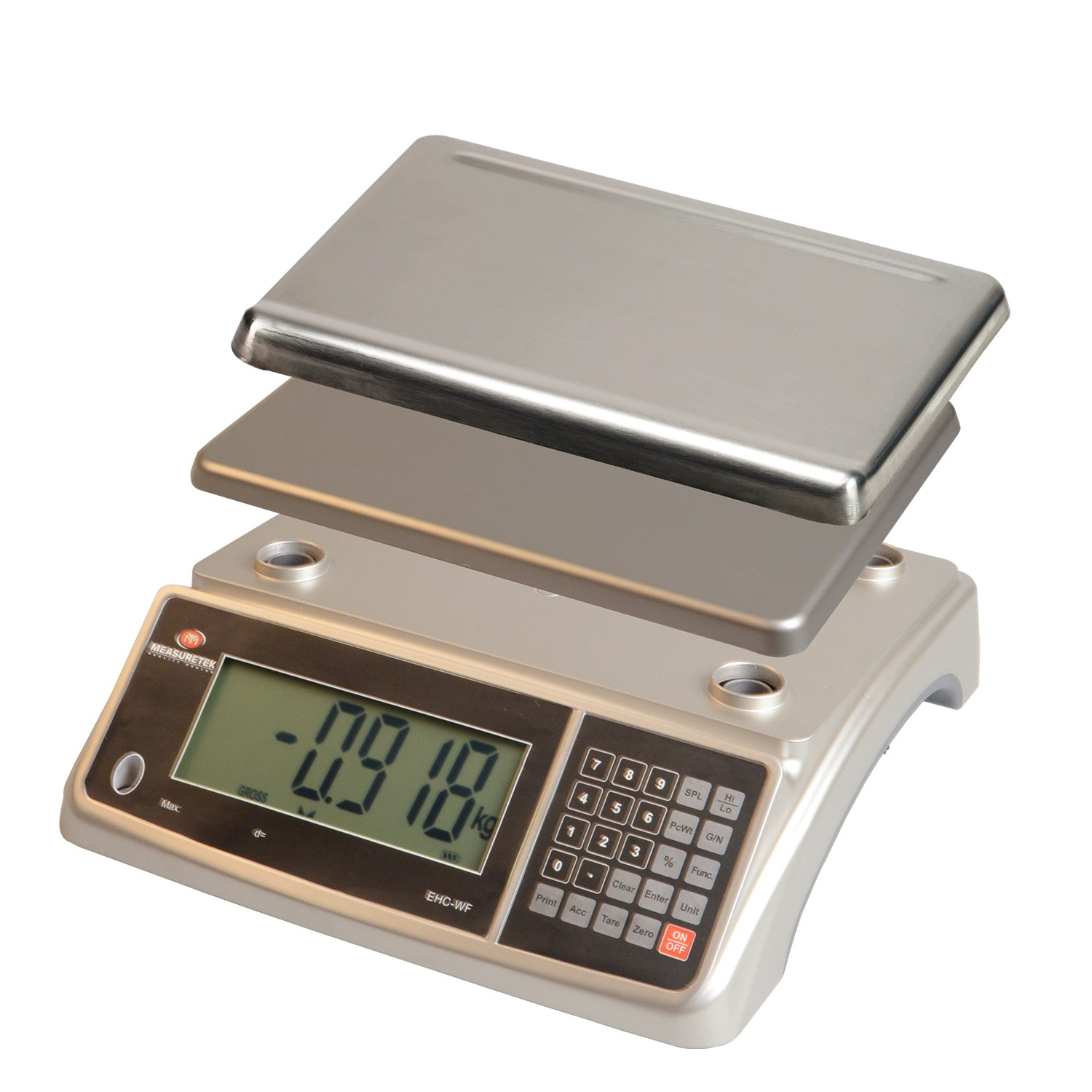

This multifunctional digital scale is engineered for high-precision weighing, counting, and percent-weighing applications in warehouse, retail, and industrial environments. Featuring a rugged ABS housing and a removable stainless steel platform, it ensures durability and easy sanitation. The system offers versatile connectivity with RS232 and USB ports, supported by a high-precision load cell for reliable, repeatable measurements.
Technical Specifications
- System Resolution
- 1/30,000
- Display
- 2-inch (50mm) high backlit LCD
- Power Source
- 12V 500mA Adapter6V 4Ah Rechargeable Battery
- Connectivity
- RS232USB
- Operating Temperature
- -10°C to 40°C (14°F to 104°F)
Capacity & Models
Model Capacity Table
| Model | Capacity (Metric) | Capacity (Imperial) |
|---|---|---|
| EHC-WF-6 | 6kg x 0.2g | 15lb x 0.0005lb |
| EHC-WF-15 | 15kg x 0.5g | 30lb x 0.001lb |
| EHC-WF-30 | 30kg x 1g | 60lb x 0.002lb |
| EHC-WF-60 | 60kg x 2g | 120lb x 0.005lb |
Physical Construction
- Platform Dimensions
- 335mm x 225mm (13.2" x 8.9")
- Housing Material
- Rugged ABS
- Platform Material
- Stainless Steel
Certifications
Compliance
CEWEEEUL Approved AdapterEnergy Approved
