Technical Specifications
Product Overview
Advanced Biometric Security

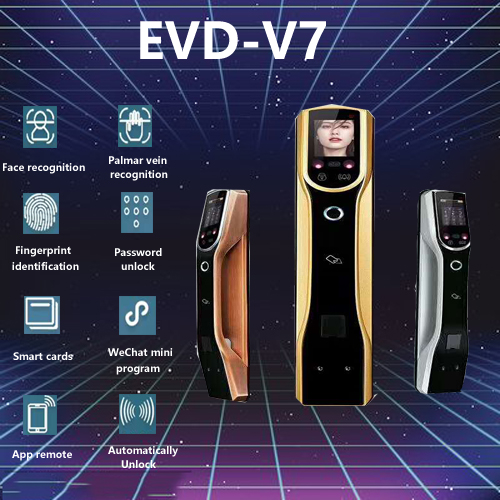

The EVDLV7 is a high-performance, full-automatic smart lock designed for modern residential and professional environments. It integrates cutting-edge multispectral sensors and facial recognition technology to overcome common environmental challenges like lighting variations. With a diverse array of access methods and robust anti-prizing hardware, this lock offers both convenience and premium security for apartments and office buildings.
Key Features
Security Features
- Full-automatic locking/unlocking
- Anti-prizing construction
- Beyond C lock set technology
- Two-way intercom system
- Human body sensor
- Door bell function
- Access Methods
- Facial RecognitionPalm VeinFingerprintCode/PasswordSmart CardPhysical KeyApp Control
Performance Metrics
Biometric Accuracy
0.15 %
False Rejection Rate
0 %
False Acceptance Rate
500 DPI
Sensor Resolution
Storage Capacity
| Method | Limit |
|---|---|
| Fingerprint | 300 |
| Password | 300 |
| Mifare Card | 300 |

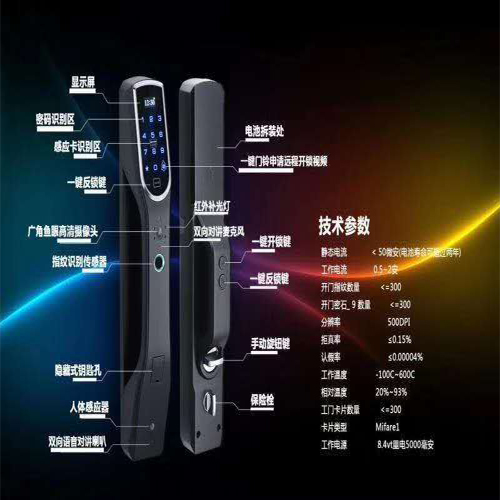

Technical Specifications
Power & Electrical
- Capacity: 5000mAh Lithium Battery
- Voltage: 8.4V
- Operating Current: 0.5 - 2A
- Static Current: <50μA
- Operating Environment
- Temperature: -10°C to 60°C; Humidity: 20% to 93%
