Multi-Station Wire Drawing Machine
This multi-station wire drawing machine efficiently reduces metal wire diameters. It features a cooling system and precise tension control for consistent wire quality.
Technical Specifications
Product Overview
Industrial Wire Drawing Solution

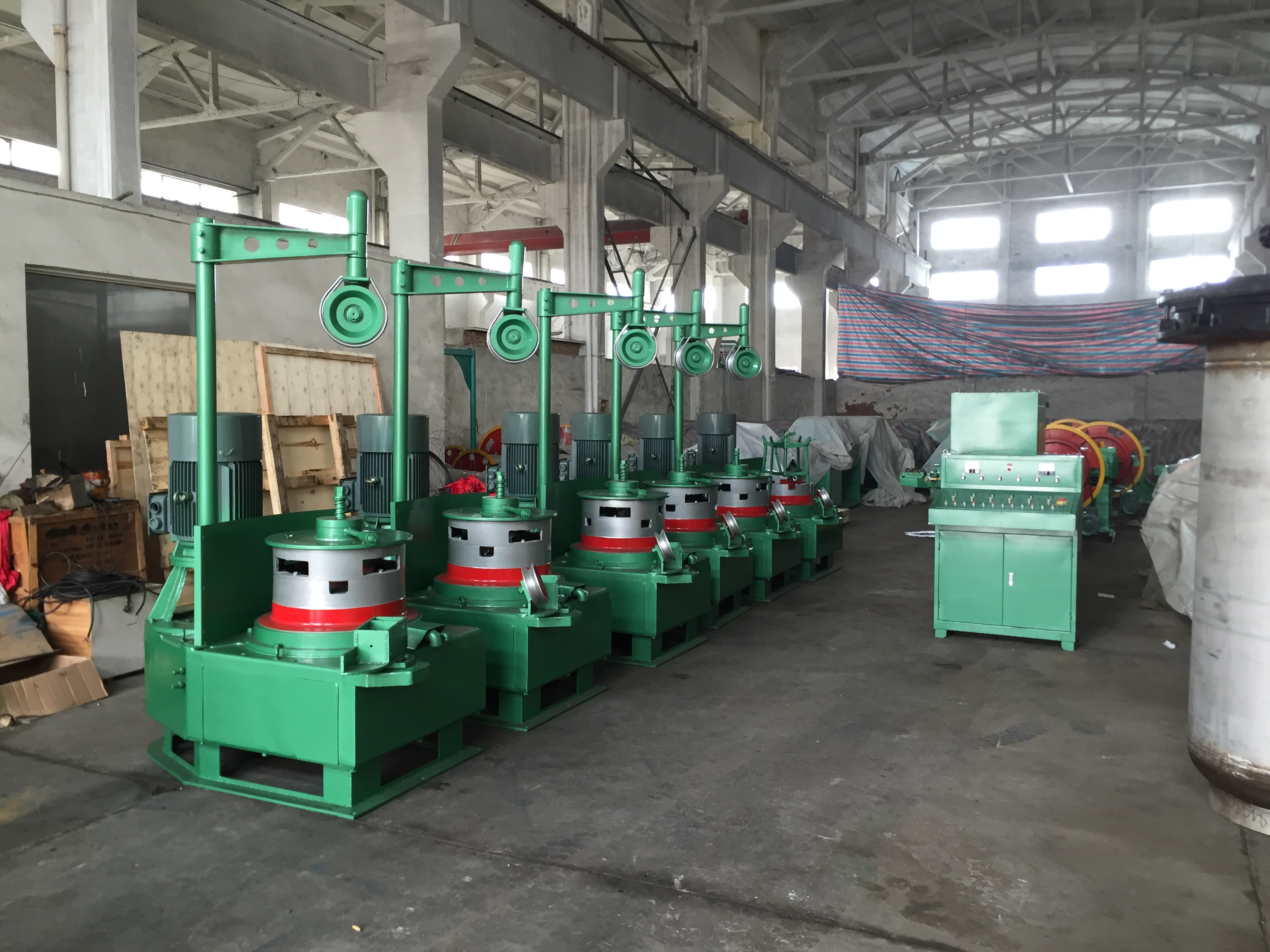

This multi-station wire drawing machine is designed for efficient, continuous reduction of wire diameter for high, medium, and carbon steel, as well as copper, aluminum, and alloys. It features a robust multi-stage drawing process with integrated cooling systems to manage heat and maintain wire integrity. The machine is engineered for reliability in industrial environments, such as wire-steel, metal mesh, and nail-making factories.
Technical Specifications
Performance Metrics
346.9 m/min
Max Block Speed
30 kW
Max Total Power
2,000 kg
Max Weight
Model Specifications

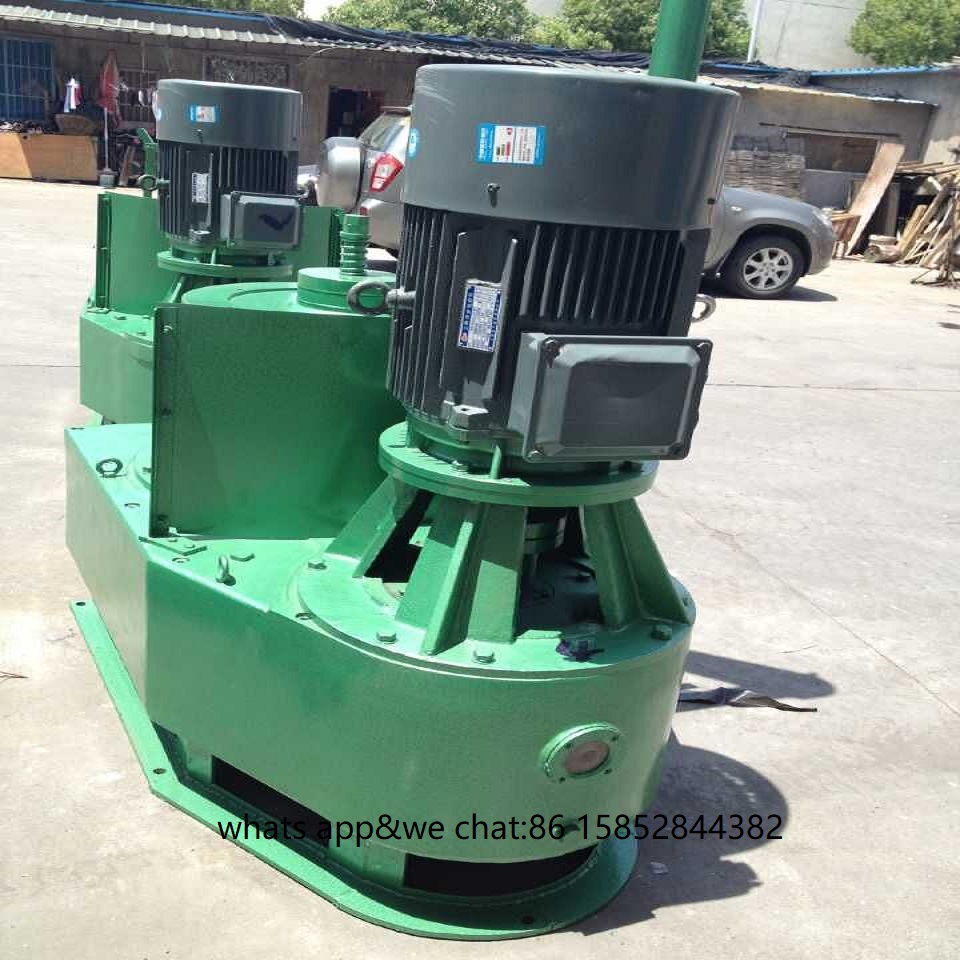

| Specification | LW-1-6/560 | LW-1-7/450 | LW-1-6/350 |
|---|---|---|---|
| Max Material Diameter | 6.5mm | 3.4mm | 2.5mm |
| Min Material Diameter | 2mm | 1mm | 0.75mm |
| Total Power | 18.5-30kw | 7.5-11kw | 7.5-11kw |
| Weight | 2000kg | 1500kg | 1000kg |
Operational Features
Safety & Cooling Systems
- Integrated inter-wall block cooling
- Wortle cooling via water submersion
- Safety halt gear at operating block
- Carvel or linkage operation modes
- Compatible Materials
- High Carbon SteelMedium Carbon SteelCopperAluminumAlloy
Certifications
Quality Compliance
CE CertifiedISO 9001
