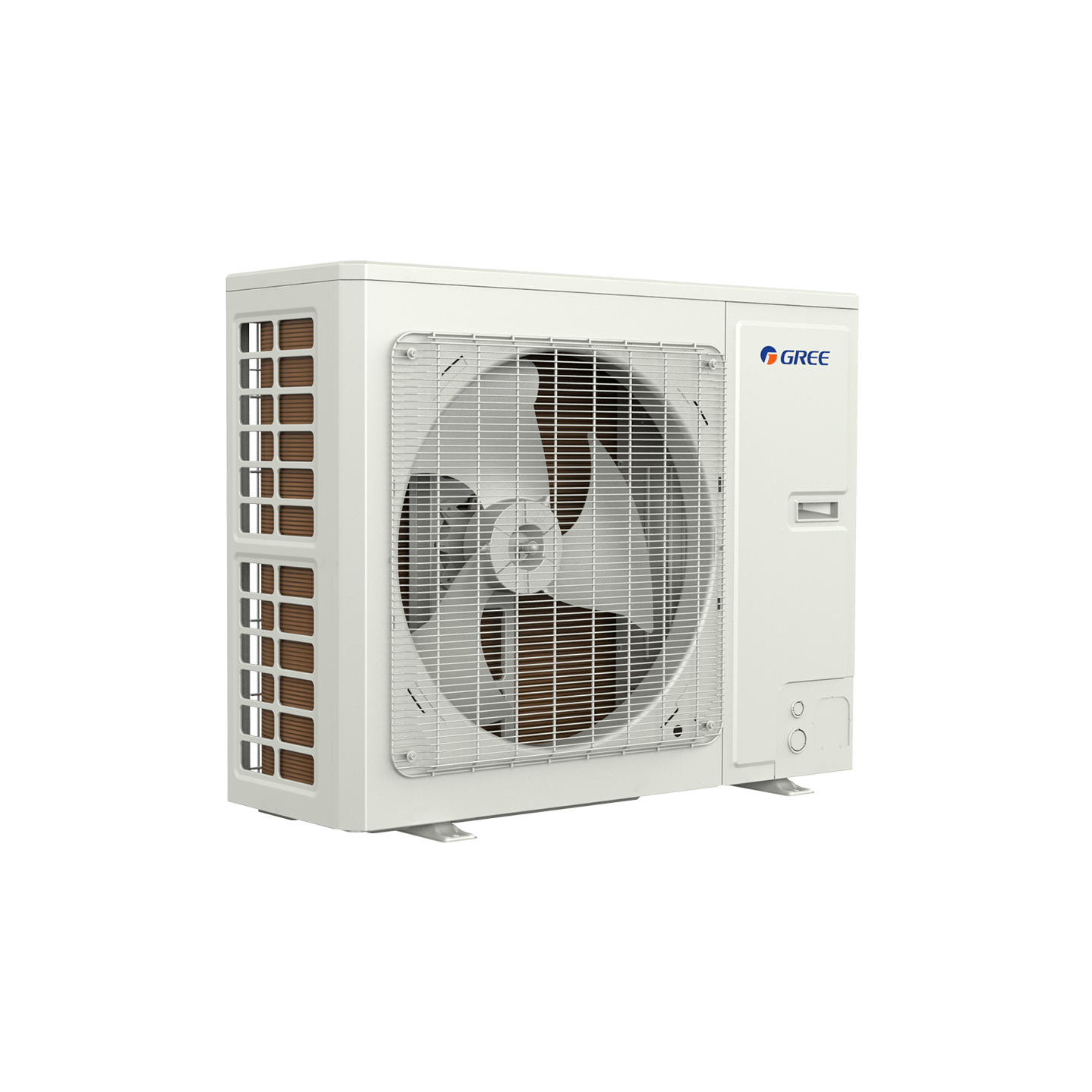

Multi-Functional Air to Water Heat Pump
This multi-functional air to water heat pump is engineered for efficient heating and cooling. It extracts heat from the ambient air to warm water, suitable for space heating, domestic hot water, or underfloor heating systems.
Technical Specifications
Overview
High-Efficiency Multi-Functional Heat Pump
This advanced air-to-water heat pump provides a versatile and sustainable solution for space heating, cooling, and domestic hot water production. Engineered for high performance in diverse climates, it maintains effective operation at ambient temperatures as low as -25°C while delivering water outlet temperatures up to 60°C. Featuring a compact, service-friendly design and integrated intelligent controls, this unit is designed to meet modern residential and commercial heating demands efficiently.
Performance
Performance Metrics
5.1 SCOP
Energy Efficiency (A7W35)
60 °C
Max Water Outlet Temp
-25 °C
Min Ambient Temp
Energy Rating
A+++
- Refrigerant Specification
- R32Low GWP 675
Installation & Maintenance
Installation Advantages
- Compact single-fan outdoor unit design
- Built-in key hydraulic components
- Front-side access for PCB and component maintenance
- No side maintenance clearance required
Physical Dimensions
| Unit Type | Dimensions (mm) |
|---|---|
| Split-type indoor | 860 x 460 x 365 |
| Monobloc indoor | 600 x 600 x 1750 |
Intelligent Control
System Capabilities
- High-resolution colorful touch interface
- Supports 20 languages
- APP intelligent control and BMS compatibility
- Integration with solar power and gas furnaces
- Advanced scheduling and disinfection modes
