Multi-Cylinder Hydraulic Cone Crusher
This cone crusher utilizes a multi-cylinder hydraulic system for reliable crushing force and precise control. Its heavy-duty construction ensures durability and is ideal for secondary and tertiary crushing stages.
Technical Specifications
Overview
High-Efficiency Crushing Performance

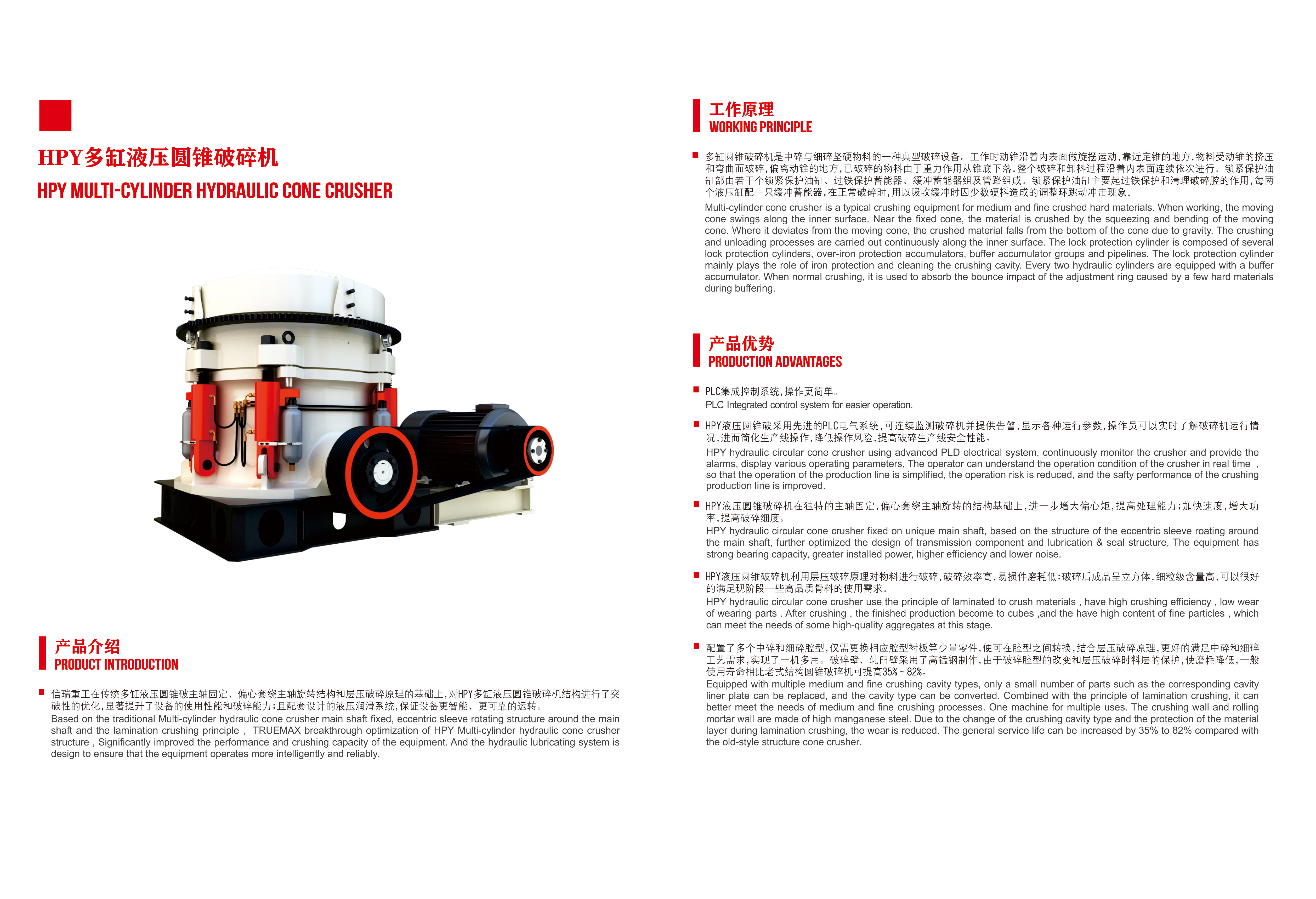

This multi-cylinder hydraulic cone crusher is engineered for medium and fine crushing of hard materials. By utilizing a fixed main shaft and eccentric sleeve rotation, it delivers superior crushing capacity and efficiency through the principle of laminated crushing. The advanced hydraulic lubrication system ensures reliable operation, while the PLC control system provides real-time monitoring and simplified management for enhanced safety and performance.
Key Features
Operational Advantages
- PLC integrated control system for simplified operation
- Advanced electrical monitoring with real-time parameter display and alarms
- Laminated crushing principle produces cubic-shaped aggregates with high fine particle content
- High manganese steel wear parts for extended service life
- Interchangeable cavity types for versatile processing requirements
Technical Specifications
Model Performance Data
| Model | Capacity (t/h) | Standard Power (kW) | Max Power (kW) |
|---|---|---|---|
| HPY200 | 90-250 | 160 | 160 |
| HPY300 | 120-630 | 220 | 250 |
| HPY400 | 135-790 | 315 | 315 |
| HPY500 | 220-1200 | 400 | 400 |
| HPY800 | 310-1050 | 630 | 630 |
Wear Part Longevity Increase
35 %
Minimum Service Life Increase
82 %
Maximum Service Life Increase
- Available Cavity Types
- Extra-coarse (C1)Coarse (C2)Medium (M)Fine (F1)Extra-fine (F2)
- Working Principle
- Laminated crushing with fixed main shaft and rotating eccentric sleeve
