Monocrystalline Silicon Solar Module

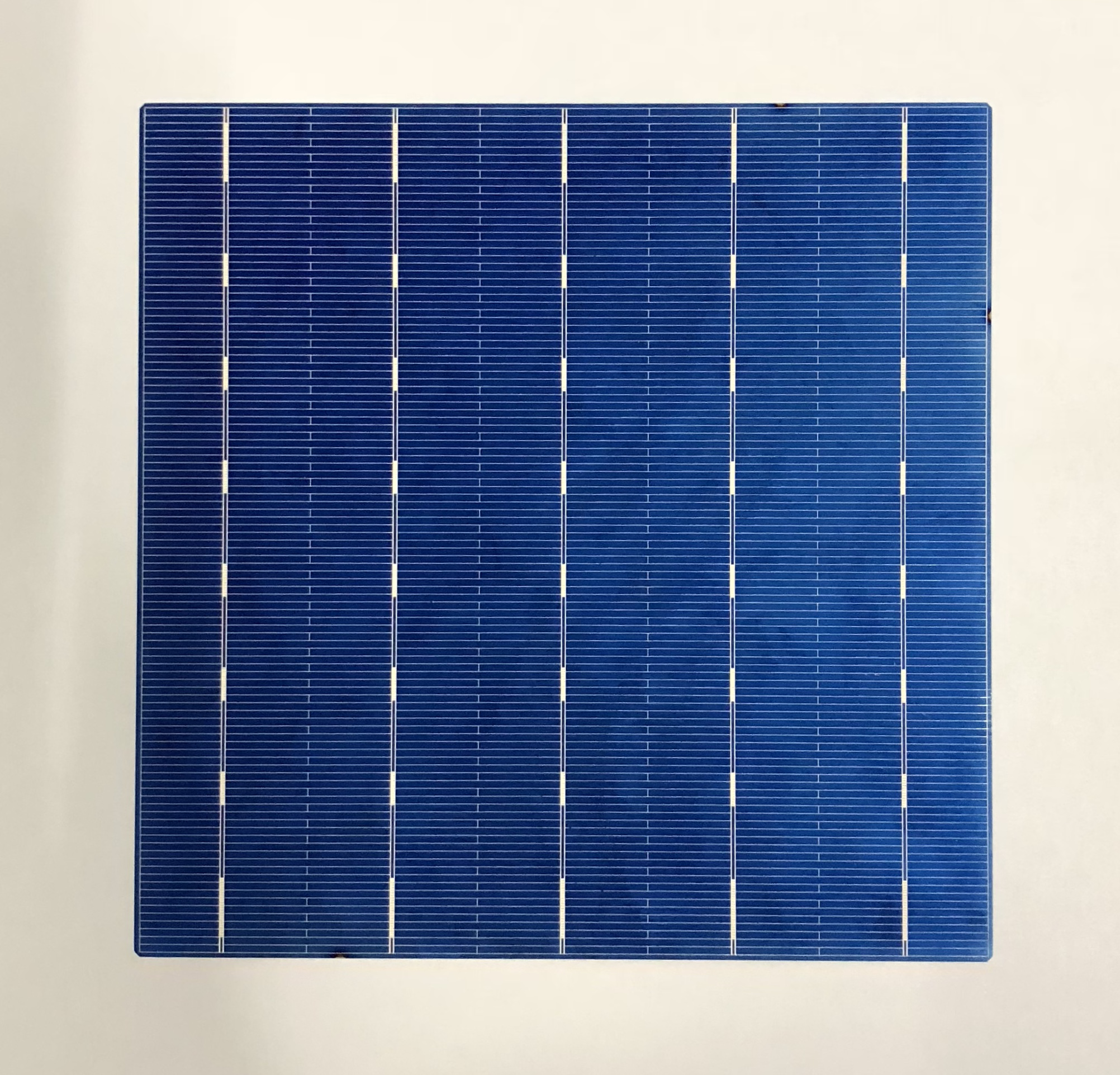

This high-efficiency solar module utilizes a monocrystalline silicon solar cell array. Designed for durability, it features an anti-reflective coating and multiple busbars for efficient current collection.
Technical Specifications
Overview
High-Efficiency Monocrystalline Silicon Solar Modules
These monocrystalline silicon solar modules offer exceptional versatility with power ratings ranging from 5W to 450W, making them suitable for everything from small-scale residential setups to large utility-scale photovoltaic power stations. Engineered for durability and optimized energy conversion, these modules feature advanced anti-reflective coatings and high-conductivity busbar technology to maximize electricity yield even in challenging conditions. They are designed to reliably power grid-tied or off-grid systems and can be integrated seamlessly with energy storage solutions.
Technical Performance
Key Performance Metrics
Electrical Range Specifications
| Parameter | Range |
|---|---|
| Rated Voltage | 6V - 36V |
| Rated Current | 1A - 20A |
| Open-circuit Voltage | 7V - 50V |
| Short-circuit Current | 1.1A - 11.47A |
Design and Compatibility
Cell and Physical Specs
- Busbar configurations: 5 or 9
- Cell sizes: 156.75x156.75mm, 158.75x158.75mm, 166x166mm
- Power Tolerance: 0 to +3%
- Application Areas
- Photovoltaic Power StationsTraffic Signal SystemsEnergy Storage ChargingGrid-tied SystemsOff-grid Power Generation
