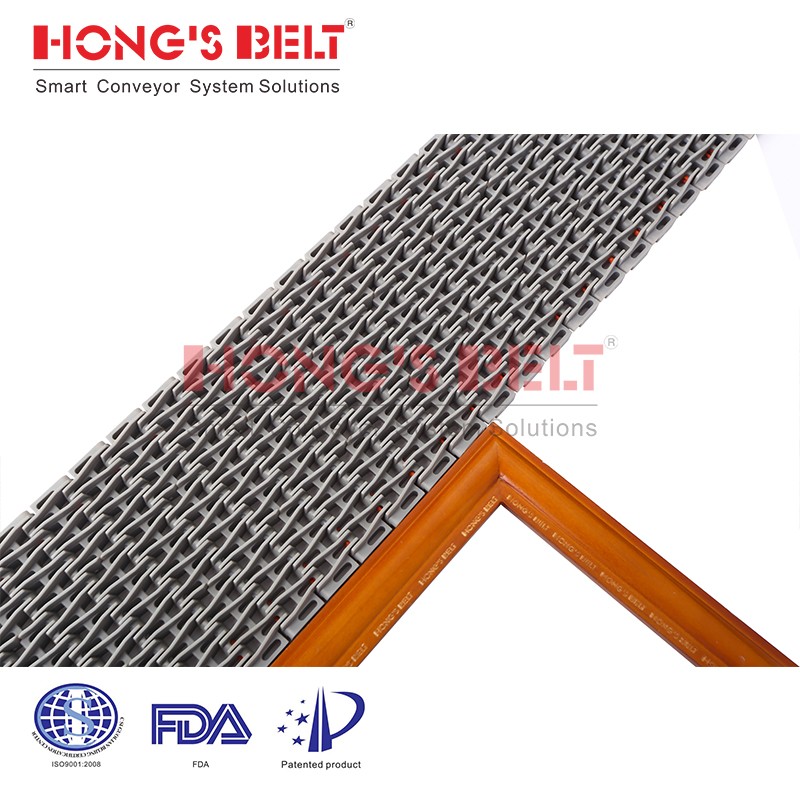

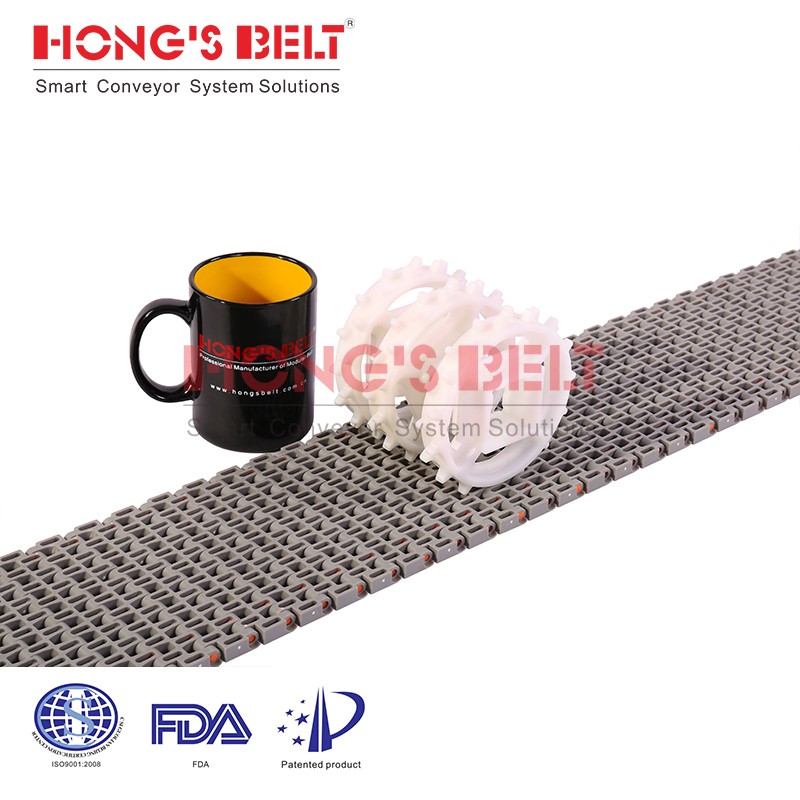

Modular Plastic Conveyor Belt for Bakery Applications
This modular plastic conveyor belt is designed for bakery applications. It offers durability and easy maintenance for conveying dough and baked goods.
Technical Specifications
Overview
Modular Plastic Conveyor Belt
This modular plastic conveyor belt is engineered specifically for the food industry, offering a robust and hygienic solution for bakery and processing applications. Its modular design facilitates easy assembly, maintenance, and cleaning, significantly reducing downtime. The belt features high load capacity and is constructed from food-approved materials, ensuring reliability and compliance with safety standards.
Technical Specifications
- Pitch
- 25.4 mm
- Thickness
- 16.1 mm
- Minimum Width
- 50 mm
- Open Area
- 39.2 %
- Rod Diameter
- 4.9 mm
- Working Temperature
- -40°C to 260°C
- Available Materials
- PPPOMPEPA
- Available Colors
- WhiteBlueGrayNatureDark-brown
Features & Compatibility
Certifications
FDA ApprovedEU Approved
Sprocket Dimensions
- 8T-2R
- 10T-2R
- 12T-2R
- 15T-2R
- 18T-2R
- 20T-2R
- 20T-2R-Split
Key Advantages
- Floating in water
- Suitable for food defrosting
- Maintenance-free design
- Easy to clean
- High load capacity (up to 1.2 tons/sqm)
Applications
- Food Industry Applications
- MeatPoultrySea FoodBakerySnack FoodFruit & Vegetables
- Non-Food Industry Applications
- AutomotiveTire manufacturingPackagingPrinting/PaperPostalCorrugated cardboardCan manufacturingPET manufacturingTextile
