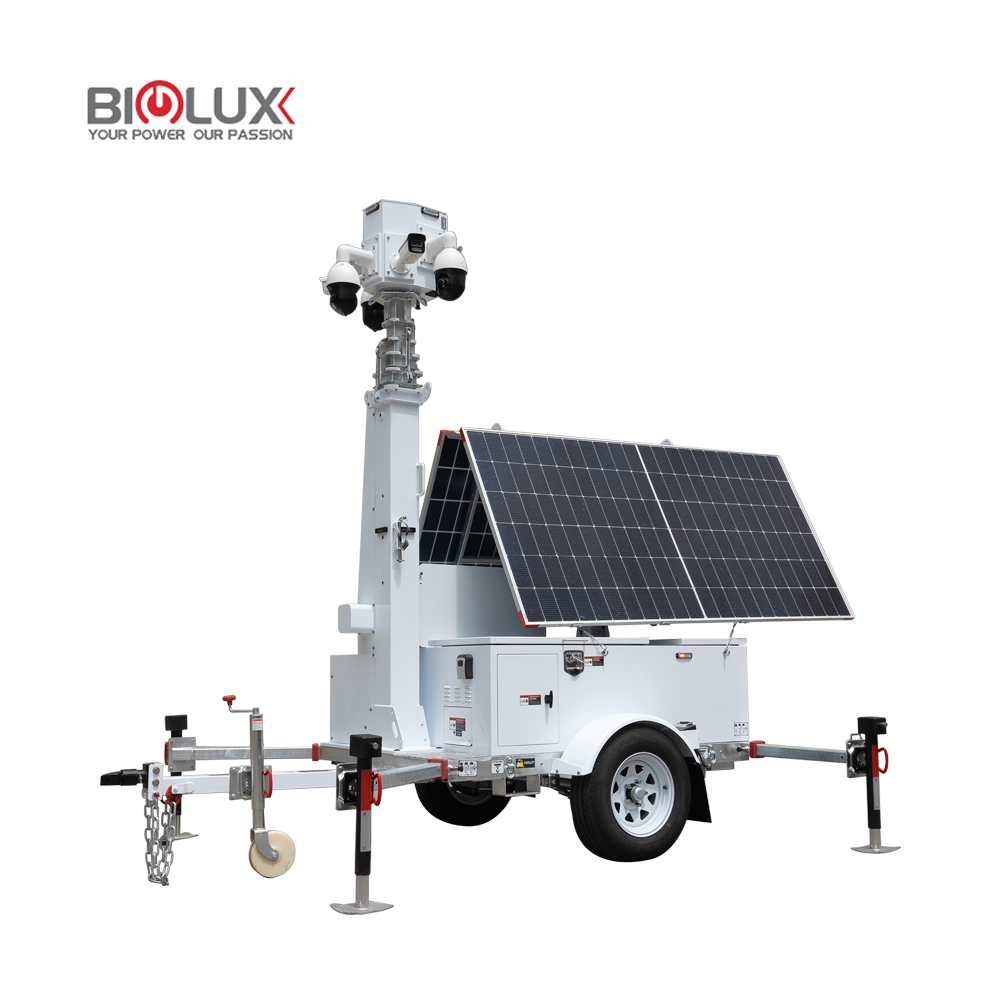

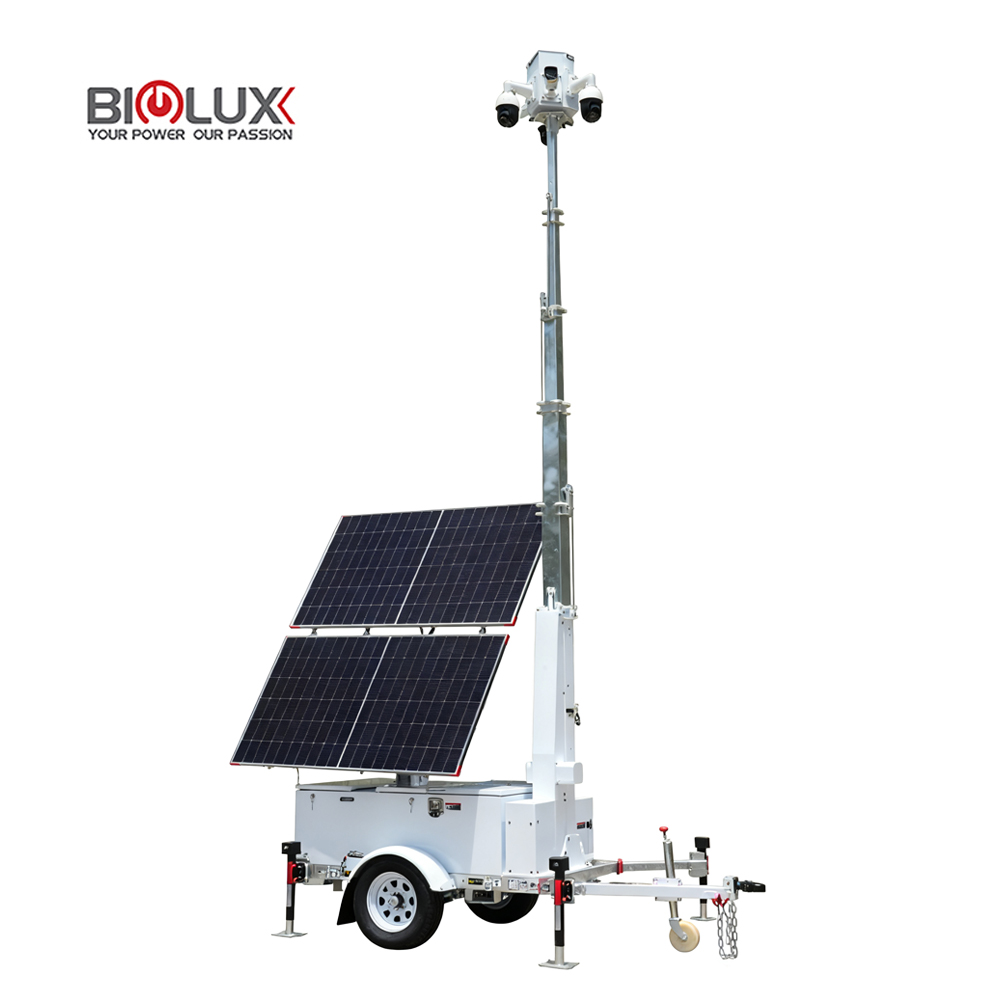

Mobile Solar Surveillance Trailer with 4G Camera
This mobile solar surveillance trailer provides a remote security solution with 24/7 monitoring. It features solar panels, a high-capacity battery, a telescopic mast, and a 360° rotatable CCTV box for flexible deployment.
Technical Specifications
Overview
Mobile Solar Surveillance Solution

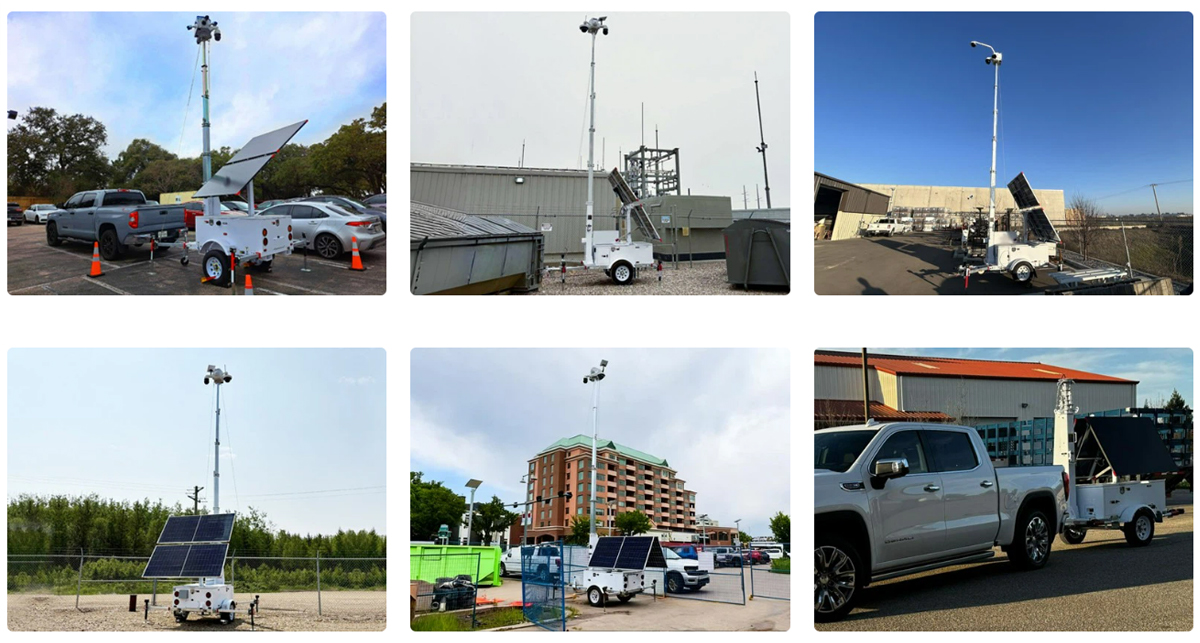

This mobile solar surveillance trailer provides a fully off-grid, 24/7 security solution designed for rapid deployment in remote or temporary locations. Engineered for durability, it features a hot-dip galvanized, weather-resistant structure with an integrated telescopic mast and high-capacity solar power system. It is an ideal choice for construction sites, event security, and traffic monitoring where grid power is unavailable.
Power System
Solar Panel Configuration
1,200 W
Max Power Output
180 degrees
Rotation
Battery Storage Options
- GEL: 9600Wh / 12000Wh
- LFP: 8038Wh / 14336Wh
- MPPT Controller
- 50A/45A with Remote Battery Monitoring

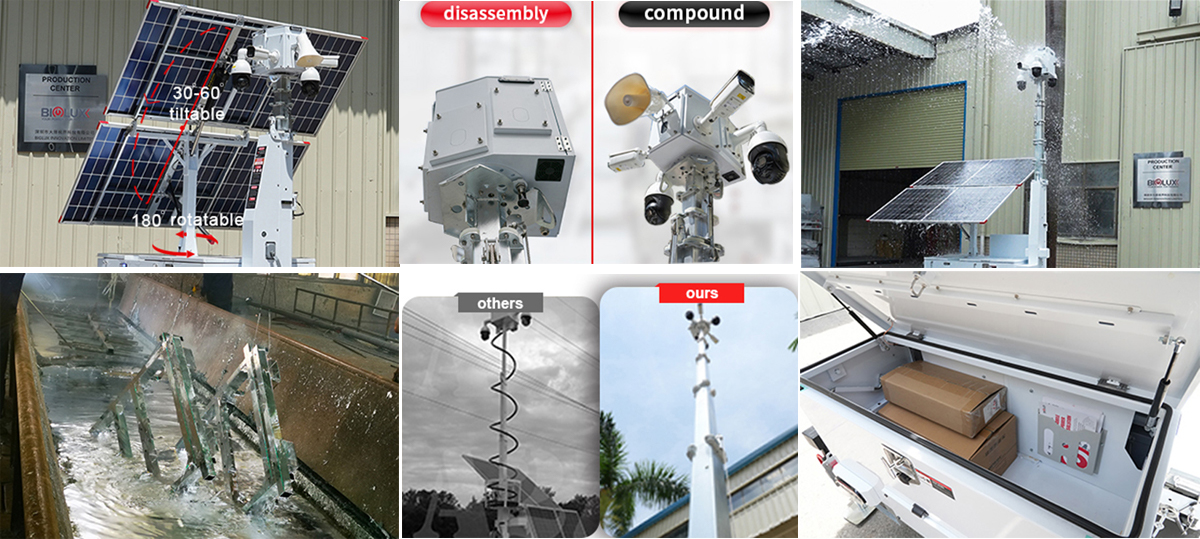

Surveillance & Mast
- Telescopic Mast Height
- 6.5m / 8.5m / 9m
- CCTV Box Features
- 350° Rotation6-Sided StructureInternal Cooling Fan4 Strobe LightsPOE Switch Included
- Camera Capacity
- 6 units
Construction & Durability
Durability Rating
IP65 WaterproofHot-Dip Galvanized
- Operating Temperature
- -20°C to 55°C
Logistics & Deployment
Trailer & Mobility Features
- Single Axle
- Foldable Tow Bar
- Forklift Holes
- Lift Rings
- 4x Manual Y-Shape Outriggers
Container Shipping Capacity
| Container Type | Capacity |
|---|---|
| 20GP | 6 units |
| 40HQ | 14 units |
