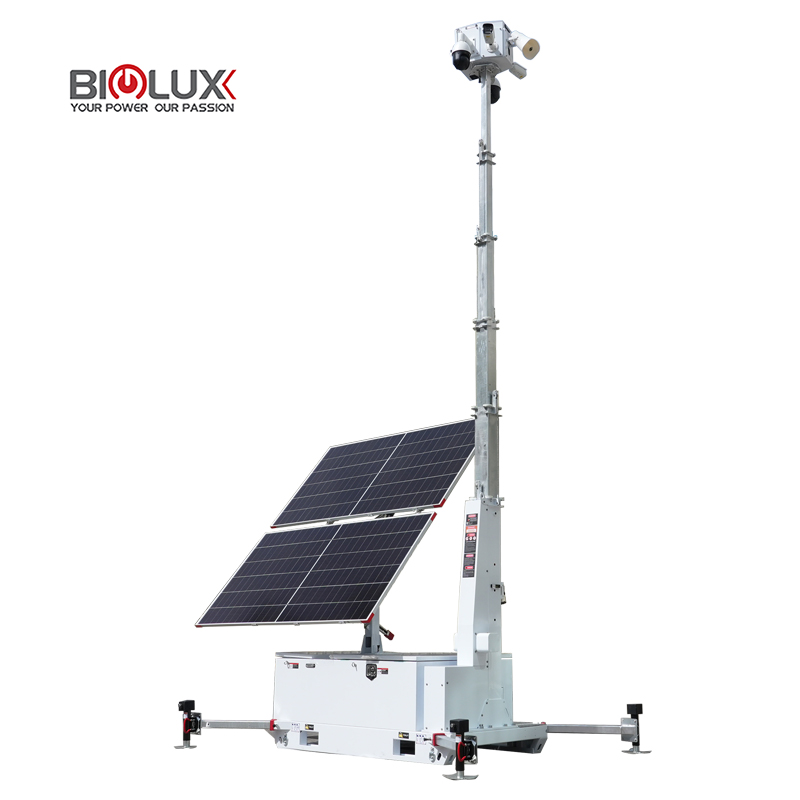

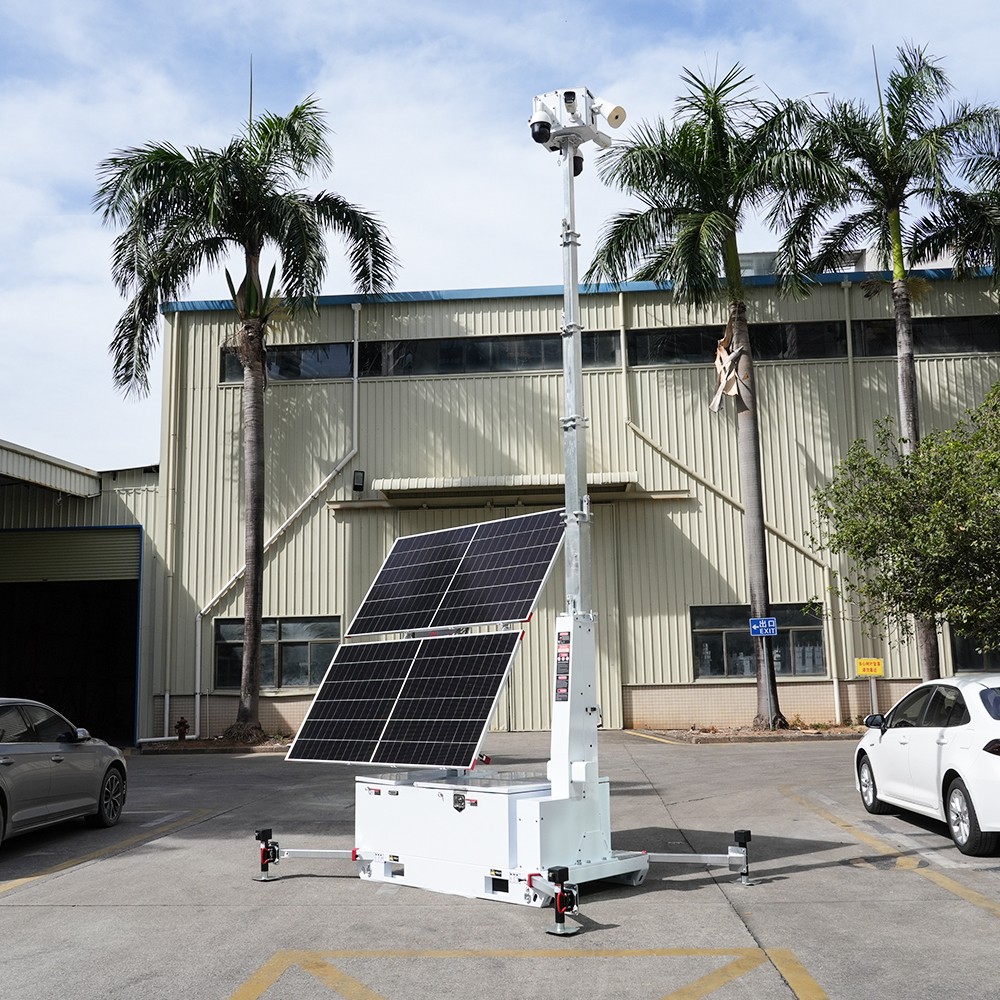

Mobile Solar Security Camera Tower with Skid Base
This mobile solar security camera tower features a skid base for easy relocation and rapid deployment. It provides 24/7 grid-free surveillance for remote sites, construction zones, and emergency scenarios.
Technical Specifications
Overview
Mobile Solar Surveillance Solution
This skid-mounted, mobile off-grid solar CCTV tower is designed for remote and temporary security monitoring. It integrates high-efficiency solar panels, high-capacity battery storage, a telescopic mast, and a dedicated CCTV box with an 8-port POE switch. Featuring a terrain-adaptive skid base, it enables rapid deployment and flexible relocation, delivering 24/7 grid-free surveillance for remote sites, construction zones, and emergency scenarios.
Power & Energy
Solar Panel Configuration
1,200 W
Max Power Output
180 deg
Rotation
Battery Capacity Options
- GEL: 9600Wh or 12000Wh
- LFP: 8038Wh or 14336Wh
- Estimated Charging Time
- 10 hours
Surveillance & CCTV
- CCTV Box Capabilities
- 8-Port POE Switch350° Rotation6-Sided StructureRemovable Mounting PlateCooling FanStrobe Lights
Structure & Durability
Telescopic Mast Height
6.5m (Manual)8.5m (Electric)
- Environmental Protection
- IP65 Waterproof
- Construction Materials
- Hot-dip galvanized steel with internal wiring protection

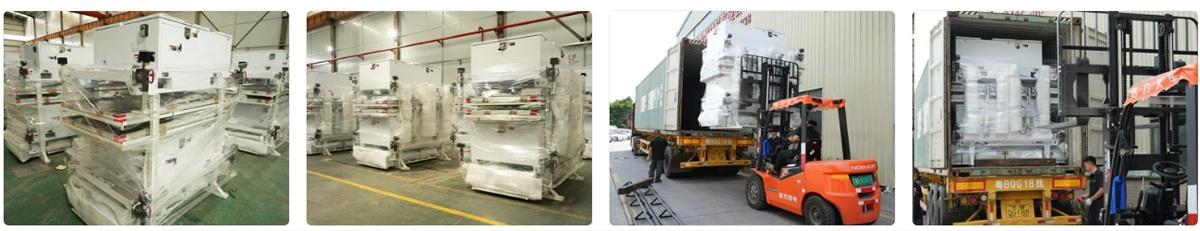

Logistics & Deployment
Dimensions & Weight
| Metric | Standard | Extended |
|---|---|---|
| Retracted Dimensions | 3522*1630*2880mm | 4037*1630*3100mm |
| Extended Dimensions | 3522*3246*7232mm | 4037*3246*9350mm |
| Gross Weight | 1000KG | 1100KG |
- Container Loading Capacity
- 20GP: 6 units, 40HQ: 14 units
Applications
- Ideal Application Scenarios
- Construction SitesMining & Oil SitesParking LotsEmergency ResponseTemporary SecurityTraffic MonitoringEvent Security
