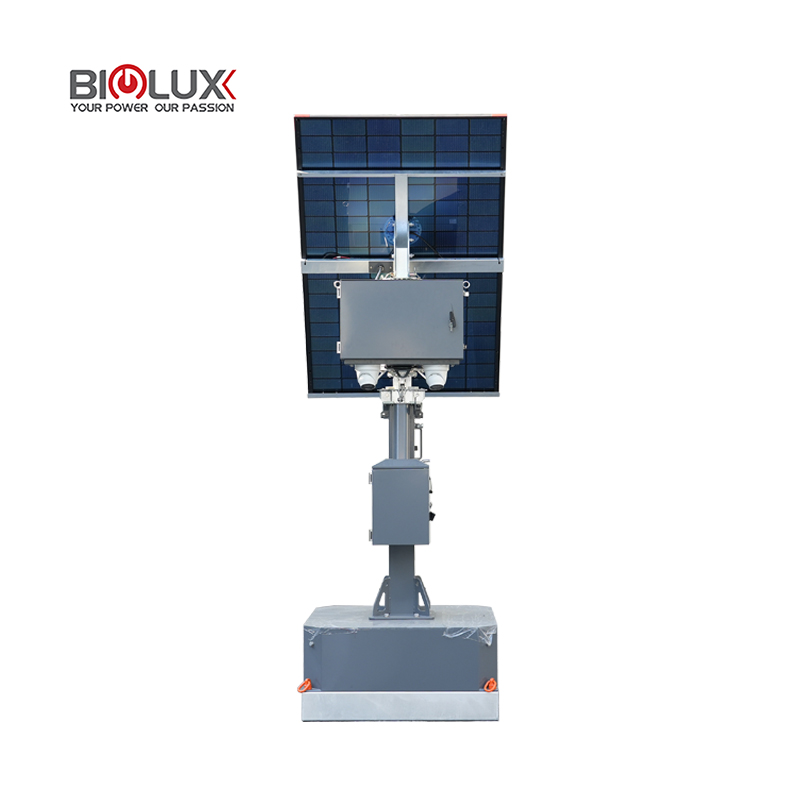

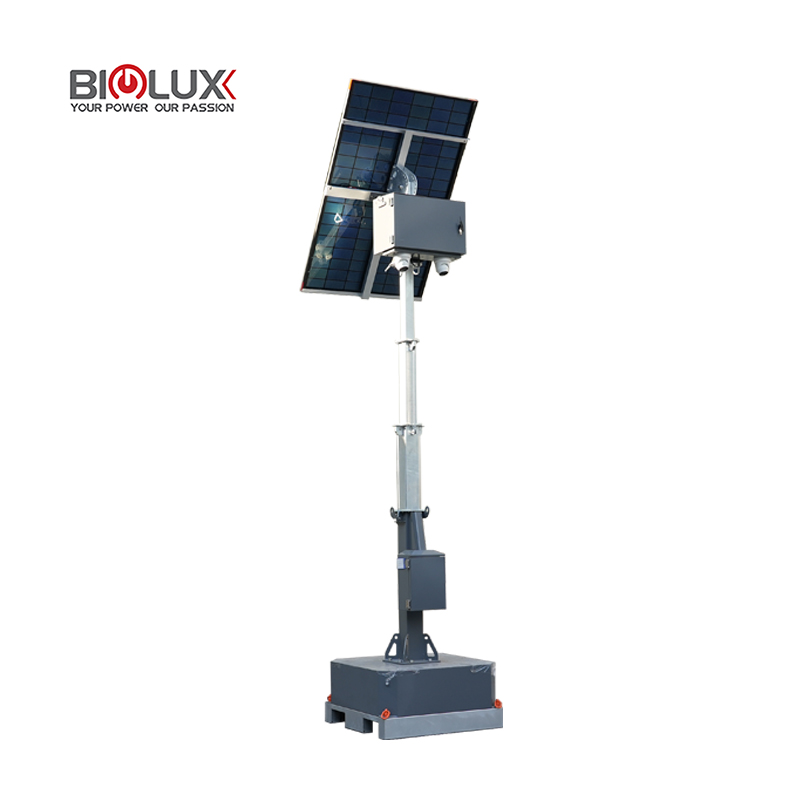

Mobile Solar CCTV Tower with Telescopic Mast
This mobile solar CCTV tower provides a self-contained security solution powered by solar energy. It features a telescopic mast for adjustable camera height and is designed for remote locations or areas where grid power is unavailable.
Technical Specifications
Overview
Mobile Solar Surveillance Solution
This compact, mobile off-grid solar CCTV tower is engineered for temporary security deployment in remote or infrastructure-limited locations. It integrates a high-efficiency 450W bifacial solar panel, a robust LFP battery system, and a 3.5m hot-dip galvanized telescopic mast for elevated monitoring. Designed for rapid relocation via forklift or lifting rings, this solution provides reliable, autonomous surveillance for construction sites, events, and rental applications.
Power System
Battery Capacity Options
2560Wh4019Wh
- Solar Panel Power
- 450 W
- MPPT Controller
- 20A or 150/35A (with remote monitoring)
Mast & Deployment
- Telescopic Mast Height
- 3.5 m
- Mast Material
- Hot-dip galvanized steel
- Deployment Features
- Forklift-compatible4 Lifting RingsManual WinchHollow fillable base
Performance Metrics
Performance Overview
72 hours
Runtime
4.8 hours
Min Charge Time
360 kg
Base Weight
Technical Specifications
Detailed Specifications
| Feature | Model A | Model B |
|---|---|---|
| Battery Capacity | 2560Wh | 4019Wh |
| Weight | 360kg | 470kg |
| 8-Port POE | No | Yes |

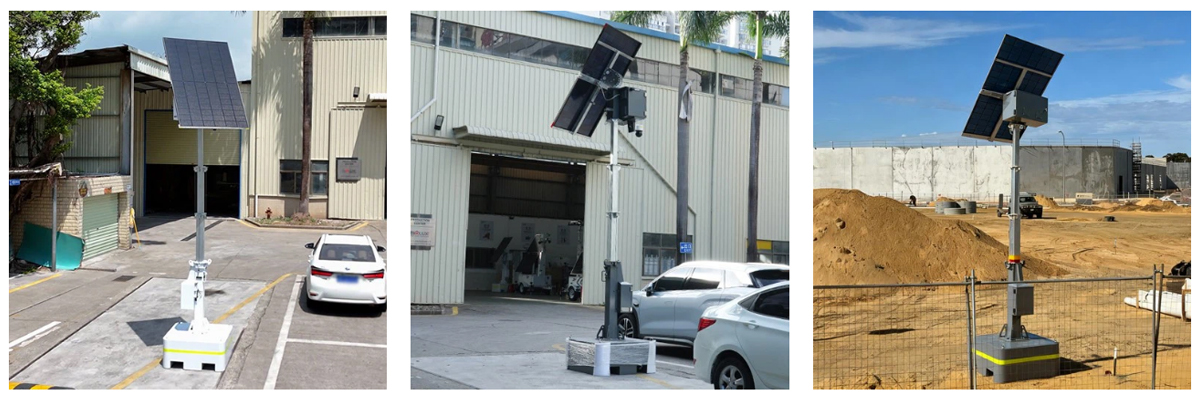

Applications
Recommended Use Cases
- Construction Sites
- Outdoor Parking Lots
- Mining & Oil Sites
- Emergency Response
- Temporary Events
- Rental Fleets
