Mobile Ozone Disinfection Unit for Bed Sanitation

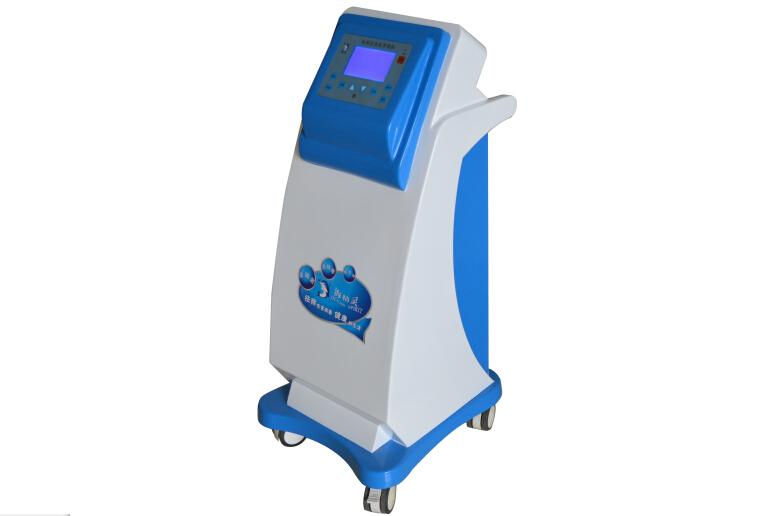

This mobile ozone disinfection unit uses ozone technology for effective sanitation. Its wheeled base and user-friendly control panel ensure convenient operation in healthcare and hospitality settings.
Technical Specifications
Product Overview
Advanced Bed Sanitation Solution
This mobile ozone disinfection unit utilizes high-concentration ozone generation and air pump pressurization technology to effectively sanitize bedding, pillows, and mattresses. Designed for medical and hospitality environments, it ensures thorough disinfection by penetrating materials in a semi-closed environment to eliminate pathogenic microorganisms. The system features automated cycles including vacuuming, disinfection, maintenance, and air analysis to guarantee residue-free, safe, and reliable operation.
Key Features
Operational Features
- One-button automated operation (Vacuum-Disinfection-Maintain-Analysis)
- High-penetration vacuum technology for zero dead-end disinfection
- Ozone residue analysis for safety
- Dual control system (Touch screen and Infrared remote)
- Integrated hidden accessory storage box
- Ozone generator fault alarm system
Performance Metrics
Performance Metrics
5 g/h
Ozone Production
55 dB
Noise Level
240 W
Input Power
Disinfection Efficacy
| Pathogen | Kill Rate |
|---|---|
| E. coli | ≥99.9% |
| Staphylococcus aureus | ≥99.9% |
| Candida albicans | ≥99.9% |
Technical Specifications
- Electrical Requirements
- 198 ~ 242V / 50HZ
- Unit Dimensions (L x W x H)
- 420 x 480 x 1020 mm
- Weight
- 35 kg
- Disinfection Cycle Time
- 20 ~ 40 min
- Included Accessories
- Ozone gas pipe (2.0m)Disinfection bed cover (1800 x 2800m)Infrared remote control
Logistics & Warranty
- Warranty Period
- 1 year
- Packaging Dimensions
- 520 x 490 x 1085 mm
