Technical Specifications
Product Overview

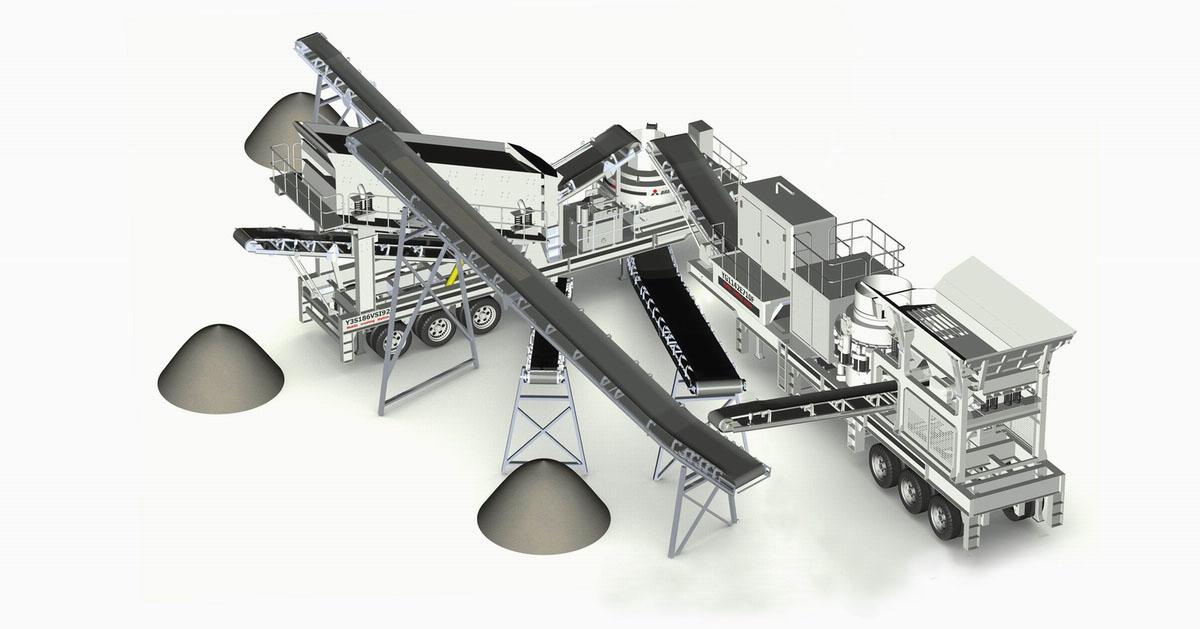

Mobile Multistage Crushing and Screening Station
This tyre-mounted, multistage mobile crusher station is a versatile solution designed for mining, quarrying, and construction waste recycling. It integrates a primary and secondary crusher, feeder, and vibrating screen into a single portable unit, allowing for efficient on-site material processing. The system features a robust, easy-to-maintain design suitable for rugged road conditions and rapid deployment at project sites.
Key Features
- Suitable Applications
- MiningConstruction Waste RecyclingRoad ConstructionBridge ConstructionCement IndustryUrban Infrastructure
Technical Specifications
Physical Dimensions
15,200 mm
Length
2,900 mm
Width
4,350 mm
Height
45 t
Weight
Crushing and Screening Components
| Component | Model |
|---|---|
| Primary Crusher | PE400×600 |
| Secondary Crusher | PYB900 |
| Vibrating Feeder | GZD960×3800 |
| Vibrating Screen | 3YZS1237 |
Conveyor Specifications
- Belt conveyor above screen: B500×14M
- Belt under vibrating screen: B650×6M
- Main belt conveyor: B650×9M
- Double side-opening belt conveyor: B500×4M
