Mobile Lighting Tower with Extendable Mast
This mobile lighting tower provides temporary lighting solutions for various applications. It features a telescopic mast for adjustable height and powerful lamps for wide area illumination.
Technical Specifications
Product Overview
High-Performance Mobile Lighting Towers

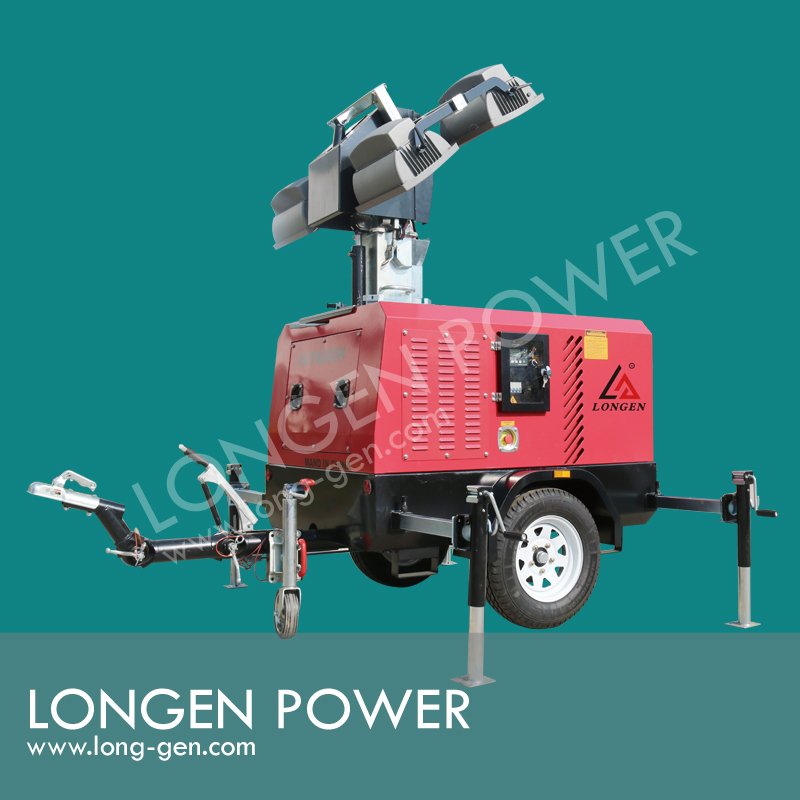

These mobile lighting towers are engineered for demanding environments, including mining operations, construction sites, and emergency response scenarios. Designed for maximum efficiency and portability, the units feature a heavy-duty, telescopic mast that extends up to 9 meters with 360-degree rotation capabilities. Each system is equipped with robust diesel power and automated controls, ensuring reliable, continuous illumination even in remote locations.
Key Features
- Operational Highlights
- Telescopic Mast360° Hydraulic RotationDawn & Dusk Sensor24-Hour Fuel TankRCD ProtectionForklift SlotsCrane Lifting Hook
Technical Specifications
Model Comparison
| Model | Mast Height (m) | Total Output (kW) | Gross Weight (kg) |
|---|---|---|---|
| LGLP-9-6H | 9 | 9 | 2,150 |
| LGLP-7.5-6H | 7.5 | 7 | 1,370 |
| LGLPV-9-4H | 9 | 9 | 1,240 |
Engine Performance
1,500 RPM
Engine Speed
230 g/kw.h
Fuel Consumption
13 kW
Max Engine Power
Lighting System
Light Configuration
- LED or Metal Halide options
- 120-degree hydraulic light rotation
- 4 or 6 light configurations available
- Total light output: 1600W to 6000W
Transportation & Safety
Safety and Mobility
Hydraulic Disc Brakes50mm Tow HitchIP23 Protection GradeInternal/External Maintenance Lights
