Mobile Jaw Crushing Plant
The jaw mobile crushing station features a high-performance jaw crusher, truck feeder, and optional vibrating screen. Designed for diverse mobile crushing scenarios, it eliminates operational barriers, reduces material handling costs, and offers flexible combination options for various material types and sizes.
Technical Specifications
Overview
High-Efficiency Mobile Jaw Crushing Plant
This mobile jaw crushing plant is designed for versatile primary crushing applications in mining, quarrying, and construction. Featuring a robust jaw crusher mounted on a heavy-duty chassis, it offers excellent mobility, quick setup, and the ability to handle large feed sizes with high reduction ratios. The system includes an integrated vibrating feeder and discharge conveyor for consistent material flow, ensuring high throughput and reliable operation in demanding environments.
Technical Specifications

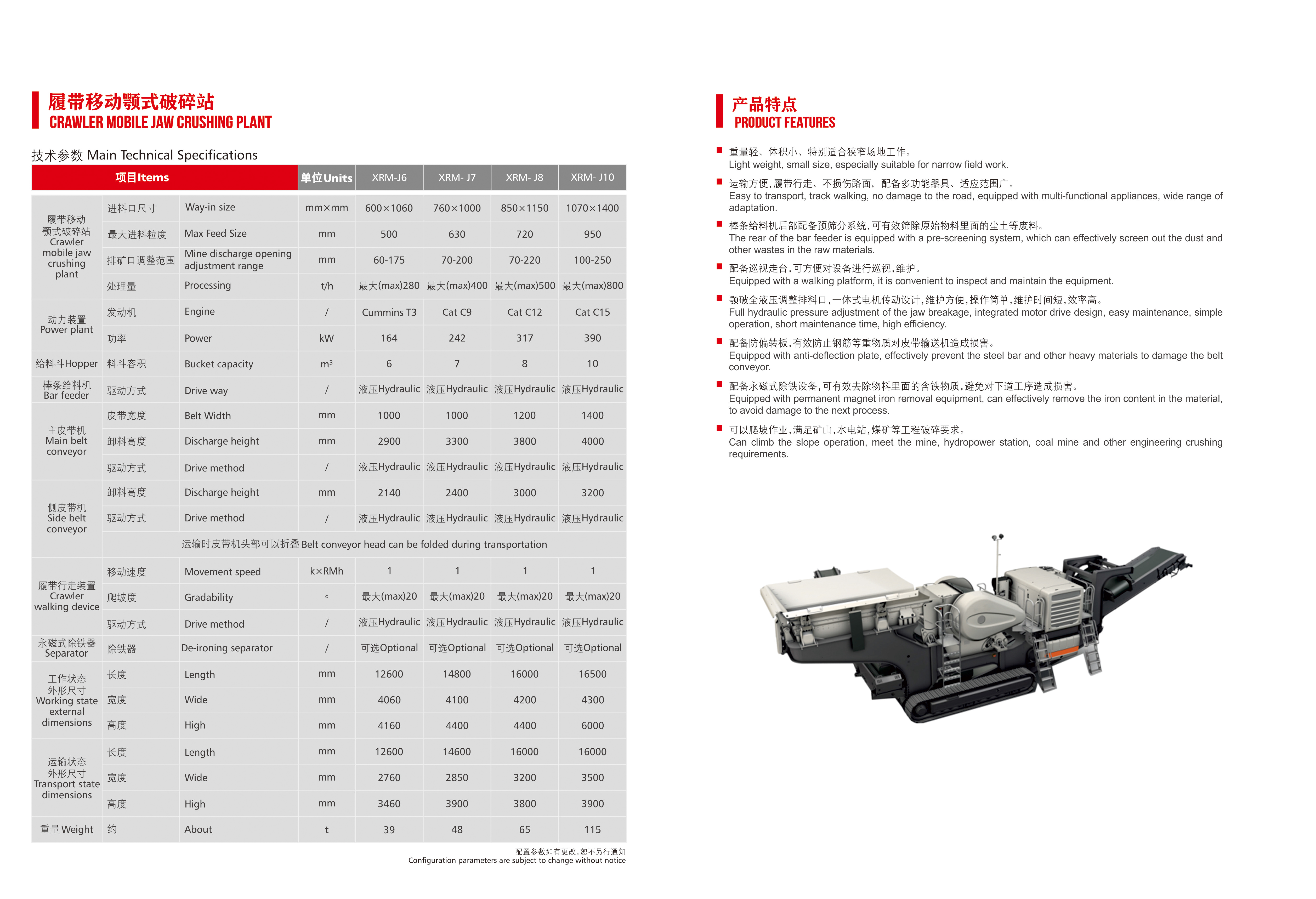

Main Technical Specifications
| Item | XRM-J6 | XRM-J7 | XRM-J8 | XRM-J10 |
|---|---|---|---|---|
| Max Feed Size (mm) | 500 | 630 | 720 | 950 |
| Processing Capacity (t/h) | 280 | 400 | 500 | 800 |
| Engine Type | Cummins T3 | Cat C9 | Cat C12 | Cat C15 |
| Power (kW) | 164 | 242 | 317 | 390 |
| Weight (t) | 39 | 48 | 65 | 115 |
- Discharge Opening Adjustment Range
- 60-175 mm (J6)70-200 mm (J7)70-220 mm (J8)100-250 mm (J10)
Key Features
Key Features
- Compact and lightweight design suitable for narrow field operations
- Full hydraulic pressure adjustment for jaw crusher
- Pre-screening system on bar feeder to remove dust and waste
- Integrated permanent magnet iron removal equipment
- Anti-deflection plate to protect belt conveyor
- Slope operation capability for mining and hydropower projects
