Technical Specifications
Product Overview

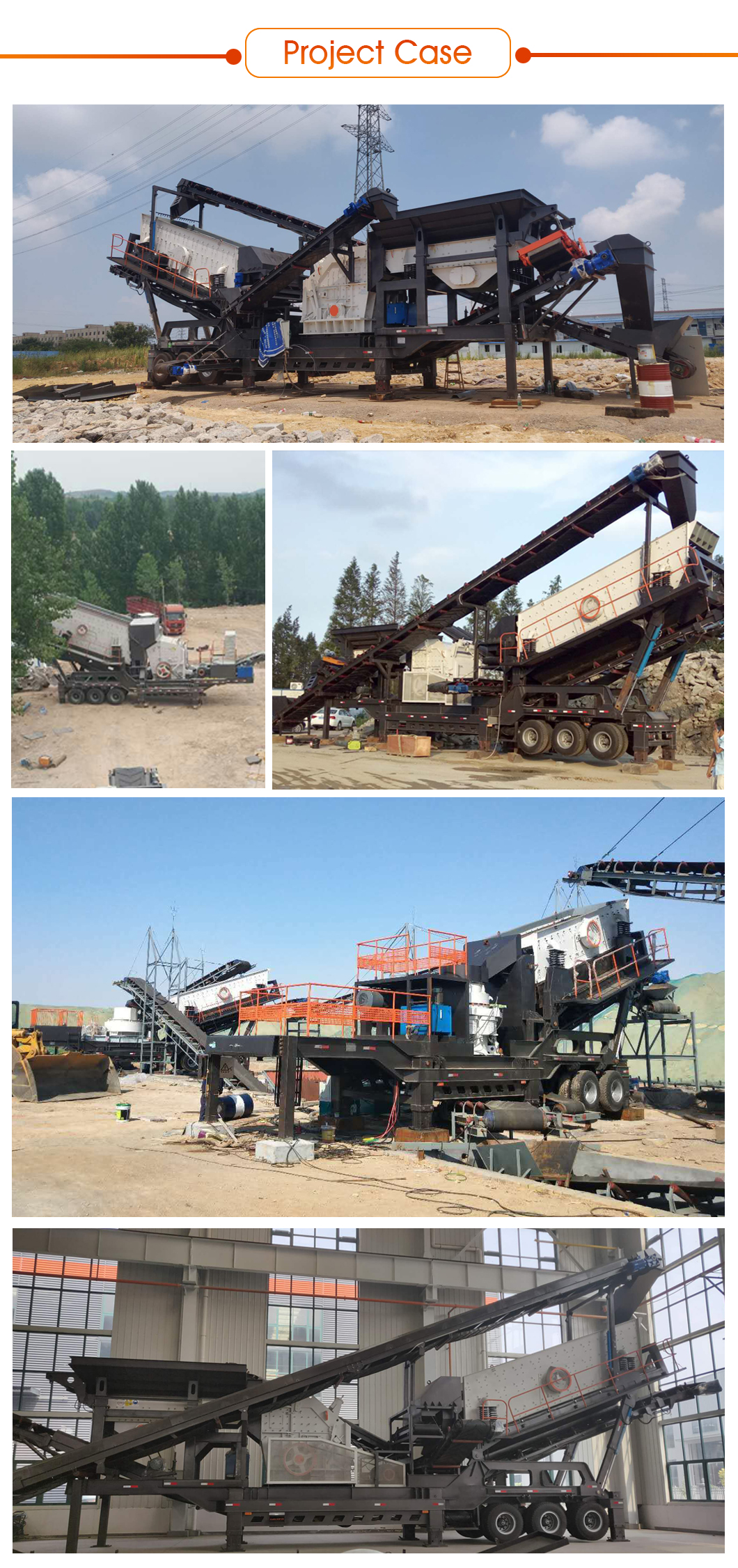

Mobile Jaw Crushing Station
The mobile jaw crushing station is a versatile solution designed for high-performance crushing in various environments. By integrating a jaw crusher, truck feeder, and optional vibrating screen onto a mobile platform, it significantly reduces material handling costs and setup time. Its flexible configuration allows operators to adapt to different raw material types and finished product requirements, providing a simple, efficient, and low-cost rock crushing system.
Performance Metrics
Capacity Range
10 m³/h
Minimum Capacity
240 m³/h
Maximum Capacity
Technical Specifications
Detailed Technical Parameters
| Model | Weight (kg) | Capacity (m³/h) | Discharge Port (mm) |
|---|---|---|---|
| XRM-J600 | 15,240 | 10-35 | 40-100 |
| XRM-J750 | 22,000 | 25-60 | 50-100 |
| XRM-J900 | 32,270 | 30-85 | 65-180 |
| XRM-J1060 | 57,880 | 70-150 | 80-180 |
| XRM-J1200 | 98,000 | 100-240 | 95-225 |
Equipment Features
- Key Features
- High MobilityAdjustable DischargeIntegrated FeederFlexible ConfigurationHeavy-Duty Construction
