Mobile Jaw Crusher Plant
The mobile jaw crusher plant is a self-contained crushing station with a wide range and strong mobile crushing capacity. It is designed to reduce costs for customers in metallurgy, chemical industry, building materials, and other industries.
Technical Specifications
Product Overview
Mobile Jaw Crushing Power

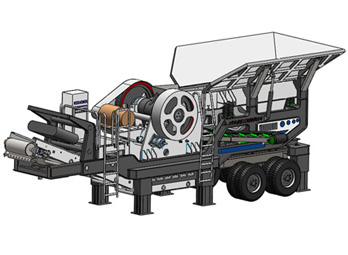

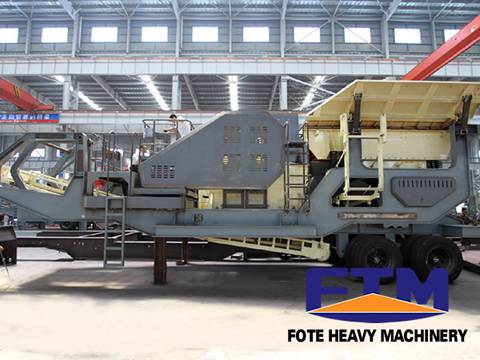

This tire-mounted mobile jaw crushing plant is a highly flexible, self-contained solution designed for efficient on-site material processing in mining, metallurgy, and construction. Engineered for mobility, it features a short wheelbase and small turning radius, allowing it to navigate rugged terrain with ease. The system integrates feeding, crushing, and screening, significantly reducing material transportation costs while maintaining high productivity across various industrial applications.
Key Features
- Advantages
- Mobile ChassisOn-site ProcessingFlexible ConfigurationRugged Terrain CapabilityHydraulic Support Legs
Performance Metrics
Crushing Efficiency
450 t/h
Max Capacity
750 mm
Max Feeding Size
83 t
Maximum Operating Weight
Technical Specifications
Detailed Technical Comparison
| Model | Weight (t) | Capacity (t/h) | Max Feed (mm) |
|---|---|---|---|
| FTM938E69 | 39 | 90-180 | 480 |
| FTM1142E710 | 57 | 110-320 | 630 |
| FTM1349E912 | 83 | 220-450 | 750 |
Operational Details
Available System Configurations
- Two-stage crushing and screening (coarse and fine)
- Three-stage crushing and screening (coarse, general, and fine)
- Standalone crushing operation
