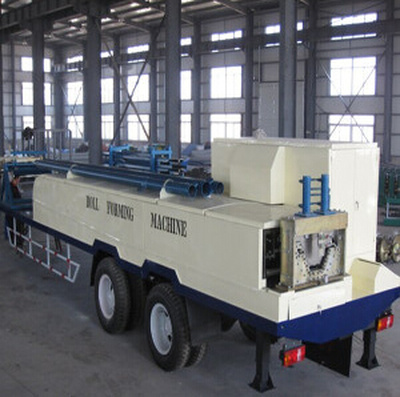

Mobile Arch Sheet Curving and Roll Forming Machine
This mobile machine efficiently curves and roll forms metal sheets into arched shapes. It is widely used for mid-scale and small-scale construction projects.
Technical Specifications
Overview
Mobile On-Site Arch Sheet Production
This mobile arch sheet curving and roll forming machine is designed for direct production at construction sites, effectively lowering logistics and installation costs. It is ideal for mid-scale and small-scale projects including warehouses, gymnasiums, and exhibition centers. Built on a high-quality trailer with car-style axles, it offers superior durability and a longer service life compared to standard straight-shaft alternatives.
Key Performance Metrics
Performance Highlights
10 Ton
Total Weight
66.7 %
Material Usage Rate
610 mm
Effective Width
Technical Specifications
Physical Dimensions
| Parameter | Value |
|---|---|
| Model | BH-914-610 |
| Dimensions | 11690mm x 2230mm x 2300mm |
| Chassis Configuration | Double Axles & 8 Tires |
| Feeding Width | 914mm |
| Groove Depth | 243mm |
Material & Componentry
Material Capabilities
- Processing Thickness: 0.6-1.5mm
- Cutting Blade Material: 12CrMov with Heat Treatment
- Bending Leaf: 10mm thickness, CNC processed
- Compatible Materials: Steel, Aluminum, and Coated Metals

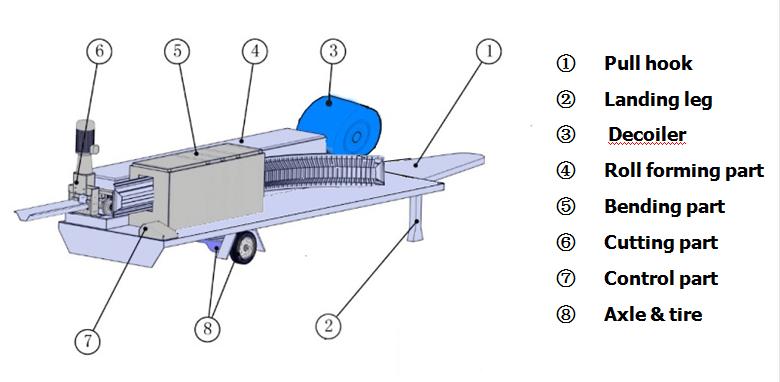

Operational Features
System Features
- Mechanical or Hydraulic Cutting Types
- Integrated Decoiler and Roll Forming stations
- Automated Bending and Curving system
- Trailer-mounted with pull hook and landing legs for stability
Applications
- Suitable Construction Projects
- FactoryWarehouseGarageGymnasiumExhibition CenterCinemaTheatre

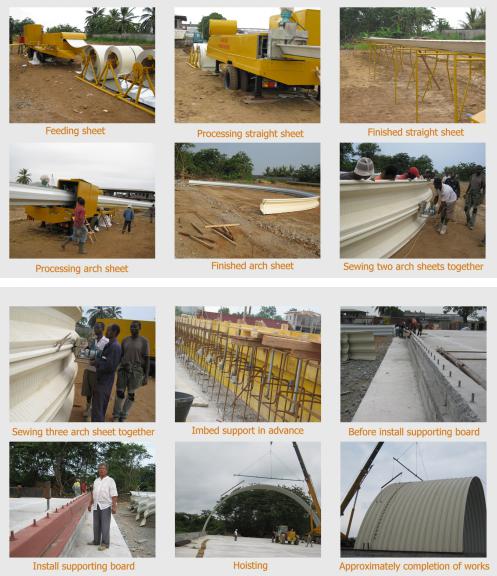

Workflow
Production & Installation Workflow
- Sheet feeding and straight processing

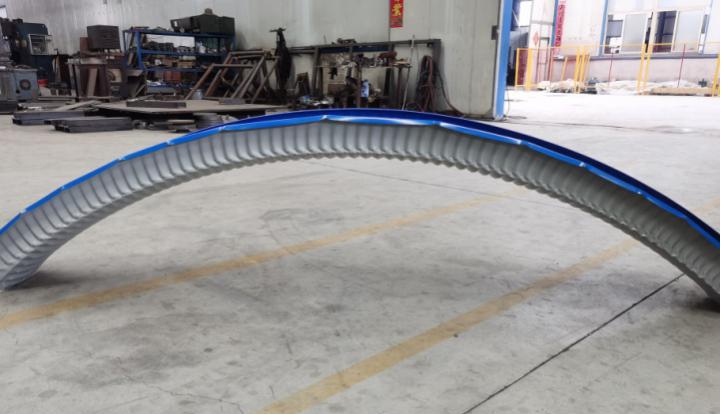

- Arch sheet curving and formation
- Sewing multiple arch sheets together
- Hoisting and installation of self-supporting structures
