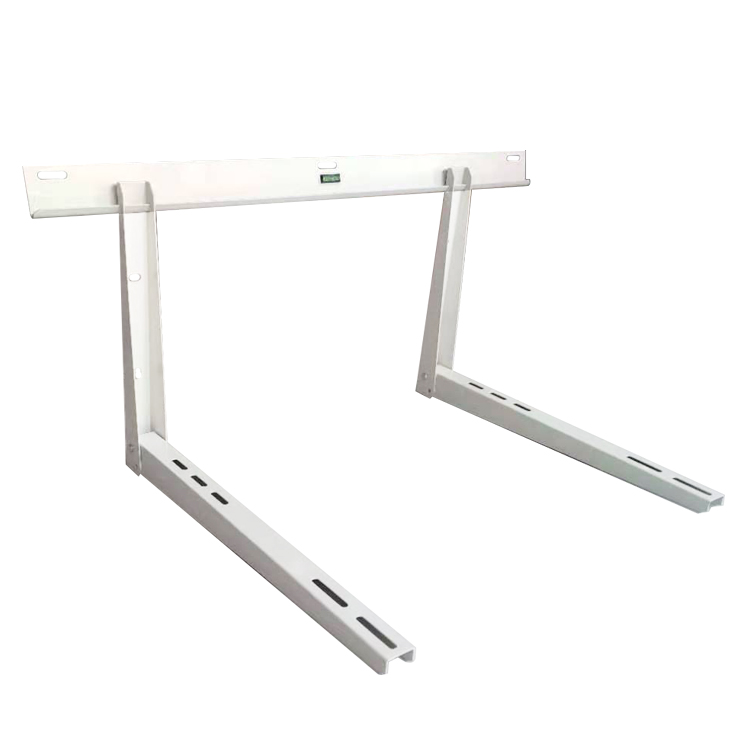

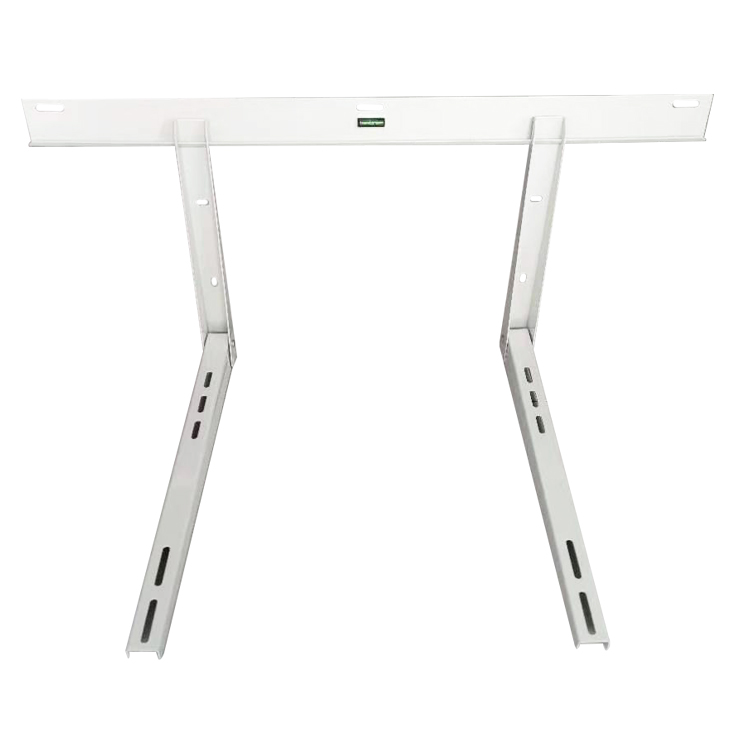

Mini-Split Air Conditioner Wall Mounting Bracket
This heavy-duty metal bracket is designed for wall-mounting mini-split air conditioning units. It provides stable, secure support for the outdoor unit and is compatible with various mini-split models.
Technical Specifications
Product Overview
Heavy-Duty Mini-Split Wall Mounting Solution
This high-quality wall mount bracket is designed for the secure installation of mini-split air conditioner outdoor units. Featuring a robust metal construction with an 'L' groove design, it ensures structural safety while integrated rubber pads minimize vibration and protect exterior walls. The inclusion of a built-in spirit level and adjustable bolts simplifies the installation process for professional HVAC contractors.
Technical Specifications
Model Specifications Table
| Model Code | Bottom Bar (mm) | Vertical Bar (mm) | Cross Bar (mm) | Thickness (mm) | Max Load (kg) |
|---|---|---|---|---|---|
| Y450 | 450 | 400 | 800 | 1.5 | 100 |
| Y500 | 500 | 400 | 800 | 1.5 | 100 |
| Y550 | 550 | 400 | 800 | 1.8 | 150 |
| Y650 | 650 | 450 | 1,000 | 2 | 200 |
Material & Build
- Material Composition
- Cold-rolled SteelZinc-coated SteelHot-dipped Galvanised Steel
- Surface Treatment
- Epoxy resins in polyester for outdoor use (RAL 9002)
Key Features
Safety & Stability Features

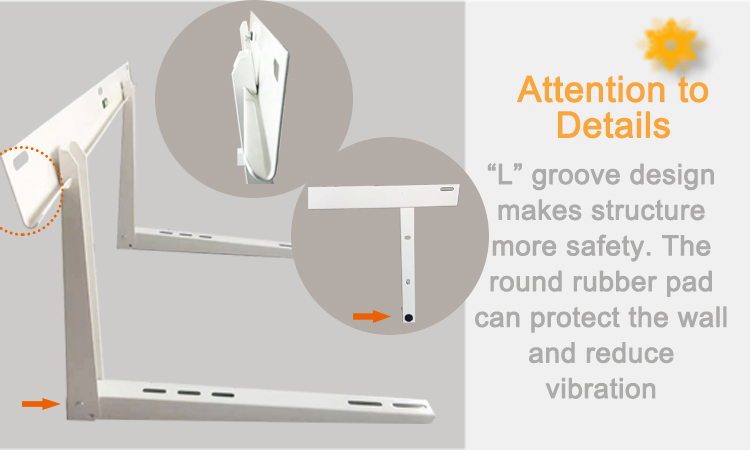

- L-groove design for enhanced structural safety

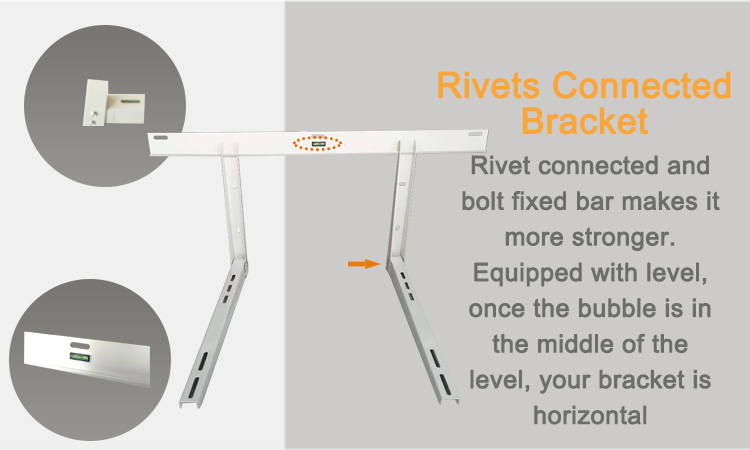

- Rivet-connected and bolt-fixed bars for maximum strength
- Integrated bubble level for precise horizontal alignment
- Round rubber pads for vibration reduction and wall protection
- Included Hardware
- 2 Plastic or Rubber adjustable bolts (M8*42)
Logistics & Packaging
Packaging Details
6 sets
Sets per Outer Carton
420 sets
Sets per Pallet
1,470 kg
Total Pallet Weight
- Individual Carton Size
- 820 x 85 x 60 mm
