Technical Specifications

Overview

Heavy-Duty Adjustable AC Support

This adjustable beam wall mount bracket is engineered for the secure installation of split air conditioner outdoor units. Featuring a robust sliding design connected by rivets, it offers exceptional strength while remaining easy to fold for transport and handling. The integrated vibration dampening system ensures quiet operation and long-term structural integrity for both residential and commercial applications.

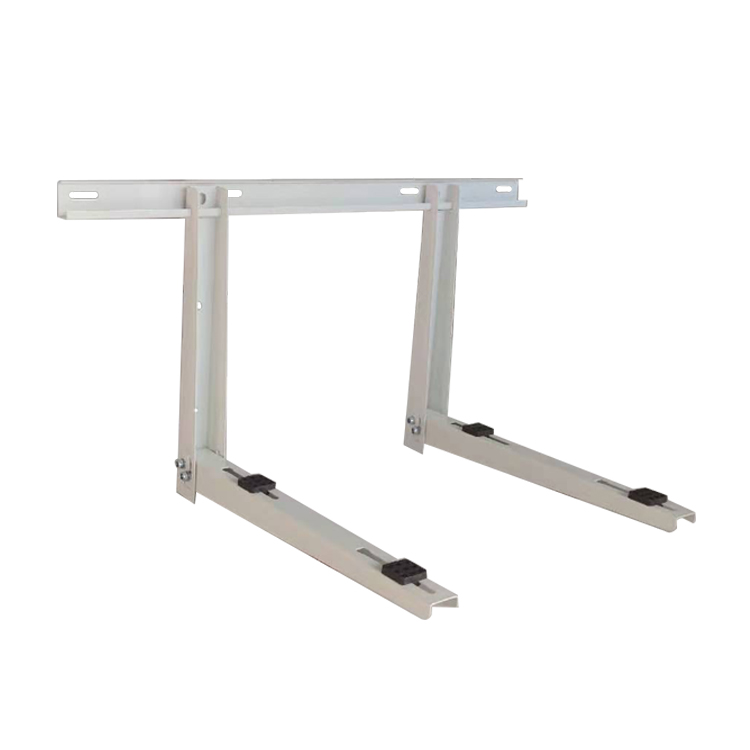

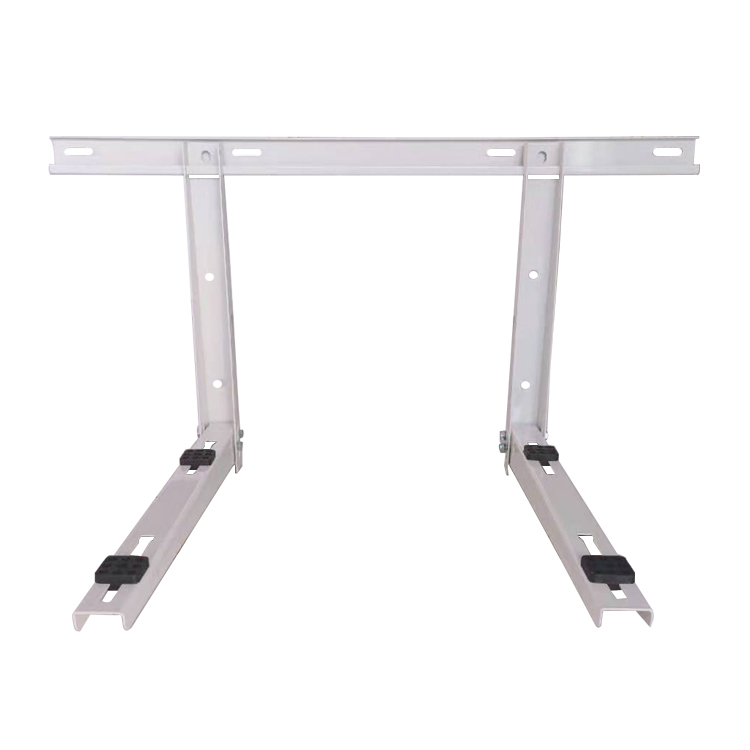

Adjustable beam AC wall mount bracket overview

Technical Specifications

Model Dimensions

Model	Size (Inches)
US450	13.8 x 17.7 x 27.5
US550	17.7 x 21.7 x 33.5
US1000	17.7 x 21.7 x 39.4

Design Features

Structural Design

Rivets connected sliding design for superior strength
Foldable construction for easy storage and portability
“L” groove design for enhanced structural safety
Adjustable beam for flexible unit positioning

Safety & Protection

L-Groove SafetyCorrosion ResistantWall Protection

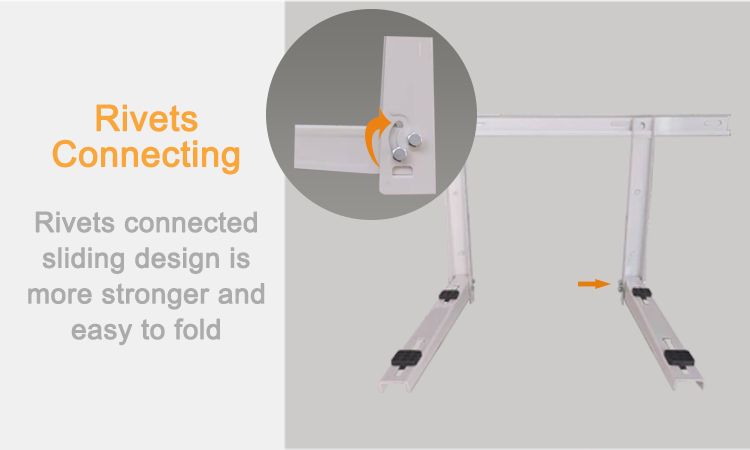

Rivet connected sliding design detail — The rivet-connected sliding design provides high strength and allows the bracket to be easily folded.

Vibration & Noise Control

Vibration Control

Rubber vibration dampers to effectively absorb noise
Round rubber pads to protect wall surfaces
Integrated vibration reduction for stable operation

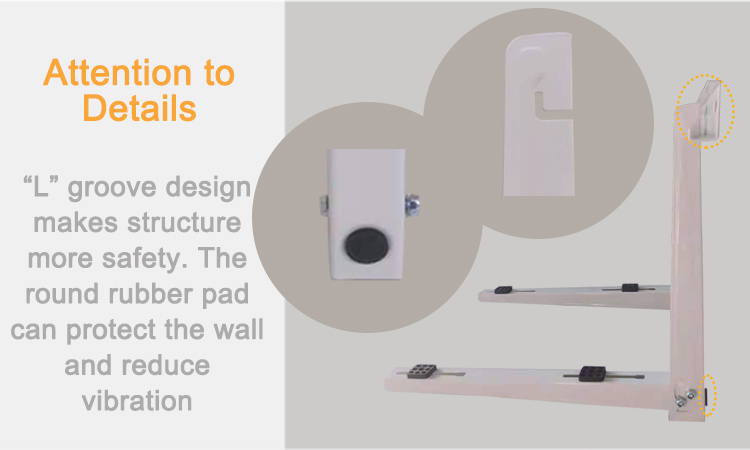

L-groove and rubber pad detail — The 'L' groove design increases safety, while round rubber pads protect the wall from vibration damage.

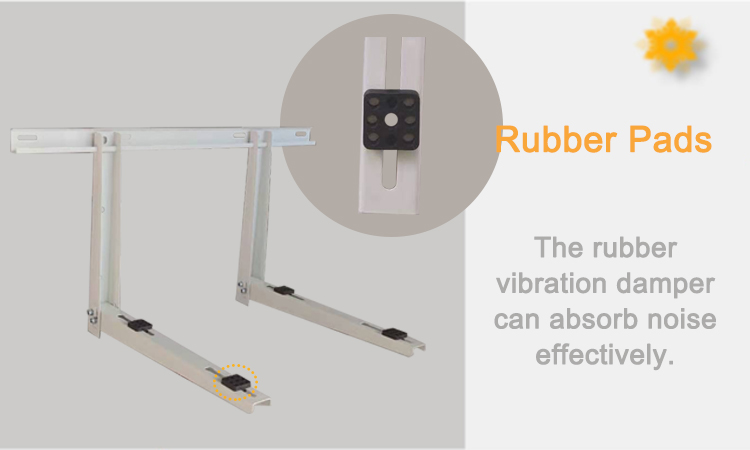

Rubber vibration damper close-up — High-efficiency rubber dampers absorb operational noise and minimize mechanical vibration.

Installation & Application

Application: Split AC UnitsOutdoor UnitsWall MountingResidentialCommercial
