Mini Rice Combine Harvester
The mini rice harvester can complete the whole process of harvesting, conveying, threshing, separating and bagging at one time. The mini rice harvester has compact structure, stable performance, low price, light and flexible operation, and convenient maintenance.




Technical Specifications
Overview
Compact Harvesting Solution

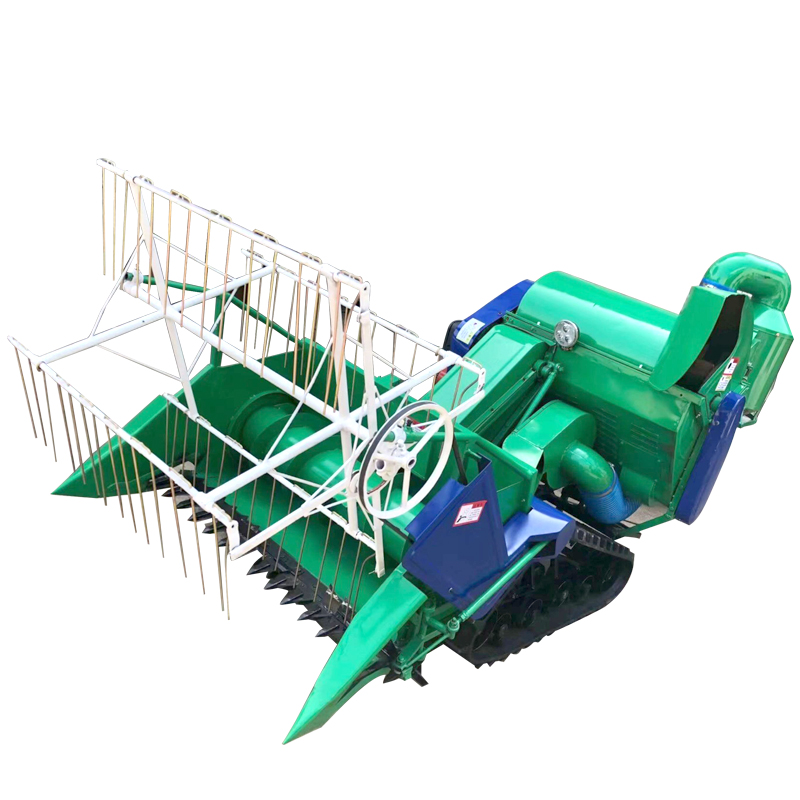

The Mini 4LZ-0.8 Rice Combine Harvester is a comprehensive agricultural solution designed to streamline the harvesting process. This compact machine integrates harvesting, conveying, threshing, separating, and bagging into a single, efficient operation. Engineered for stability and flexibility, it offers low-cost, reliable performance with convenient maintenance requirements for small to medium-sized farms.

Technical Specifications
- Model
- 4LZ-0.8
- Rated Power
- 9.2 KW
- Engine Type
- Air-cooling, four-stroke diesel engine
- Starting Mode
- Electric starter
- Tire/Drive Type
- Triangular crawler
Performance Metrics
- Cutting Width
- 1.2 m
- Loss Ratio
- <3%
- Dirt Percentage
- <7%
- Fuel Consumption
- 13.5 - 22 L/hectare
Dimensions & Weight
- Machine Weight
- 350 kg
- Dimensions (L×W×H)
- 2700mm × 1420mm × 1350mm
- Ground Clearance
- 320 mm
Compliance
- Standards
- DB43/T247-2004DG/T014-2009
