Technical Specifications
Product Overview

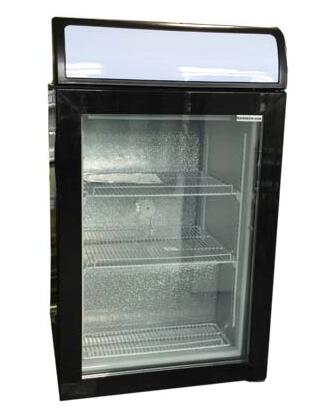

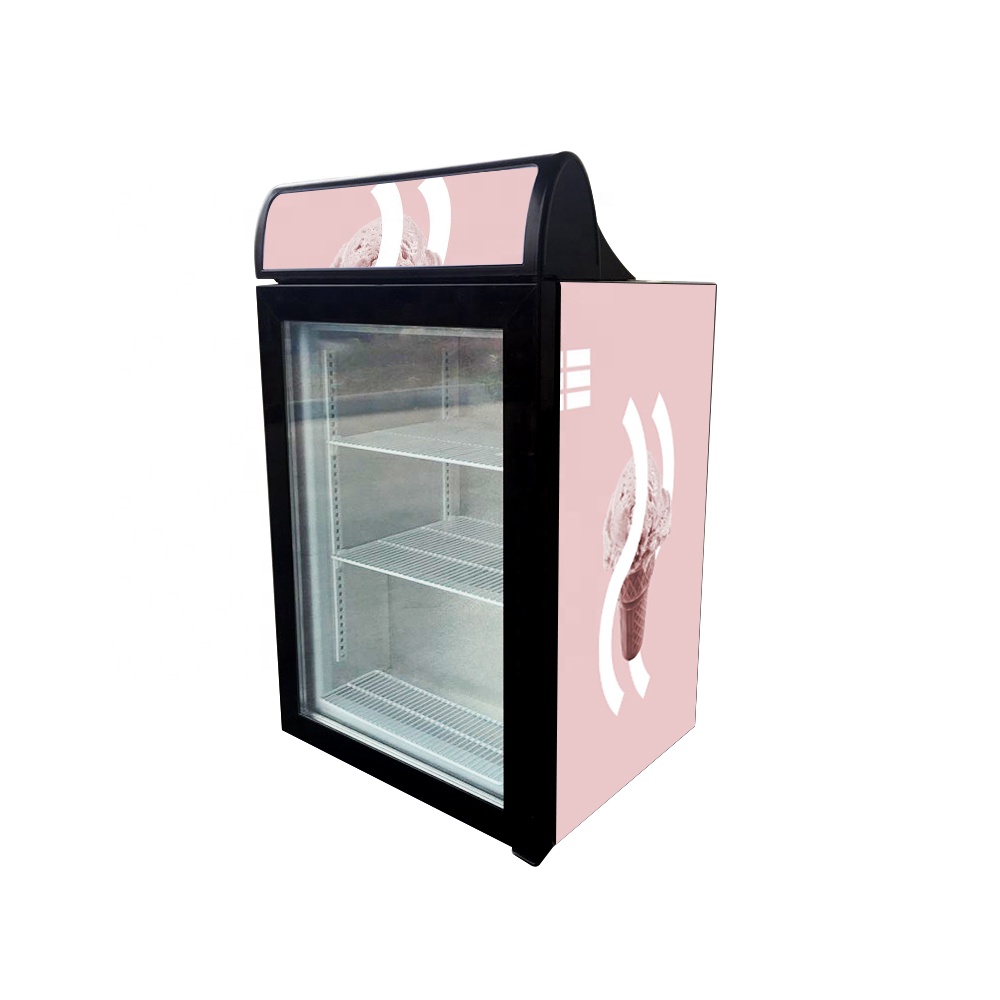

Compact Ice Cream Merchandiser
This mini countertop display freezer is specifically engineered for showcasing ice cream and frozen treats in high-traffic retail environments like cafes, convenience stores, and parlors. Designed with a transparent glass door and interior LED lighting, it maximizes product visibility to drive impulse sales. Its compact footprint ensures it fits seamlessly on countertops while providing reliable, compressor-based direct cooling.
Dimensions & Capacity
Internal Dimensions
| Section | Dimensions (WxDxH) |
|---|---|
| Bottom Section | 453 x 213 x 216 mm |
| Above Section | 453 x 360 x 464 mm |
- Unit Size (WxDxH)
- 595 x 545 x 850 mm
- Weight (Net/Gross)
- 50 / 54 kg
- Carton Size (WxDxH)
- 681 x 591 x 916 mm
Technical Specifications
Power Performance
158 W
Input Power
8 W
Top Light Power
Supported Voltage
- 110V / 60Hz
- 220V-240V / 50Hz
- Cooling System
- Compressor, Direct Cooling
Logistics
Container Load Capacity
| Container Type | Quantity |
|---|---|
| 20ft | 54 |
| 40ft | 120 |
| 40hq | 120 |
