Technical Specifications
Overview
Versatile Safety & Signaling

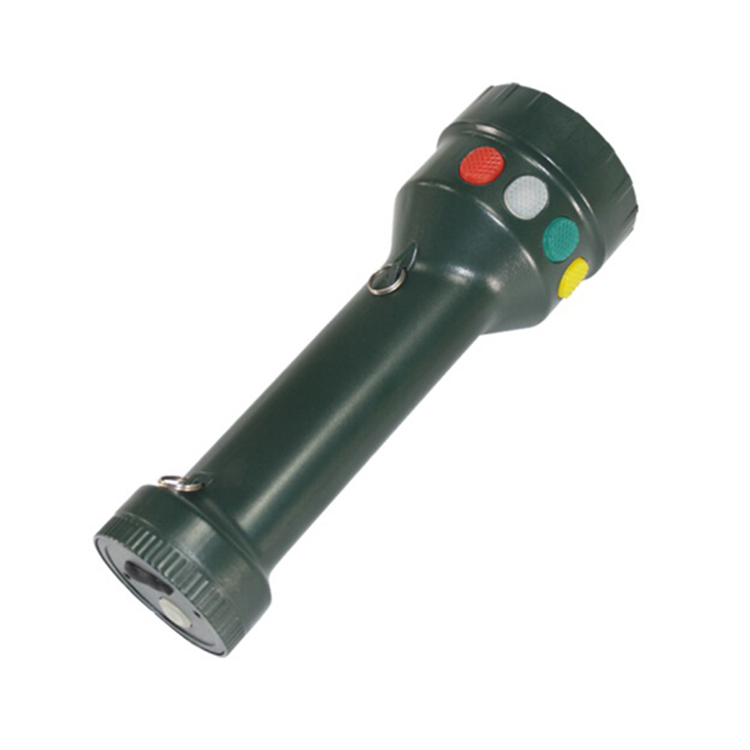

This multi-functional mini 4-color signal light is a compact, high-performance tool designed for critical signaling and illumination tasks. Featuring red, yellow, green, and white light sources, it offers a visible range of over 1,500 meters, ensuring effective communication in diverse environments. Built with durable, impact-resistant materials and an IP67 rating, it is engineered to perform reliably under heavy rain and rugged field conditions.
Technical Specifications
Protection Grade
IP67
- Rated Voltage
- 3.7 V
- Dimensions
- Φ66*185mm
- Weight
- 249 g
- Ex Mark
- Exib IIC T4
Performance
Key Performance Metrics
500 m
Strong Light Range
300 m
Effective Illumination
1,500 m
Signal Visibility
Continuous Runtime
| Light Source | Duration |
|---|---|
| Positive Light | > 12 hours |
| Tail Light | > 50 hours |
- LED Lifespan
- 100000 hours
Features
Key Features
- Programming IC circuit control
- Twist-type switch operation
- Multiple carry options (hand-held, waist, shoulder)
- Impact-resistant bulletproof rubber material
- Discharge protection function
- Intelligent charger with overcharge/short-circuit protection
- Signal Colors
- RedYellowGreenWhite
