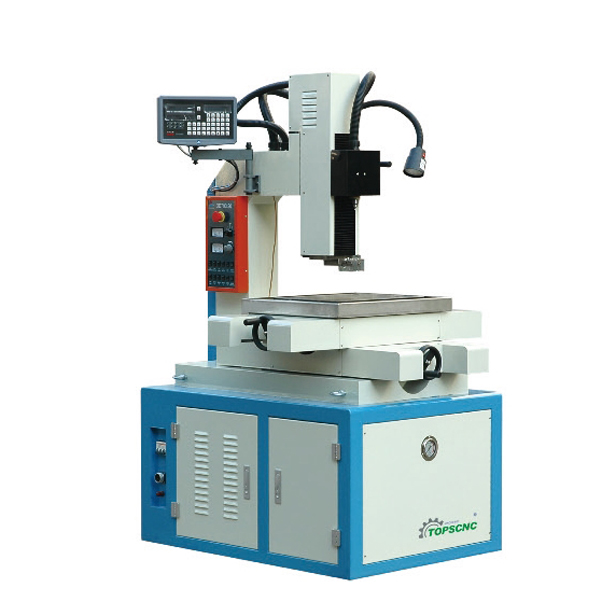

Micro Hole Electrical Discharge Drilling Machine
This micro hole drilling EDM is designed for the precision creation of small holes. It features a CNC control system for automated processes and is suitable for use with metals and alloys.
Technical Specifications
Overview
Precision Micro Hole Drilling
This Micro Hole Electrical Discharge Drilling Machine is engineered for high-precision small-diameter hole drilling across a variety of metals and alloys. Featuring a robust frame and advanced CNC control system, it provides exceptional stability and accuracy for demanding industrial applications. The compact design ensures it is an ideal solution for workshops seeking efficient, repeatable drilling performance within limited space.
Technical Specifications
Performance Parameters
| Parameter | DD703 | DD703.30 | DD703.32 | DD703.40 |
|---|---|---|---|---|
| Worktable Size (mm) | 320x440 | 320x440 | 360x610 | 460x690 |
| Worktable Travel (mm) | 200x300 | 300x400 | 320x400 | 400x500 |
| Z-axis Travel Motor (mm) | 280 | 300 | 300 | 300 |
| Machine Weight (kg) | 700 | 850 | 1300 | 1700 |
Drilling Capabilities
0.3 mm
Min Electrode Diameter
3 mm
Max Electrode Diameter
60 rpm
Main Spindle Speed
Operational Details
- Power Requirements
- 380V, 3Ph, 50Hz
- Max Working Pressure
- 7 Mpa
- Power Consumption
- 3 Kw
- Working Medium
- Water
Service & Warranty
Logistics
- Delivery time: 18-25 days
- Packing: Standard export wooden cases
- Port: Shanghai
- Warranty
- One year after shipment (consumables excluded)
- Support Services
- Field maintenanceField installationVideo technical supportOnline support
